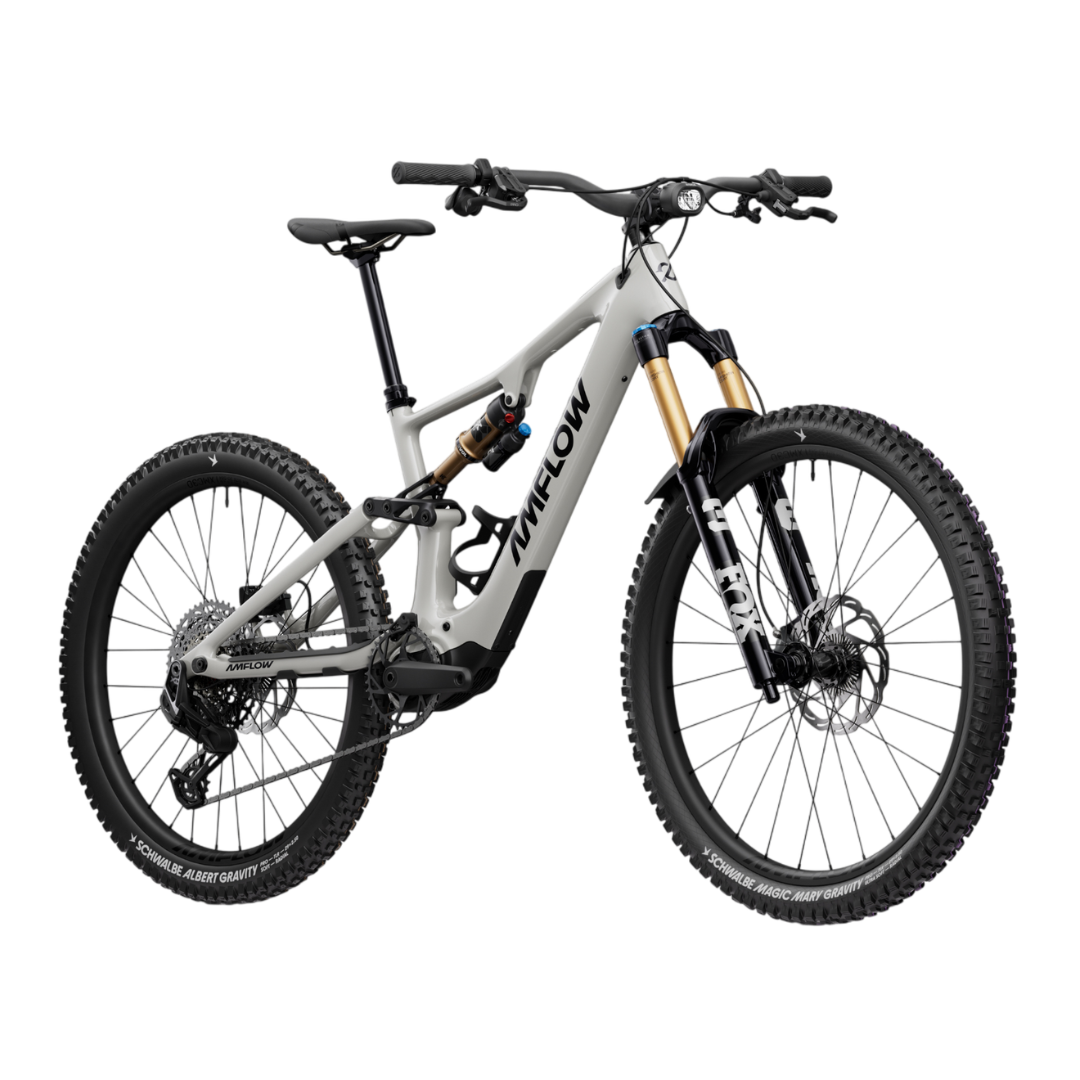

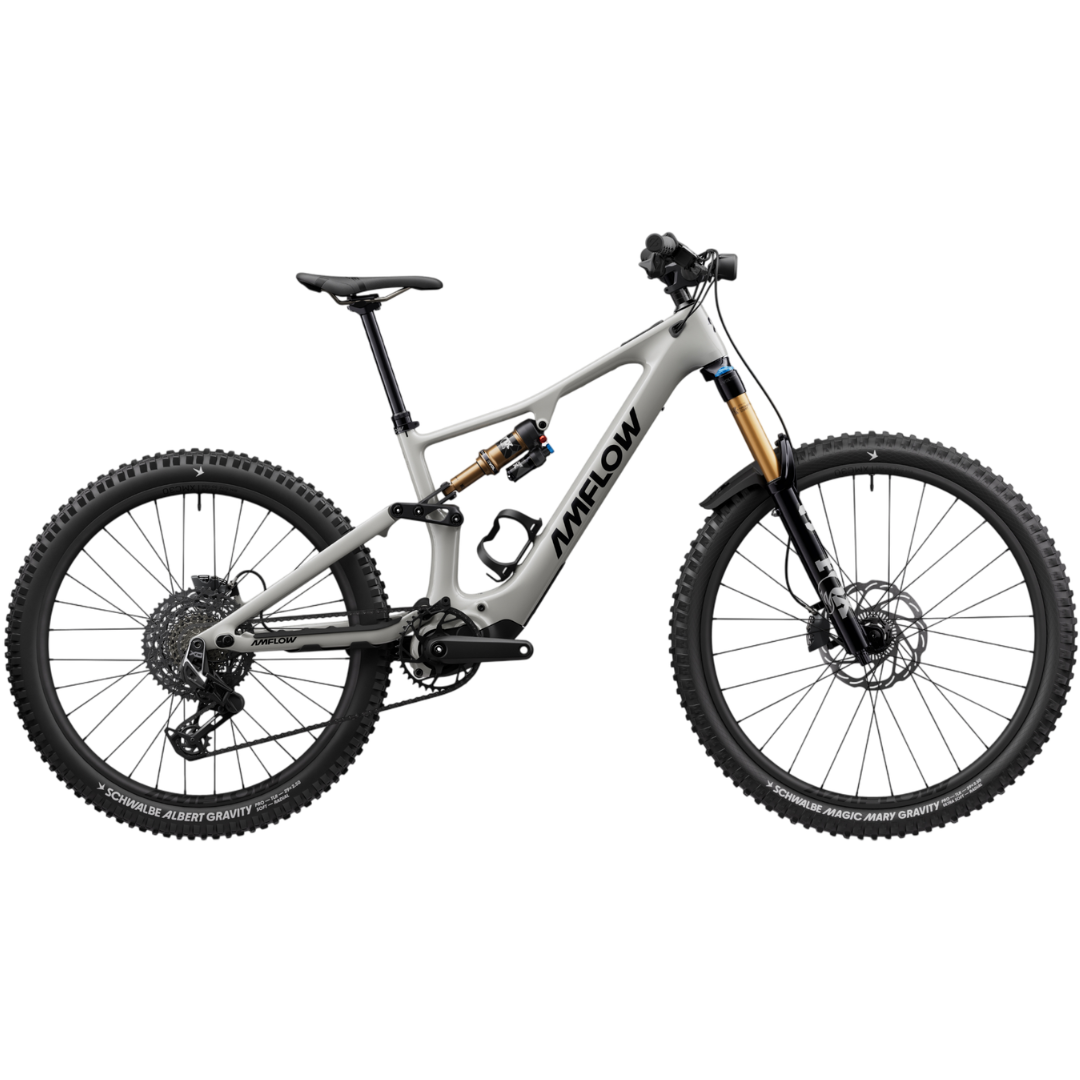

Amflow PX Carbon Pro Bicycle - Black

Amflow PX Carbon Pro bicycle – top-tier e-MTB with Factory components and extreme performance

The Amflow PX Carbon Pro represents the pinnacle of innovation in the e-MTB segment, designed for riders seeking uncompromising performance, premium materials, and advanced technology. Thanks to the carbon frame, FOX Factory suspension, and latest generation SRAM transmission, this bike is perfect for tackling technical trails, aggressive descents, and long mountain rides.

Carbon frame and customizable geometry

The Amflow PX Carbon Pro frame in Moonstone Gray color guarantees stiffness, lightness, and maximum versatility:

• 40 adjustable geometry configurations
• Rear wheel compatibility: 27.5″ and 29″
• Three geometry adjustment systems:
  • Headset cups from 0.5° / 1°
  • Rear dropout flip-chip

Avinox e-bike system: power and control

Advanced technology to tackle any terrain:

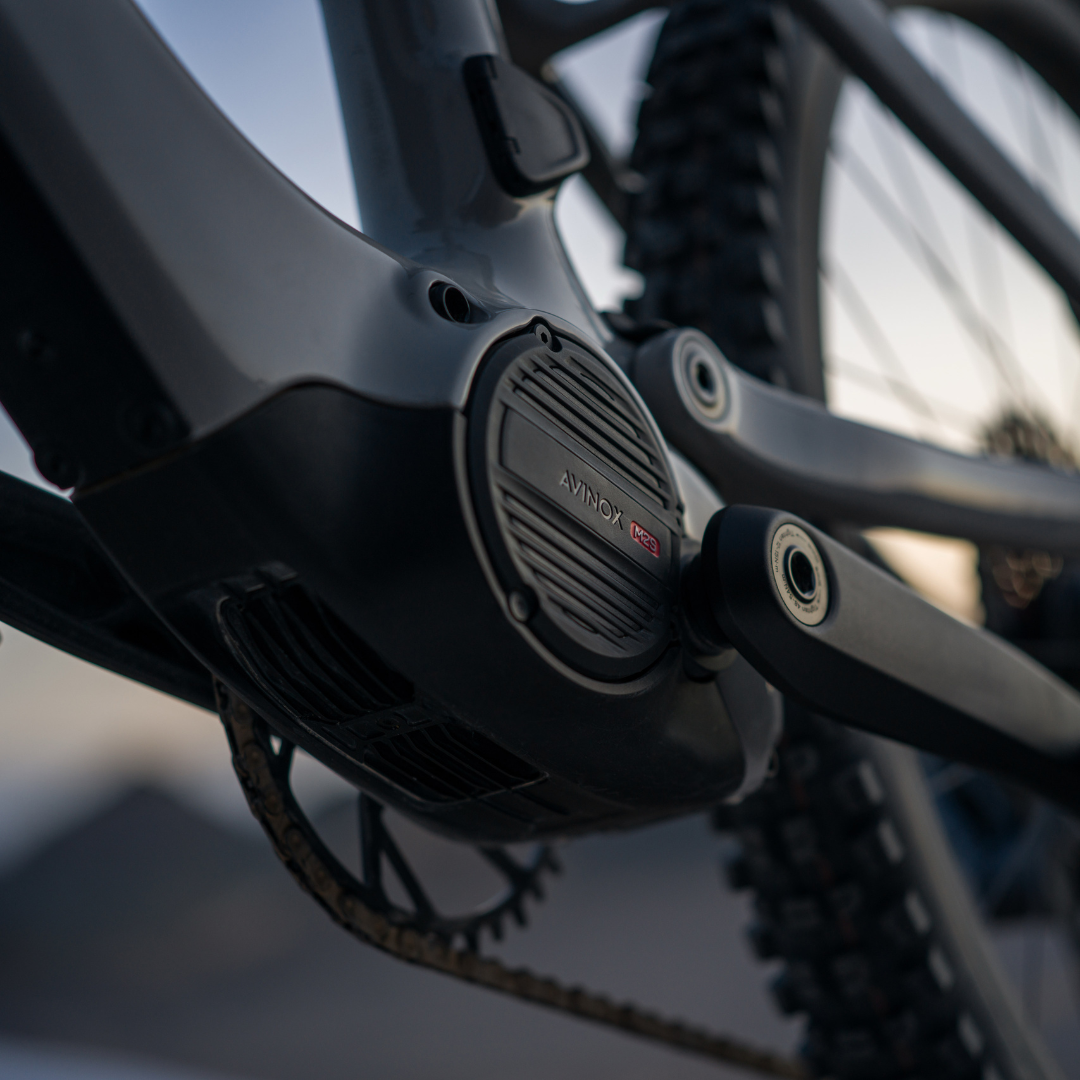

• Avinox M2S motor unit
  • Nominal torque: 130 Nm
  • Peak torque: 150 Nm

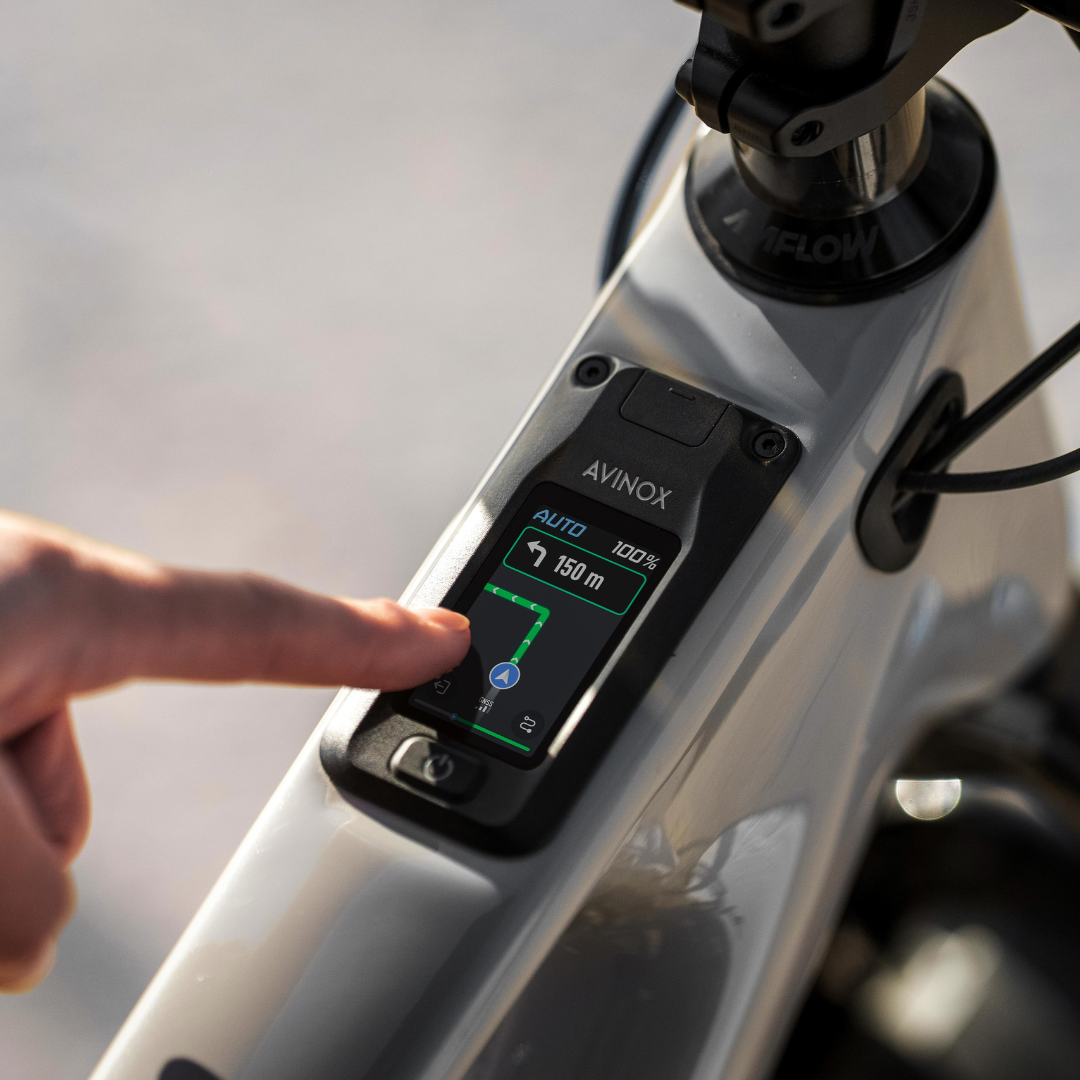

• 2″ Avinox OLED display
• Integrated 700 Wh battery
• Avinox wireless controls (right and left)
• 12A / 508W fast charger

FOX Factory suspension: maximum performance

Top-tier components for total control:

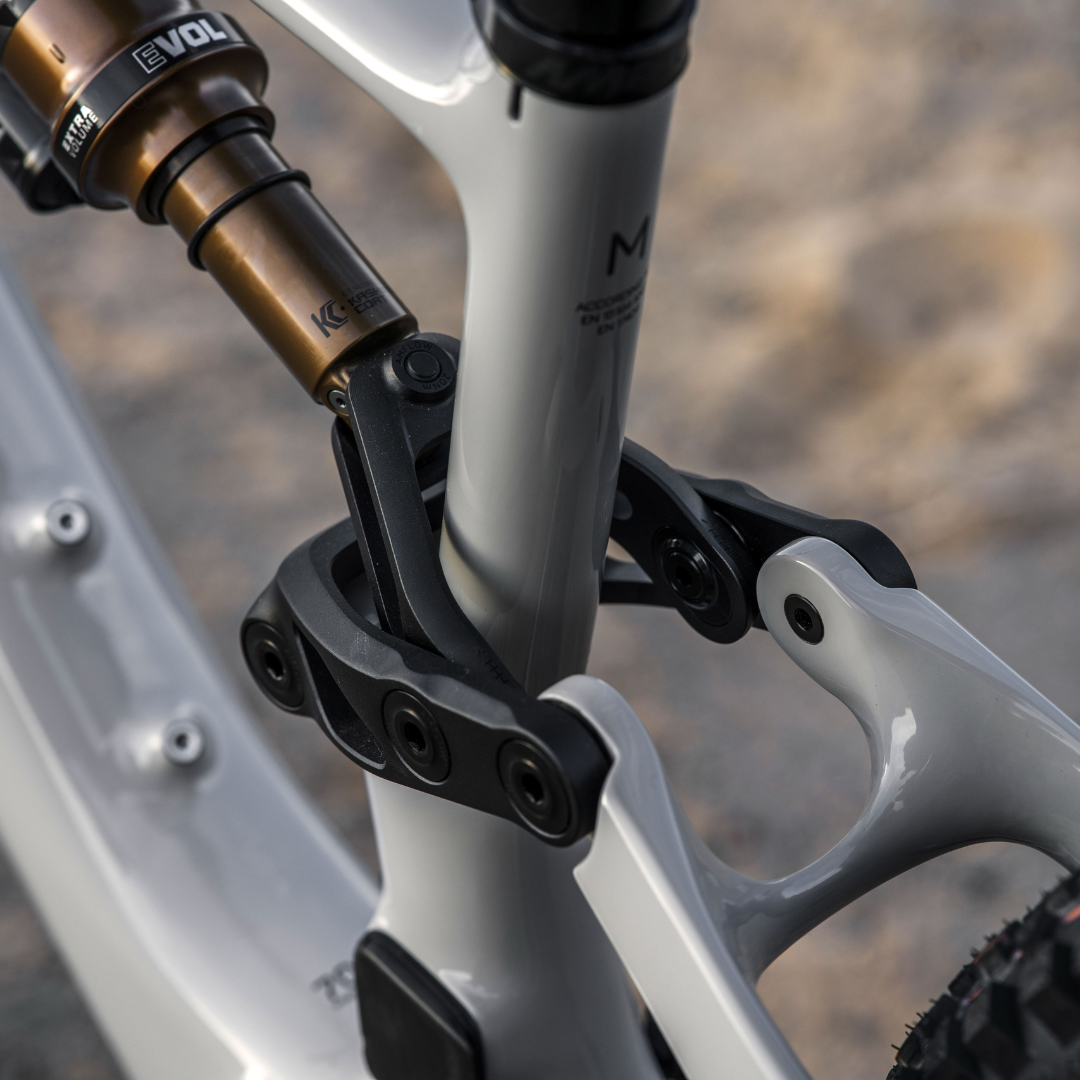

• Rear shock absorber: FOX Float X Factory (MY 2027)
  • Two-position lever
  • Custom tuning
  • Adjustments LSC and LSR
  • Dimensions: 210×55 mm
  • Air shock absorber

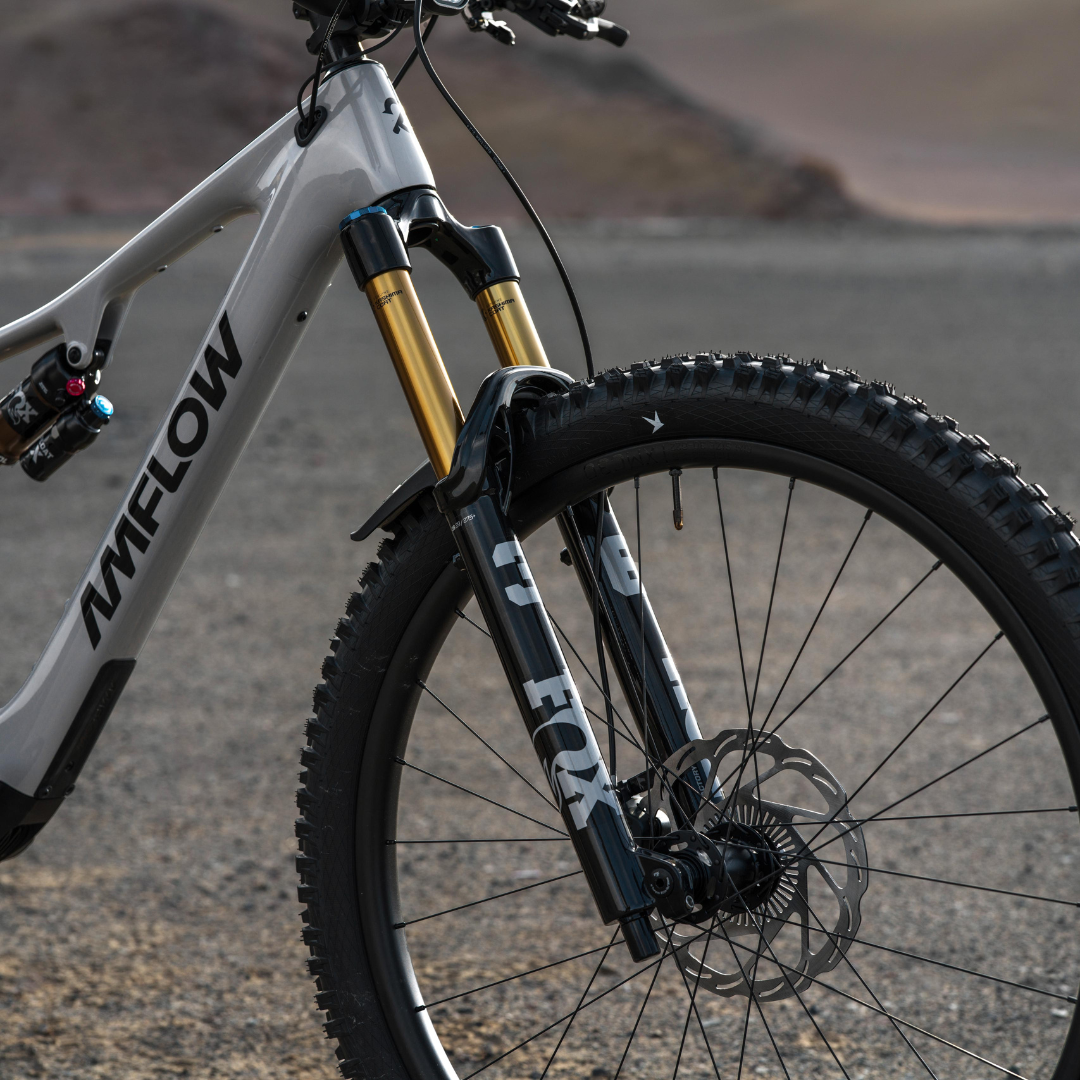

• Fork: FOX 36 Factory (MY 2027)
  • Travel: 160 mm
  • Cartridge GRIP X2
  • Adjustments HSC / LSC / HSR / LSR
  • Standard: 15×110 mm
  • Offset: 44 mm

SRAM X0 Eagle Transmission

Electronic precision and absolute reliability:

• Rear derailleur: SRAM X0 Eagle Transmission
• Chainring: SRAM Eagle Transmission 38T for Avinox
• Controls: SRAM AXS Pod Rocker
• Cassette: SRAM XS-1295 Eagle Transmission 10-52T
• Chain: Flattop SRAM X0 Eagle Transmission
• Power supply: Avinox M2 series electronic cable (SRAM AXS extension)
• Crankarms: Avinox SL
  • M/L: 155 mm
  • XL/XXL: 160 mm

Magura brakes: absolute power and safety

• Brakes: Magura Gustav Pro hydraulic disc
• Calipers: four pistons
• Rotors: Magura with magnet
  • 203 mm
  • Thickness 2.5 mm

Carbon wheels and mullet setup

Amflow XMC-30 – mullet version:

• Front rim: carbon, 29″, 30 mm internal width, 28 holes, Tubeless Ready
• Rear rim: carbon, 27.5″, 30 mm internal width, 32 holes, Tubeless Ready
• Spokes: SAPIM E-Light

Hubs:

• Front: alloy, 2 sealed bearings, 15×110 mm axle, 28 holes, J-bend, 6 bolts
• Rear: alloy, 4 sealed bearings, 12×148 mm axle, 32 holes, J-bend, 6 bolts, 6 pawls 60T, XD

High-performance tires

• Front: Schwalbe Magic Mary radial, 29×2.5, Gravity Pro, Ultra Soft, Tubeless Ready
• Rear: Schwalbe Albert radial, 27.5×2.5, Gravity Pro, Addix Soft, Tubeless Ready

Premium cockpit and components

• Handlebar: Amflow Enduro carbon
  • Rise: 40 mm
  • Width: 800 mm
  • Diameter: 35 mm
  • Upsweep: 5°
  • Backsweep: 9°
• Grips: Amflow Enduro Grip 2 lock-on
• Handlebar stem: Amflow split
  • Length: 35 mm
  • Diameter: 35 mm
• Saddle: Amflow mountain titanium

Adjustable telescopic seatpost

• Adjustable travel: 0 / 5 / 10 / 15 / 20 / 25 mm
• M/L frame: 190 mm
• XL frame: 210 mm
• XXL frame: 230 mm
• Stroke reducer spacer: 5 / 10 mm

Included accessories

• Avinox front light
• Rear light
• Amflow bottle cage
• Nano SIM IoT card
• Schwalbe Clik Valve conversion kit
• FOX 36 mudguard (short)
• Torque wrench
• Transparent protective film for frame
• Suspension pump
• Quick guide

Note Well

Technical specifications may change without notice depending on component availability.
Product images are for illustrative purposes only and may not exactly reflect the described features.

The Amflow PX Carbon Pro is an e-MTB designed for those who demand the best:

• top-tier components (FOX Factory and SRAM X0)
• carbon wheels and optimized weight
• high power and extended range
• fully customizable geometry

Perfect for advanced riders and competitions, it offers absolute control, precision, and top-level performance on any terrain.

Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly

A Complete Guide to Bike Sizes

Foreword: Not all bike sizes are the same

Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.

Bicycle adjustment margins

Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.

How to use size charts

We've created a simple guide to help you find the right bike size:

1. Check out our size charts for each bike type.
2. Learn more with specific tips to help you make the right choice.

Size Charts: Find Your Perfect Bike

Gravel and road bikes

Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.

For gravel, measurements may vary slightly due to different geometries, but remain similar.

Mountain bike

MTBs are measured in inches, based on the seat tube.

Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .

Children's bikes

The size depends on the size of the wheels, often associated with age:

What to do with half measures?

If you are between two sizes:

• Comfort : Choose the larger size.
• Performance : Go for the smaller size.

Final tips for choosing

1. Consult the manufacturer's instructions : Always check the brand's guidelines.
2. Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
3. Test the bike : If possible, test the model you intend to purchase.
