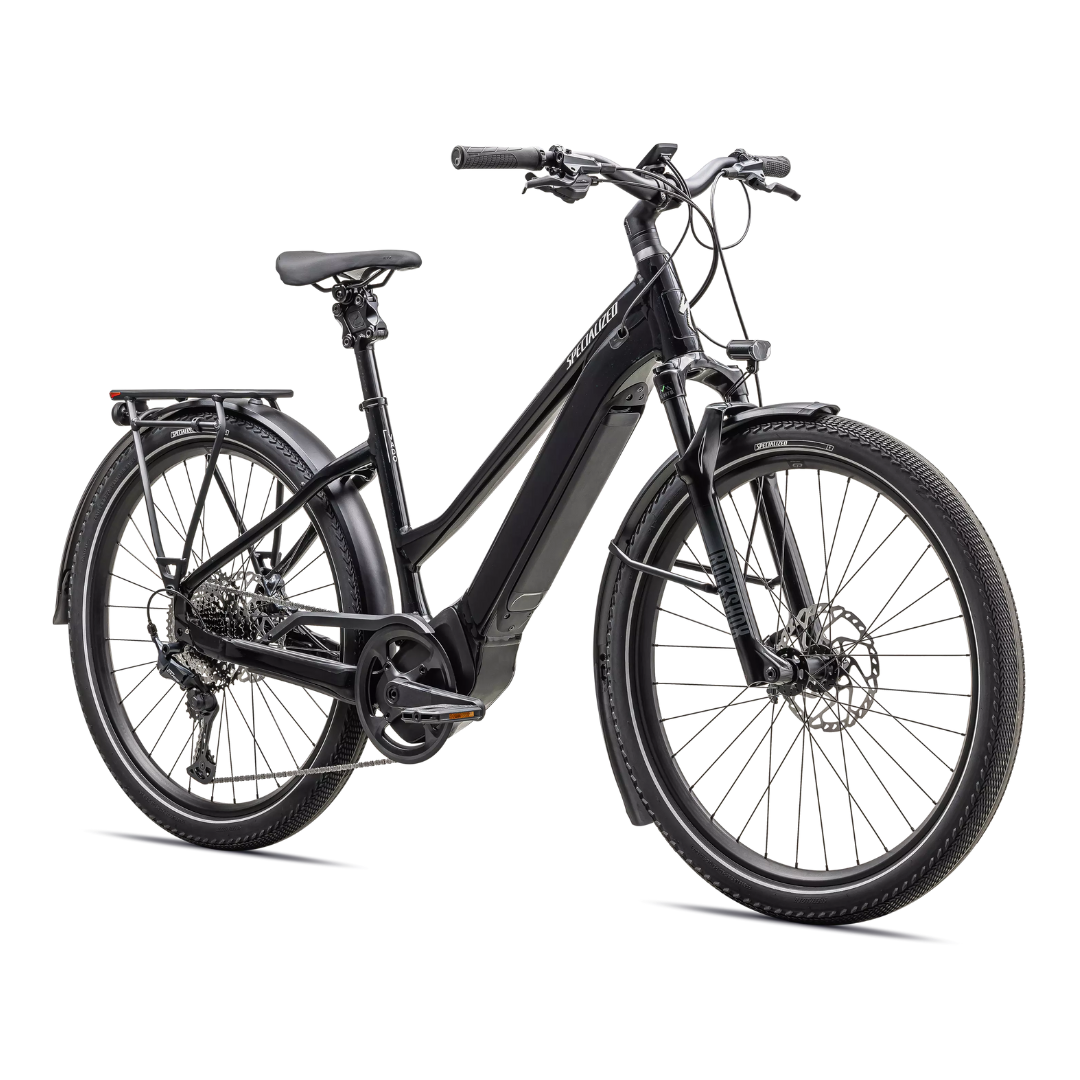

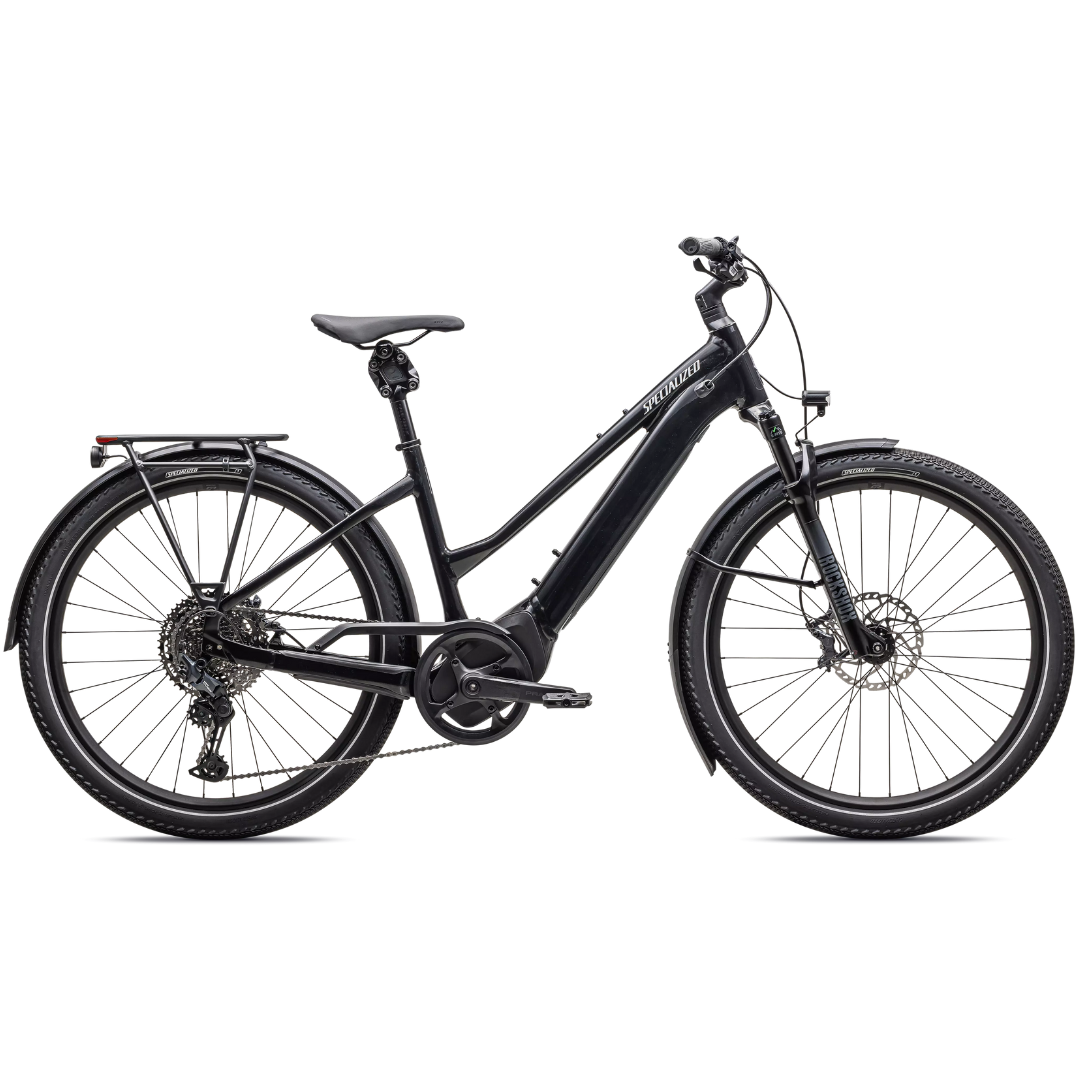

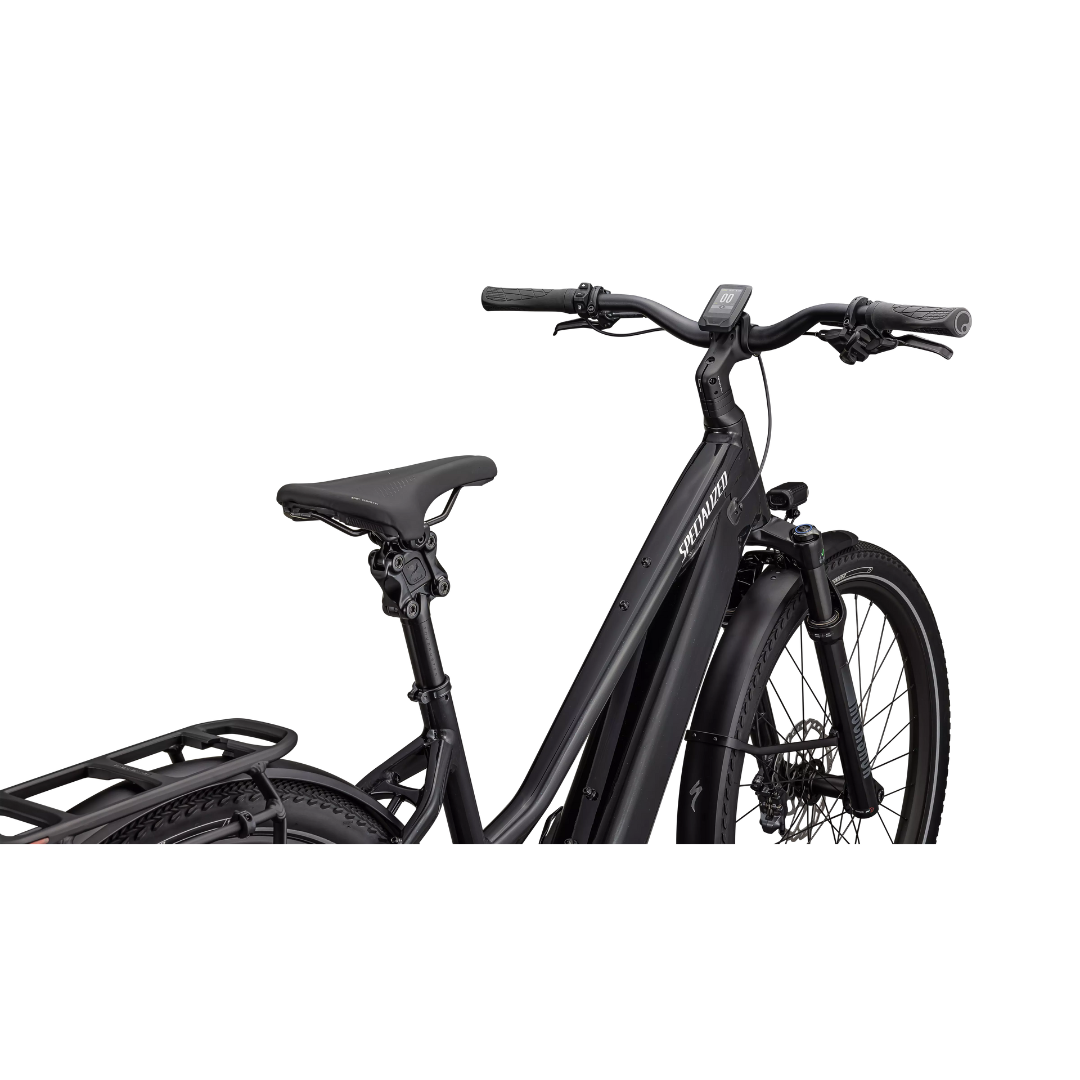

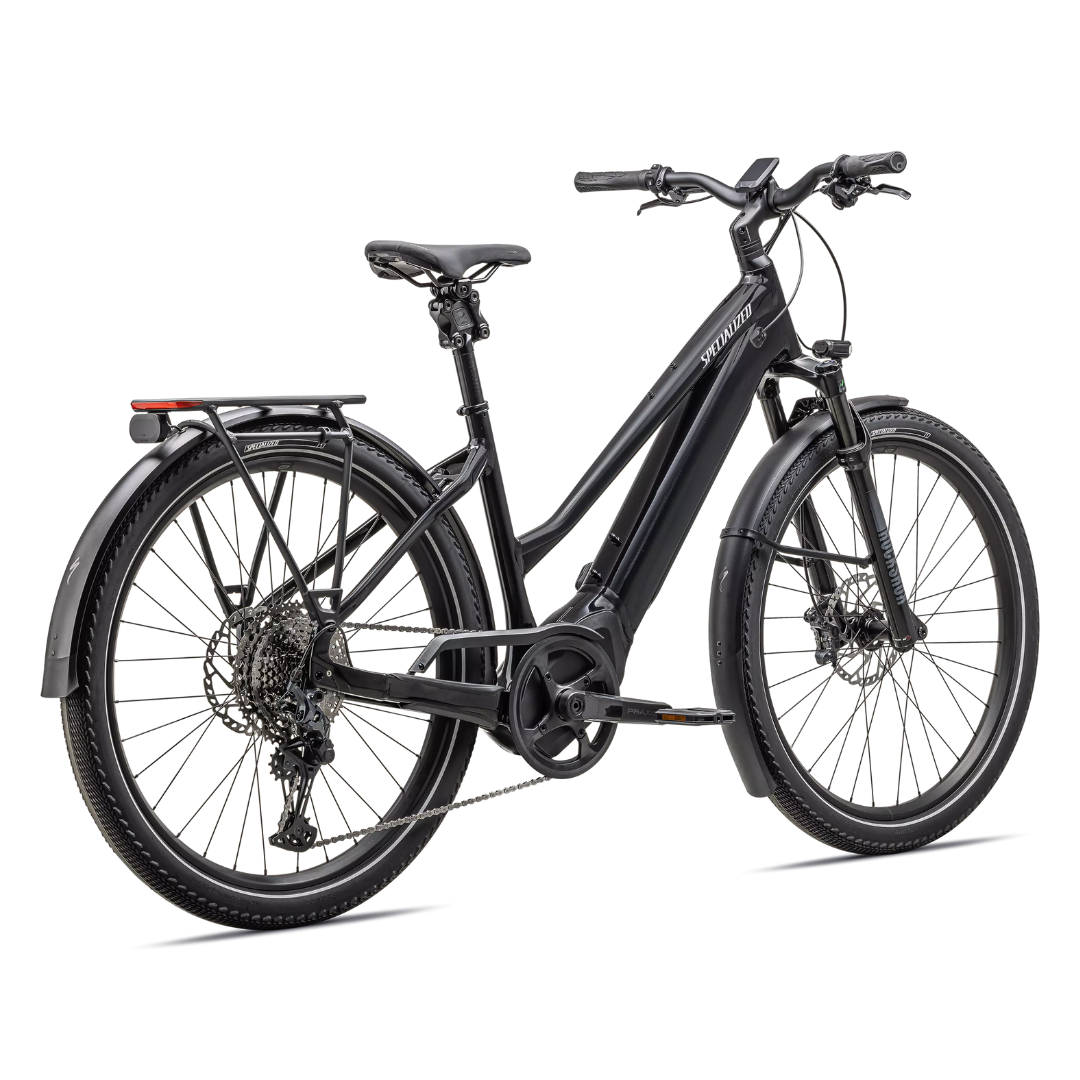

Specialized Turbo Vado 5.0 Step-Through Bicycle – Top-tier urban E-Bike, powerful and with easy access
The Specialized Turbo Vado 5.0 Step-Through is a premium urban electric bike designed to offer maximum performance, safety, and comfort in every context. Thanks to the step-through frame, it is perfect for those who want a bike that is easy to mount and dismount without sacrificing power, technology, and range.
Turbo 2.2 Technology: intelligent, smooth, and quiet power

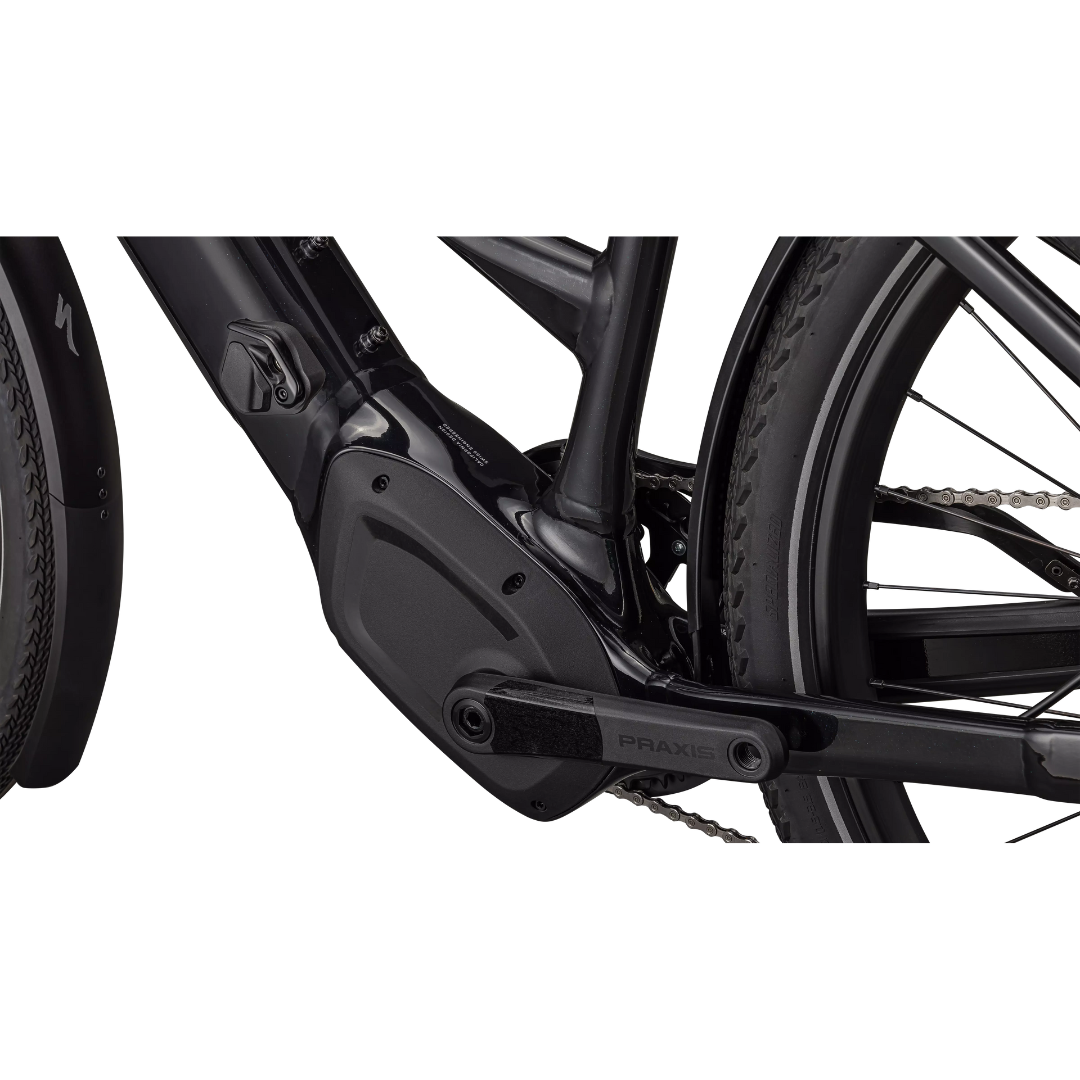

At the heart of the Turbo Vado 5.0 is the Specialized 2.2 motor with 250W and 90Nm, powerful yet quiet, which amplifies your effort up to 25 km/h in a smooth and natural way. Combined with the integrated 710 Wh battery, this E-Bike can reach up to 120 km of range in eco mode (5.5 hours of use).
MasterMind Display & Specialized App: full control at your fingertips
The MasterMind TCD display shows all riding data in real time and allows precise adjustment of assistance.
Integration with the Specialized App allows you to customize the ride, perform system diagnostics, receive OTA updates, and activate the Turbo System Lock.
Integrated Garmin Radar: safety with 140-meter vision
An exclusive feature of the Vado 5.0 is the integration of Garmin radar, which detects approaching vehicles up to 140 meters away. Visual and acoustic alerts are transmitted directly to the MasterMind display, enhancing road safety.
Comfort and versatility on every route
Rockshox Recon Silver RL fork with 80mm travel and Cane Creek Thudbuster suspension seatpost for a smooth riding experience even on rough terrain.
Shimano CUES 4-piston hydraulic disc brakes for safe braking in every situation.
Pathfinder Sport Reflect 650Bx2.3 tires for maximum grip and visibility.

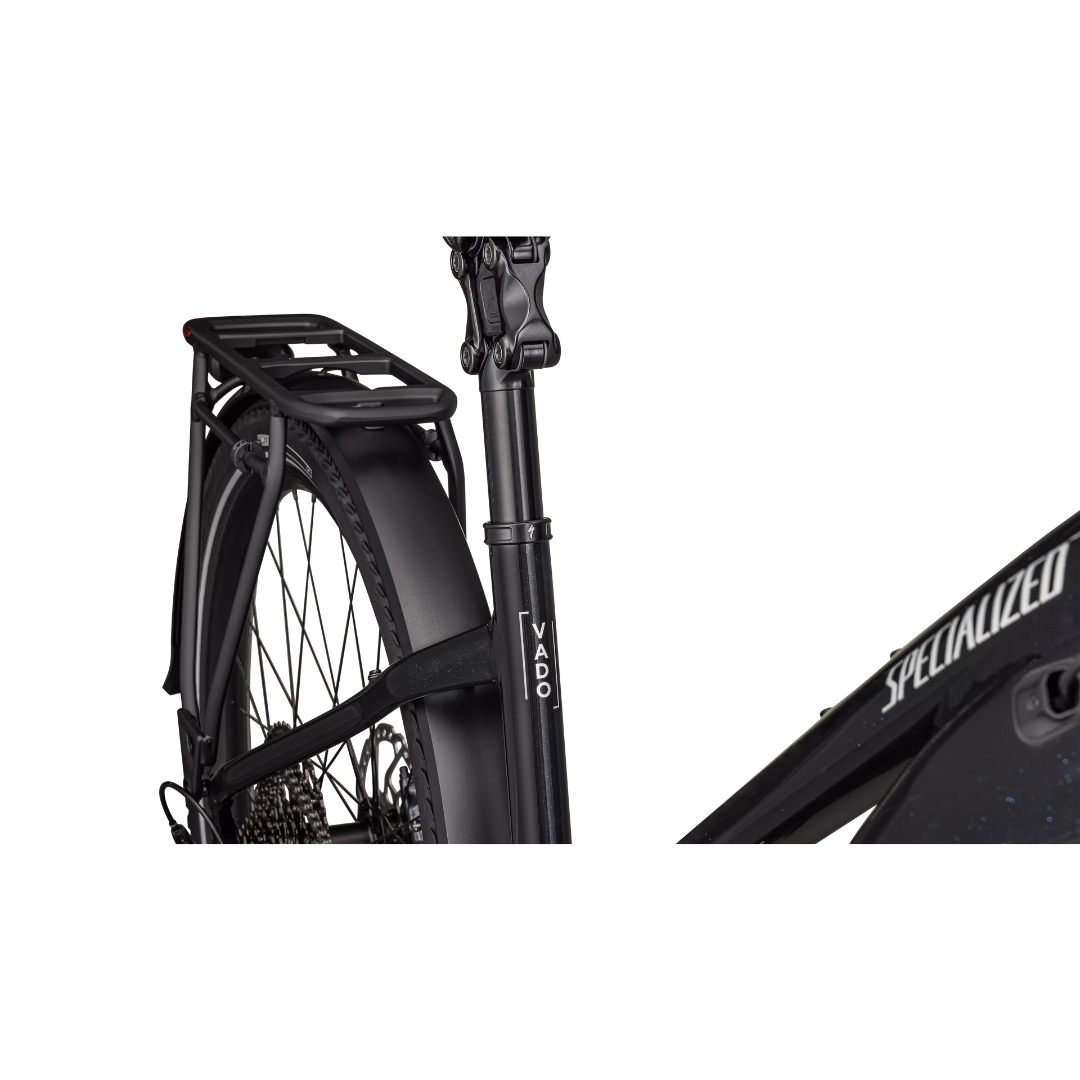

MIK HD rear rack with 27 kg capacity, compatible with child seats and trailers.
Technical Specifications
Electronics
Motor: Specialized 2.2, 90Nm, 250W nominal, custom tuned
Display/Remote: MasterMind TCD with remote control, integrated anti-theft, Bluetooth®, customizable display
Battery: Specialized U2-710, 710Wh, alloy shell with charge indicator
Charger: Custom 42V4A with Rosenberger connector (100–240V)
Frame and Suspension
Frame: E5 Aluminum with fully integrated and lockable battery, internal cable routing, mounts for rack and lock
Fork: Rockshox Recon Silver RL, 80mm, Motion-Control, fender mounts
Seatpost clamp: Specialized alloy 34.9mm with steel bolt
Brakes
Front brake: Shimano CUES BL-U8000, 4 pistons, BR-U8020, Sm-Ma-F180P/P2 adapter
Rear brake: Shimano CUES BL-U8000, 4 pistons, BR-U8020
Drivetrain
Shift levers: Shimano SL-U8000-11IR, CUES, 11-speed, Rapidfire (I-Spec II)
Rear derailleur: Shimano RD-U8000, CUES, 11-speed, Shadow Plus, direct mount
Cassette: Shimano CS-LG400-11, 11-50T
Chain: Shimano LG500
Crankset: Forged alloy, 170mm
Front chainring: 48T
Chain guard: Custom chain cover
Wheels
Rims: 650b, double-wall alloy, 32 holes
Front hub: Specialized, 15x110mm, 6-bolt, sealed bearings
Rear hub: Specialized, 12x148mm, 6-bolt, HD Steel FHB, sealed bearings
Spokes: DT Swiss Industry
Tires: Pathfinder Sport Reflect 650Bx2.3 (front and rear)
Inner tubes: Standard 40mm SV 650Bx1.75–2.4

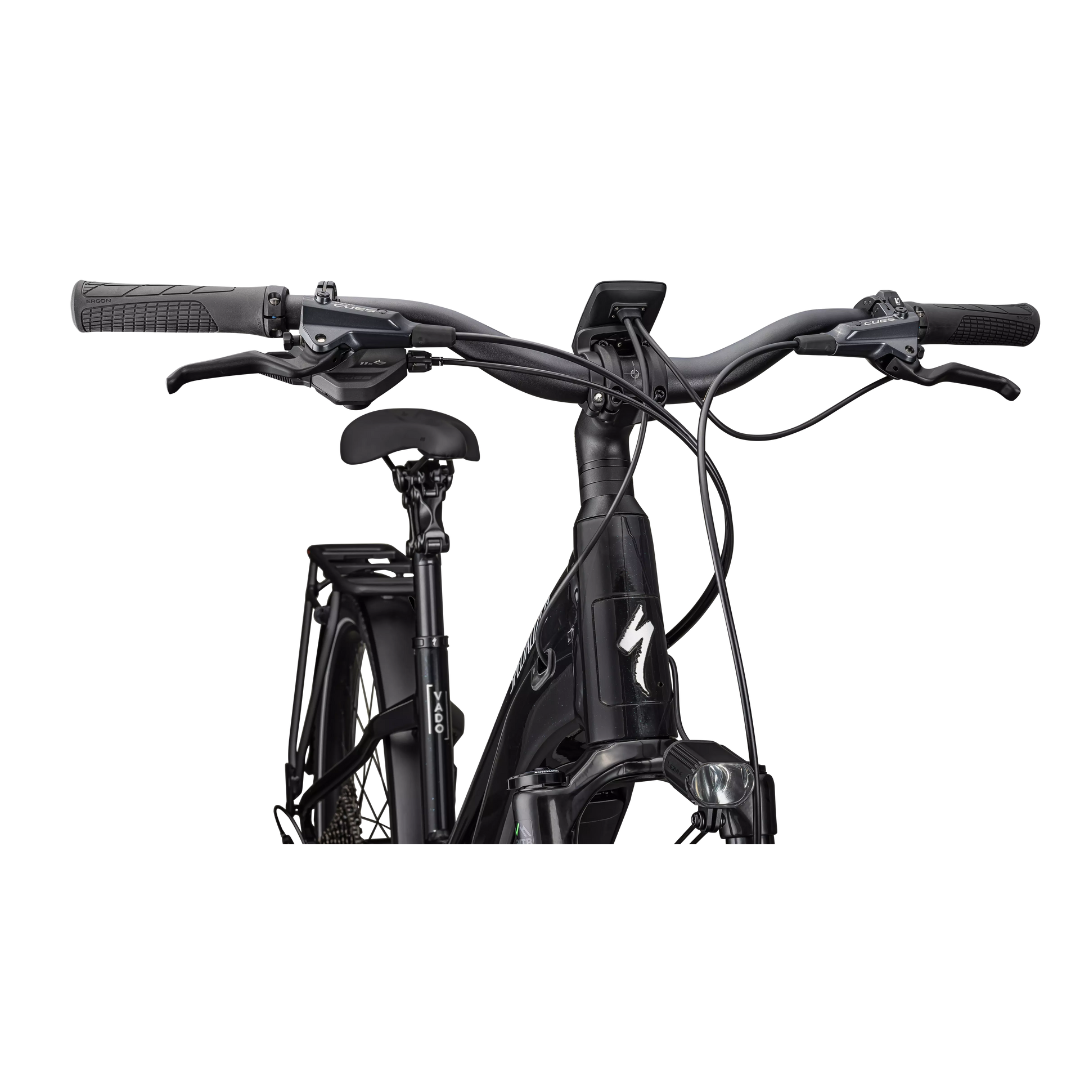

Cockpit
Handlebar: Specialized alloy, 46mm rise, 15° backsweep, 31.8mm
Stem: Specialized Flowset, 3D-forged, 20° rise
Grips: ERGON GA30-S Custom, length 134.8mm
Saddle: Bridge Sport, steel rails, 155mm
Seatpost: Cane Creek Thudbuster ST, 30.9mm
Accessories
Pedals: Specialized Commuter with grip and reflectors
Radar: Integrated Garmin, with alerts displayed on the MasterMind display
Front light: Lezyne Power StVZO E500+, 500 lumens
Rear light: Spanninga Commuter Glow with brake light
Rack: Specialized MIK HD, 27kg load, integrated bag mounts
Fenders: Specialized DRYTECH 65mm, aluminum supports
Lock: Turbo System Lock (via App)
Kickstand: Specialized, 40mm mount
Bell: Specialized brass
Additional Technical Data
Note
Technical specifications may change without notice depending on component availability.
Product images are for illustrative purposes only and may not perfectly reflect the described features.
Buy now the Specialized Turbo Vado 5.0 Step-Through and transform every trip into a safe, fast, and smart experience with maximum comfort and connectivity.
Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly
A Complete Guide to Bike Sizes
Foreword: Not all bike sizes are the same
Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.
Bicycle adjustment margins
Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.
How to use size charts
We've created a simple guide to help you find the right bike size:
- Check out our size charts for each bike type.
- Learn more with specific tips to help you make the right choice.
Size Charts: Find Your Perfect Bike
Gravel and road bikes
Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.
| Cut
|
Recommended height
|
Horizontal tube length
|
| XS |
Up to 157 cm |
48-50 cm |
| S |
157-167 cm |
50-53 cm |
| M |
168-178 cm |
53-56 cm |
| THE |
178-185 cm |
56-58 cm |
| XL |
Over 185cm |
58-62 cm |
For gravel, measurements may vary slightly due to different geometries, but remain similar.
Mountain bike
MTBs are measured in inches, based on the seat tube.
| Cut
|
Recommended height
|
Size (in inches)
|
| XS |
Up to 157 cm |
14"-16" |
| S |
157-167 cm |
15"-17" |
| M |
168-178 cm |
16"-19" |
| THE |
178-185 cm |
18"-20" |
| XL |
Over 185cm |
20"-23" |
Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .
Children's bikes
The size depends on the size of the wheels, often associated with age:
| Age
|
Wheel Size
|
| 1-3 years |
12" |
| 2-4 years |
14" |
| 4-6 years |
16" |
| 5-8 years |
20" |
| 8-10 years |
24" |
| Over 10 years |
26"/27.5" |
What to do with half measures?
If you are between two sizes:
-
Comfort : Choose the larger size.
-
Performance : Go for the smaller size.
Final tips for choosing
-
Consult the manufacturer's instructions : Always check the brand's guidelines.
-
Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
-
Test the bike : If possible, test the model you intend to purchase.
