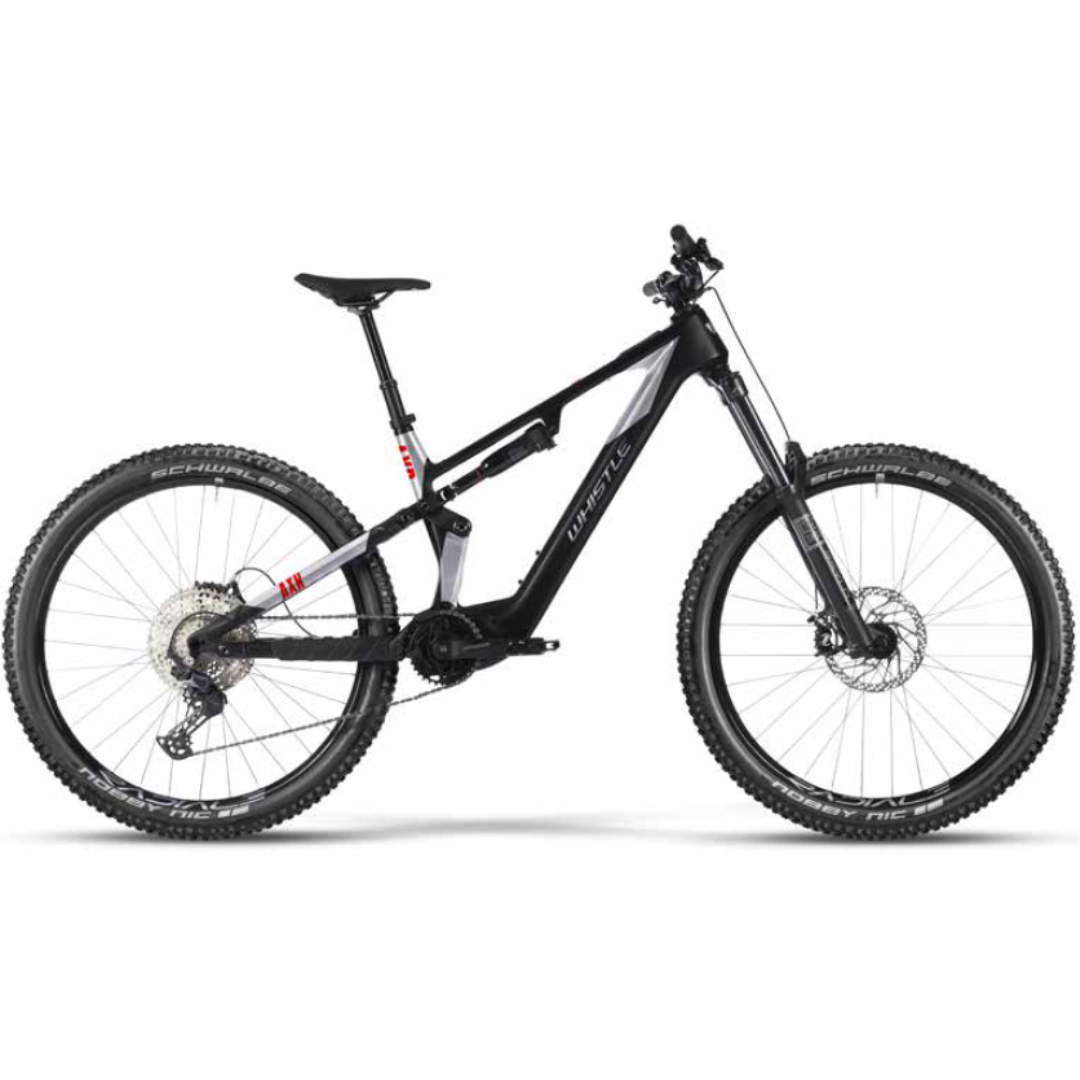

Whistle AXR CA5.7 – Carbon Full Suspension E-MTB, 160 mm

The Whistle AXR CA5.7 is a full suspension e-MTB designed to tackle technical trails, challenging descents, and off-road routes with a combination of power, control, and versatility.

The frame combines a Toray T700 carbon front triangle with an aluminum rear triangle, featuring 29" wheels, an integrated battery, and 160 mm of rear travel. The setup is completed by a 160 mm RockShox Psylo Silver RC eMTB fork, a RockShox Deluxe DebonAir rear shock, and a dropper seatpost.

Powering the Whistle AXR CA5.7 is the Avinox M2S motor, weighing only 2.6 kg, with a maximum power of 1300 W and a torque sensor. The system is powered by an 800 Wh Avinox battery, providing significant energy reserve even on longer and more demanding rides.

The Shimano XT 12-speed drivetrain with a 10-51T cassette offers a wide range of gears, while the Shimano BR-MT420 four-piston brakes with 203 mm rotors ensure powerful and controlled braking.

Thanks to the Schwalbe Nobby Nic 29 x 2.60" tires, 30 mm tubeless-ready rims, and full suspension configuration, the Whistle AXR CA5.7 is designed for those seeking an e-bike capable of performing at its best on technical terrain and challenging trails.

Key Features

• Model: Whistle AXR CA5.7
• Category: Full suspension e-MTB
• Frame: Toray T700 carbon front triangle, aluminum rear triangle
• Wheels: 29"
• Rear travel: 160 mm
• Fork travel: 160 mm
• Motor: Avinox M2S
• Motor weight: 2.6 kg
• Max torque: 15 Nm
• Max power: 1300 W
• Sensor: Torque sensor
• Battery: Integrated Avinox 800 Wh
• Battery weight: 3.74 kg
• Max assisted speed: 25 km/h
• Charger: 4 A
• Charging time: Up to 5 hours
• Display: Avinox DP100
• Assistance modes: Auto / Eco / Trail / Turbo / Boost
• Drivetrain: Shimano XT 12-speed
• Cassette: Shimano CS-M6200 12-speed, 10-51T
• Brakes: Shimano BR-MT420 four-piston
• Rotors: 203 mm front / 203 mm rear
• Tires: Schwalbe Nobby Nic Performance Addix 29 x 2.60"
• Bike weight: 24 kg

Frame

The frame of the Whistle AXR CA5.7 features a front triangle made of Toray T700 carbon and an aluminum rear triangle.

The configuration was developed for e-MTB use and features a full suspension geometry with 160 mm of rear travel, 29" wheels, an integrated battery, and internal cable routing.

Frame specifications

• Front triangle: Toray T700 Carbon
• Rear triangle: Aluminum
• Wheels: 29"
• Battery: Integrated
• Headset: Tapered
• Cable routing: Internal
• Rear travel: 160 mm
• Rear axle: 12 x 148 mm
• Rear axle type: e-thru
• Derailleur hanger: UDH

Suspension

The Whistle AXR CA5.7 uses a 160 mm full suspension setup, with RockShox components both front and rear.

Fork

RockShox Psylo Silver RC eMTB

• Technology: Solo Air
• Wheel: 29"
• Travel: 160 mm
• Steerer: 1.5" tapered
• Axle: 15 x 110 mm

Rear shock

RockShox Deluxe DebonAir

• Technology: DebonAir
• Size: 230 x 65 mm

The combination of a 160 mm fork and rear shock allows riders to tackle technical terrain while maintaining a high level of control and comfort.

Avinox M2S Motor

The assistance system of the Whistle AXR CA5.7 is powered by the Avinox M2S motor, characterized by a low weight of only 2.6 kg and a maximum power of 1300 W.

The system uses a torque sensor, which allows the assistance to be modulated based on the force applied to the pedals.

Motor specifications

• Motor: Avinox M2S
• Weight: 2.6 kg
• Max torque: 15 Nm
• Max power: 1300 W
• Sensor type: Torque sensor
• Max assisted speed: 25 km/h

Battery and charging system

The bike is equipped with an 800 Wh Avinox battery, integrated into the frame.

Battery

• Brand: Avinox
• Capacity: 800 Wh
• Type: Integrated battery
• Weight: 3.74 kg

Charger

• Charging current: 4 A
• Charging time: Up to 5 hours

Display and assistance modes

The Avinox system is managed via the Avinox DP100 display, which allows you to control the e-bike's information and assistance modes.

Assistance modes

• Auto
• Eco
• Trail
• Turbo
• Boost

The presence of different modes allows the level of assistance to be adapted to the characteristics of the route and the rider's needs.

Shimano XT 12-speed Drivetrain

The Whistle AXR CA5.7's drivetrain uses Shimano XT and Shimano Deore 12-speed components, offering a wide range of gears to tackle both climbs and faster sections.

Crankset

• FSA CK745
• Crank arm length: 165 mm
• Chainring: 36T Megatooth

Rear derailleur

• Shimano XT RD-M8200 SGS
• Shadow Plus
• 12-speed

Shift levers

• Shimano Deore SL-M6200
• Rapidfire-Plus
• 12-speed

Cassette

• Shimano CS-M6200
• 12-speed
• Ratios: 10-51T

This configuration offers a particularly wide range of gears, useful for tackling steep climbs and maintaining good speed on smoother sections.

Brakes

Braking is handled by Shimano BR-MT420 four-piston brakes, designed to ensure power and control even during the most demanding descents.

• Brake: Shimano BR-MT420
• Configuration: Four-piston
• Front rotor: Shimano SM-RT66, 203 mm
• Rear rotor: Shimano SM-RT66, 203 mm

The presence of 203 mm rotors both front and rear offers high braking capacity, which is particularly important on a full suspension e-MTB with 160 mm of travel.

Wheels

The Whistle AXR CA5.7 uses 29" wheels with tubeless-ready rims and a 30 mm internal width.

Front hub

• Radial J110
• 15 x 110 mm
• International Standard
• 32 holes

Rear hub

• Radial J148
• 12 x 148 mm
• International Standard
• Micro Spline
• 32 holes

Rims

• Radial W30
• Edesign
• Tubeless Ready
• 622 x 30C

Tires

The Schwalbe Nobby Nic Performance Addix 29 x 2.60" tires are designed to offer a good balance of grip, control, and versatility on off-road trails.

Specifications

• Brand: Schwalbe
• Model: Nobby Nic
• Version: Performance
• Compound: Addix
• Size: 29 x 2.60"

Cockpit

Stem

• Aluminum
• Handlebar diameter: 35 mm
• Length:
  • Sizes S-M: 35 mm
  • Sizes L-XL: 50 mm

Handlebar

• Aluminum
• Width: 780 mm
• Clamping diameter: 35 mm
• Rise: 15 mm

Headset

• FSA CRII Dual
• 1.5"
• Internal cable routing

Seatpost and saddle

Seatpost

The bike is equipped with an A1 dropper seatpost, ideal for quickly adjusting saddle height during descents and technical sections.

• Model: Dropper A1
• Diameter: 31.6 mm
• Remote control: Yes

Saddle

Depending on the configuration, the bike can be equipped with:

• Selle Royal SRX
• Selle San Marco Zero

Pedals

• Pedals: Alu MTB Full+

Weight

• Total bike weight: 24 kg
• Avinox M2S motor weight: 2.6 kg
• Avinox 800 Wh battery weight: 3.74 kg

Please Note

Technical specifications such as handlebar dimensions, gear ratios, and crank dimensions are all modifiable upon request, subject to availability.
Product images are for illustrative purposes only and may not exactly reflect the described features.

Why choose the Whistle AXR CA5.7

The Whistle AXR CA5.7 is a full-suspension e-MTB designed for those seeking a high-performance and versatile bike on the most challenging trails. The frame with a Toray T700 carbon front triangle, 160 mm suspension, 29" wheels, and 2.60" tires create a setup geared towards trail riding and off-road use.

The Avinox M2S 1300 W system, combined with the 800 Wh battery and torque sensor, offers powerful and natural assistance, while the 12-speed Shimano drivetrain with a 10-51T cassette allows you to effectively tackle even the most demanding climbs.

The equipment is completed by Shimano BR-MT420 four-piston brakes with 203 mm rotors, the RockShox Psylo Silver RC eMTB fork, the RockShox Deluxe DebonAir shock absorber, and the dropper seatpost.

Whistle AXR CA5.7: a 160mm full-suspension e-MTB, with an Avinox M2S motor, an 800 Wh battery, and Shimano and RockShox components, designed to push you further on the most challenging trails.
