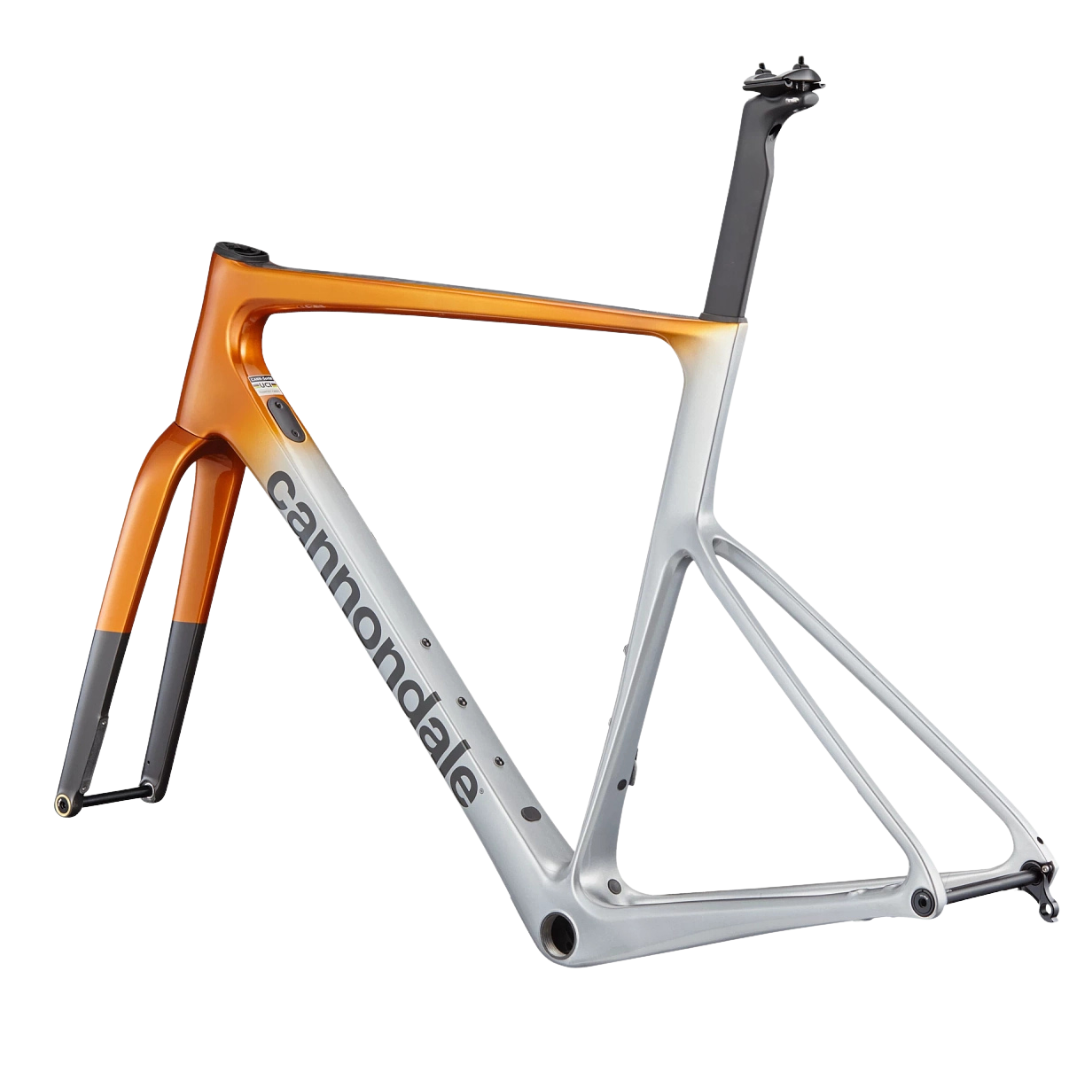

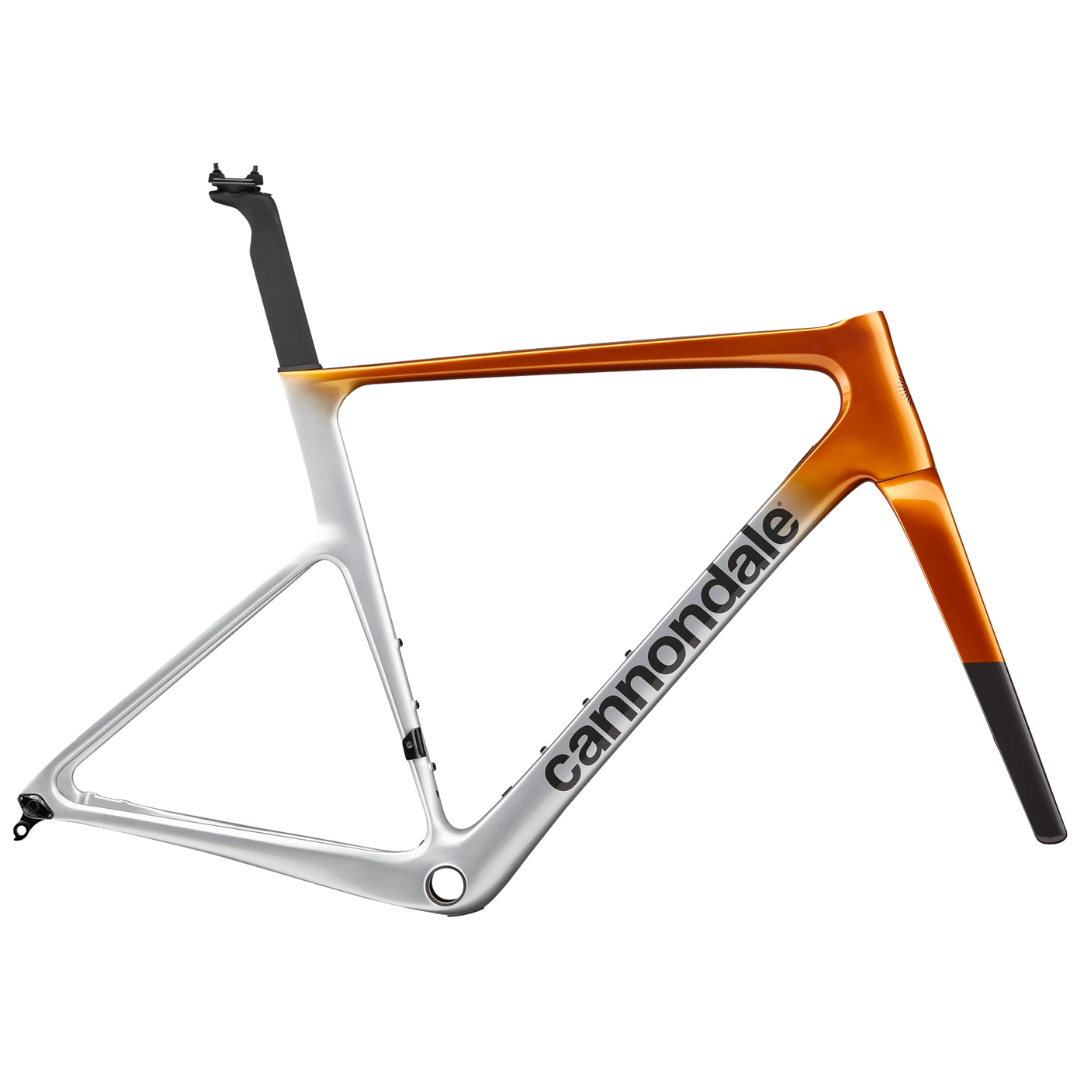

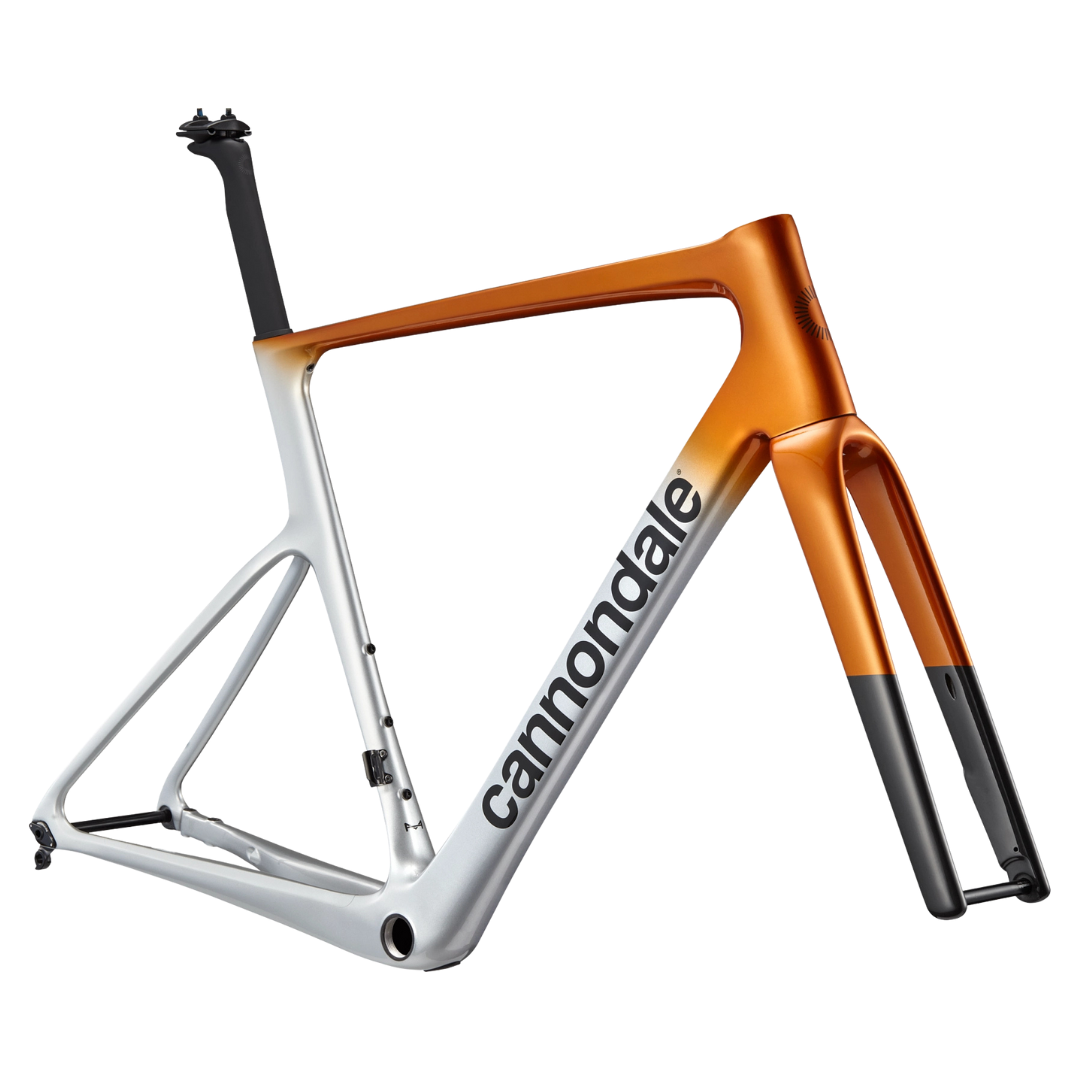

Cannondale SuperSix EVO Hi-MOD Frame – Carbon Racing Frameset

Lightness, aerodynamics, and control: the ultimate race frame

The Cannondale SuperSix EVO Hi-MOD is the frame for those seeking maximum road performance, advanced aerodynamics, and uncompromising handling. A concentration of innovation, designed for those who see cycling as a challenge against time, the wind, and their own limits.

Made from Hi-MOD carbon, the SuperSix EVO is extremely lightweight, responsive, and sculpted for speed. Perfect for competitive cyclists, advanced amateurs, and those looking for a bike to beat personal records, dominate climbs, and sprint to the finish line.

Strengths

• Hi-MOD Carbon: ultra-lightweight and stiff construction for immediate response and explosive acceleration

• C1 Aero 40 Carbon Seatpost: optimized for minimal drag, maintains stiffness and comfort

• Race geometry: balanced between agility and stability, for intuitive and responsive riding

• Advanced aerodynamic design: CFD modeling and hours in the wind tunnel for a design that "cuts" through the air

• SmartSense Compatibility: integrated technology for safety and connectivity

Technical specifications

Frame Kit

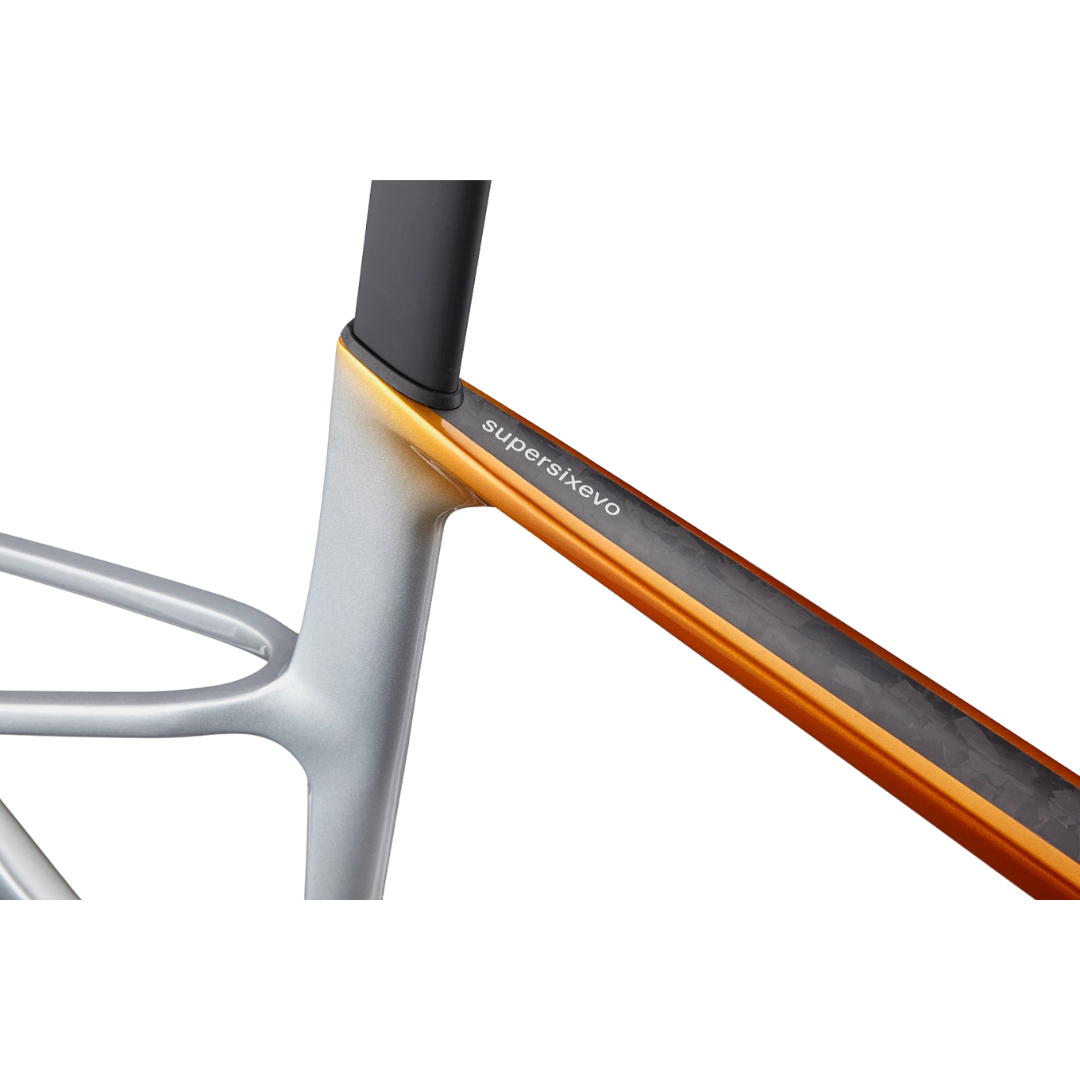

• Frame: SuperSix EVO Hi-MOD Carbon, internal cable routing with Switchplate, 12x142mm Syntace thru-axle, BSA 68mm threaded bottom bracket, flat mount disc brakes, integrated seatpost clamp, SmartSense compatible
• Fork: SuperSix EVO Hi-MOD Carbon, integrated fork base, 12x100mm Syntace thru-axle, flat mount disc brakes, internal cable routing, Delta 1-1/8" – 1-1/4" steerer tube, 55 mm offset (sizes 44–54 cm), 45 mm offset (sizes 56–61 cm)
• Headset: Integrated 1-1/8" – 1-1/4"

Wheels

• Wheel size: 700c

Components

• Seatpost: Cannondale C1 Aero 40 Carbon

• 0 mm offset for sizes 44–48 cm

• 20 mm offset for sizes 51–61 cm

Extras

Included accessories:

• Cannondale Gripper Aero Bottles

• ReGrip Aero Cages Bottle Holders

Note Well

Technical specifications may change without notice depending on component availability.
Product images are purely indicative and may not exactly reflect the described features.

The SuperSix EVO Hi-MOD is not just a frame: it is a racing weapon for those who demand absolute speed, podium-level performance, and total control. Trust Cannondale technology to take your riding to a new level.

Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly

A Complete Guide to Bike Sizes

Foreword: Not all bike sizes are the same

Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.

Bicycle adjustment margins

Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.

How to use size charts

We've created a simple guide to help you find the right bike size:

1. Check out our size charts for each bike type.
2. Learn more with specific tips to help you make the right choice.

Size Charts: Find Your Perfect Bike

Gravel and road bikes

Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.

For gravel, measurements may vary slightly due to different geometries, but remain similar.

Mountain bike

MTBs are measured in inches, based on the seat tube.

Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .

Children's bikes

The size depends on the size of the wheels, often associated with age:

What to do with half measures?

If you are between two sizes:

• Comfort : Choose the larger size.
• Performance : Go for the smaller size.

Final tips for choosing

1. Consult the manufacturer's instructions : Always check the brand's guidelines.
2. Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
3. Test the bike : If possible, test the model you intend to purchase.
