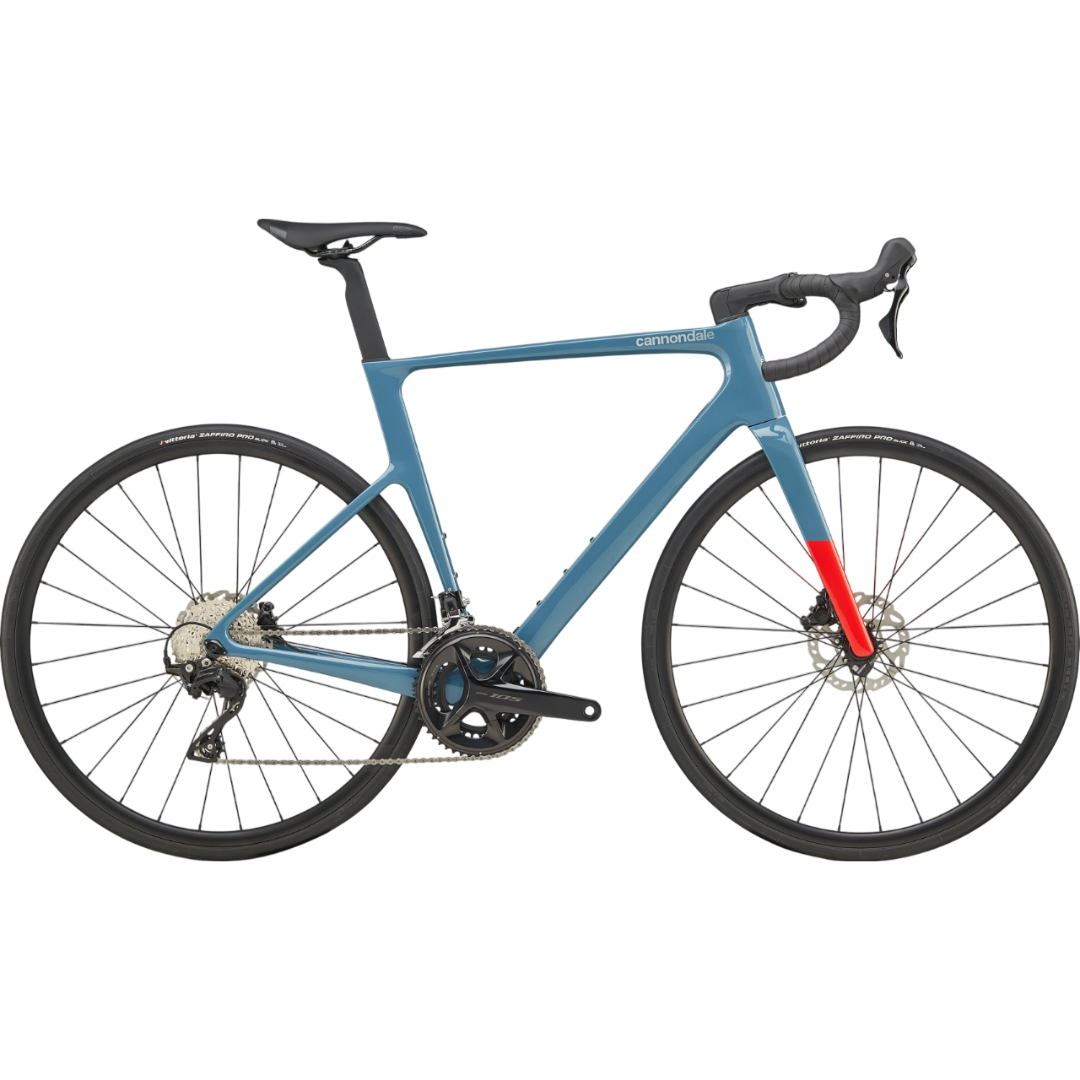

Cannondale SuperSix EVO 4 – Faster, Everywhere
The new Cannondale SuperSix EVO 4 redefines expectations: a racing bike so light, fast, and aerodynamic it defies logic. Perfect for cyclists who want to improve their performance, conquer KOMs, and dominate races. Speed has evolved.
Where it excels:
- Road races
- Personal records and KOMs
- Victories and podium performances
Why choose it:
-
SuperSix EVO carbon frame – Perfect balance of lightness, aerodynamics, and comfort.
-
Shimano 105 12-speed – The high-end road groupset for precise and reliable shifting.
-
Vision Trimax Compact handlebar & Cannondale C1 Conceal stem – Ergonomic design with fully integrated wiring for a clean look and maximum aerodynamics.
Technical Specifications
Frame Kit
-

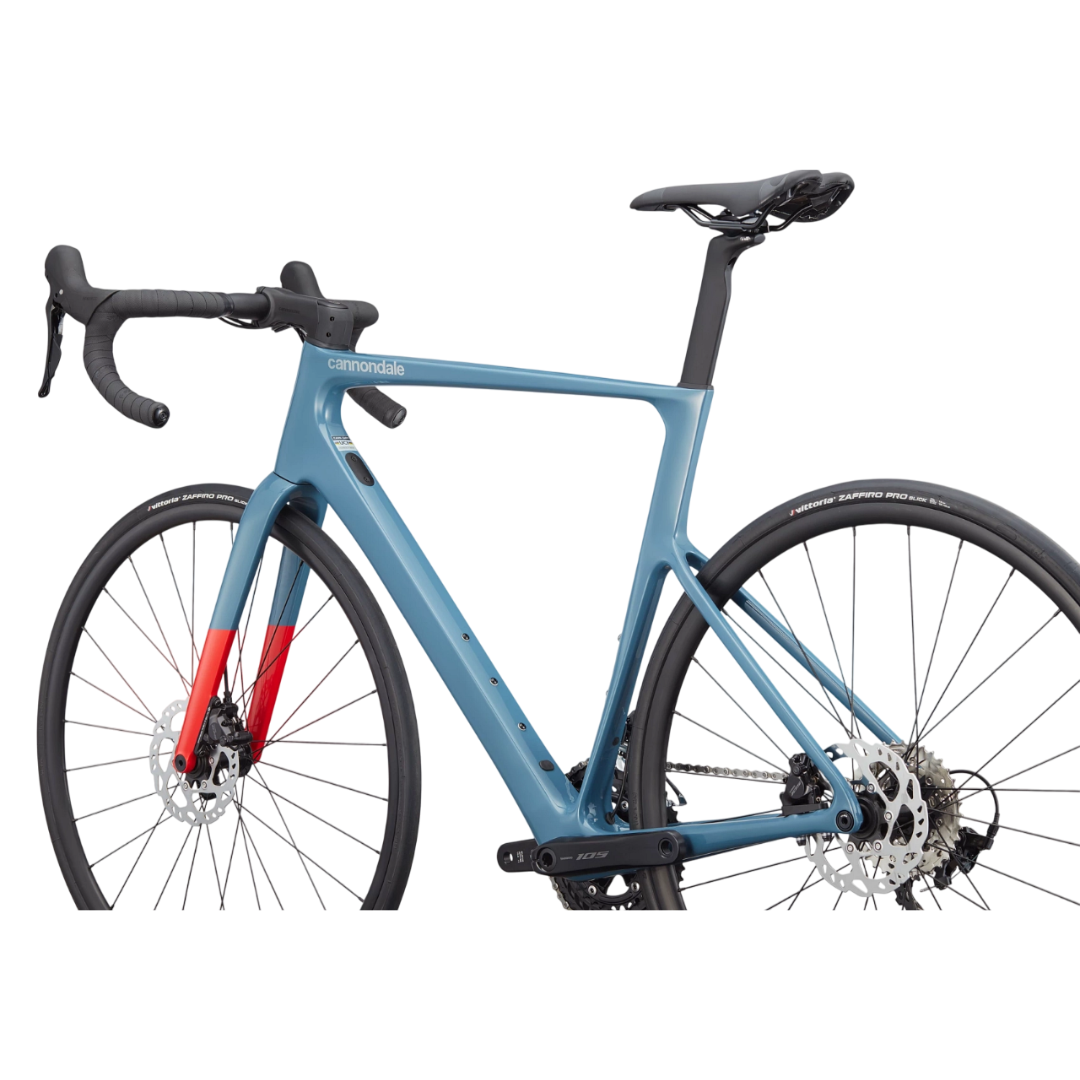

Frame: SuperSix EVO Carbon, integrated cable routing with Switchplate, 12x142 mm Syntace thru-axle, BSA 68 mm threaded bottom bracket, flat mount brake mount, SmartSense compatible.
-
Fork: SuperSix EVO Carbon, tapered headset 1-1/8" - 1-1/4" Delta, internal cable routing, 12x100 mm Syntace thru-axle, flat mount brake mount, 55 mm offset (44-54 cm) / 45 mm (56-61 cm).
-
Headset: Integrated, 1-1/8" - 1-1/4".
Drivetrain
-

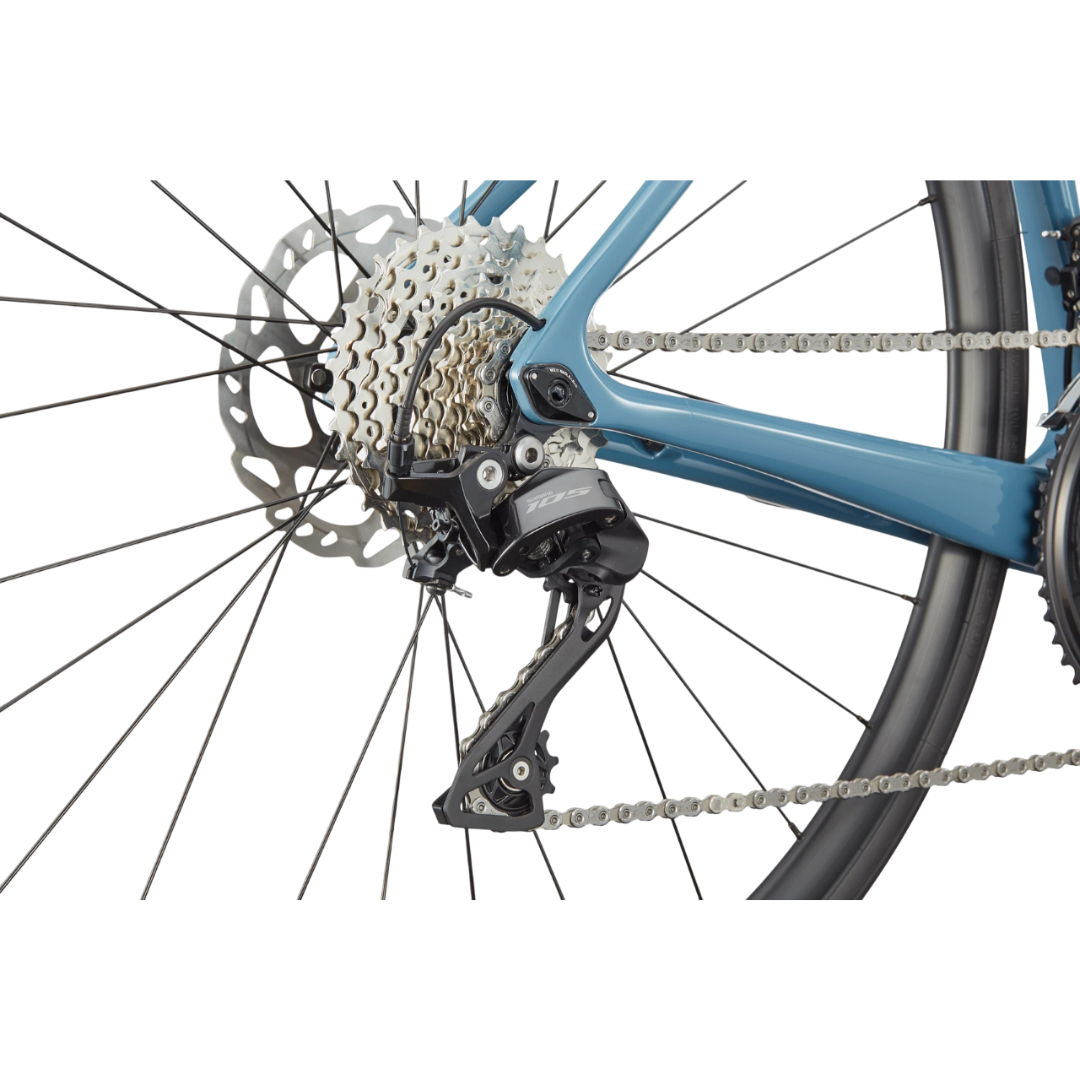

Rear derailleur: Shimano 105 7100, 12 speed.
-
Front derailleur: Shimano 105 7100, direct mount.
-

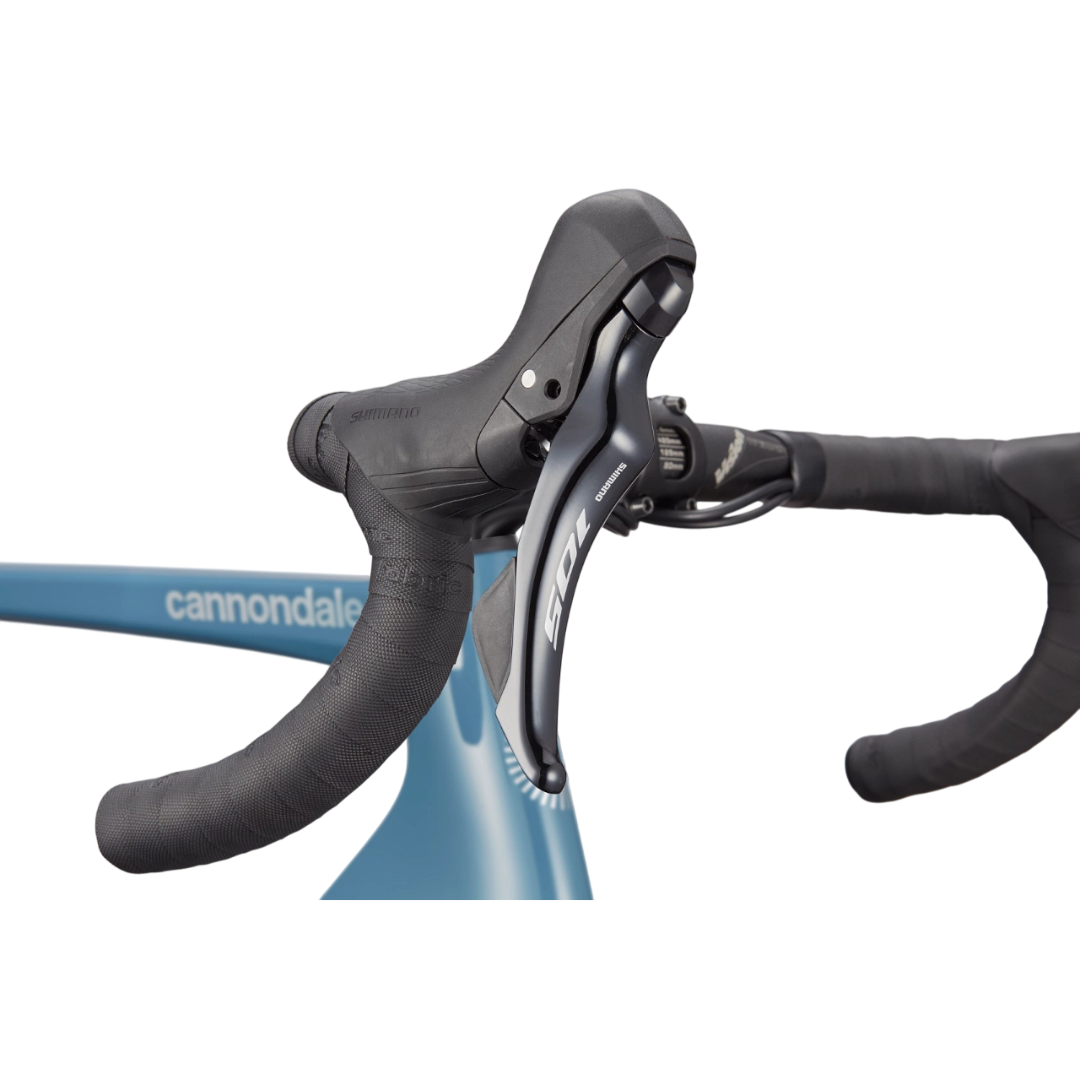

Shift levers: Shimano 105 7100, 12 speed.
-
Chain: Shimano 105 7100, 12 speed.
-

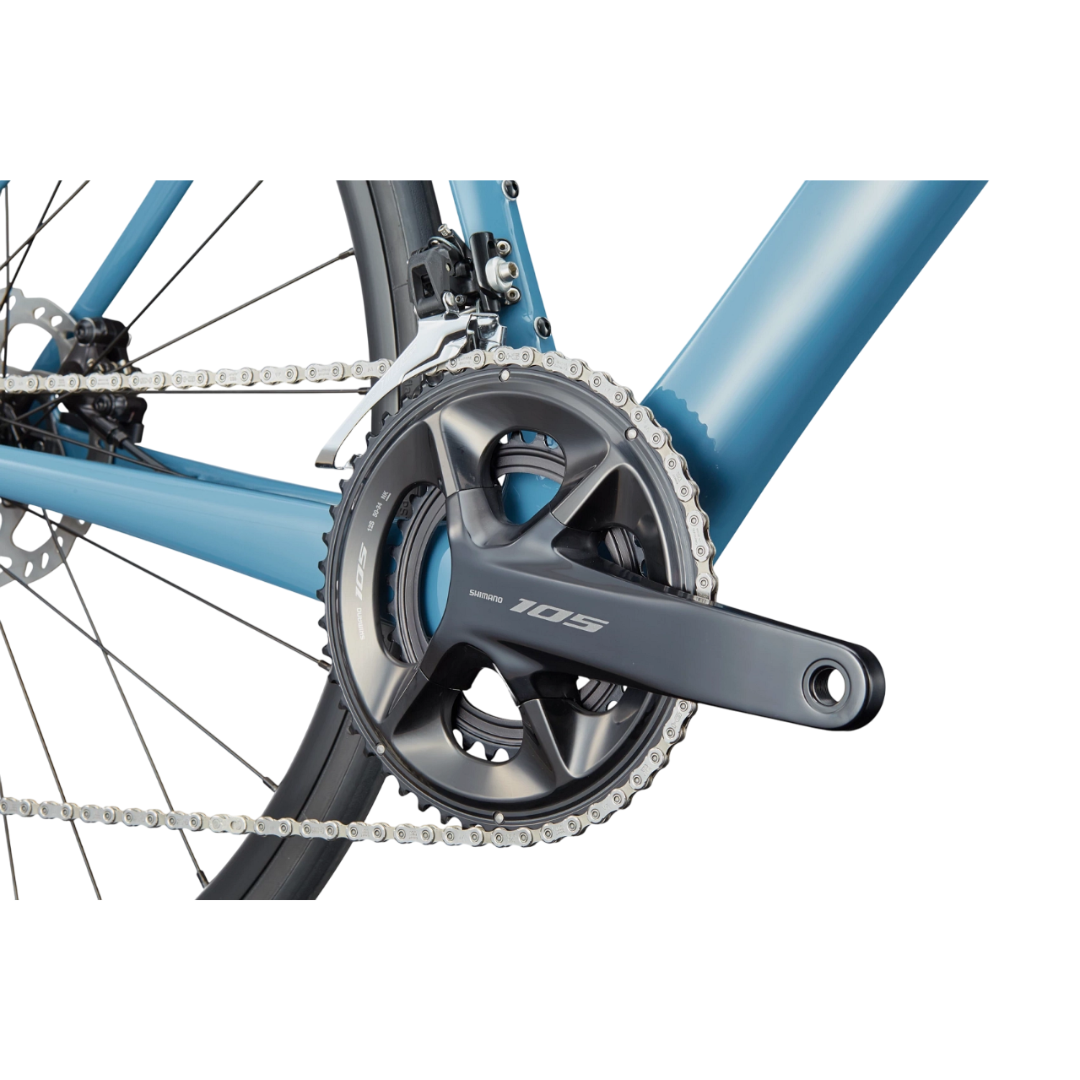

Crankset: Shimano 105 7100, 50/34 teeth.
-
Cassette: Shimano 105 R7100, 11-36, 12 speed.
-
Bottom bracket: Shimano BB-RS500, BSA threaded.
Brakes
-
Hydraulic disc brakes: Shimano 105 7170 with 160 mm RT70 rotors.
-
Brake levers: Shimano 105 7100, hydraulic.
Wheels
-
Rims: Maddux 3.0, 28 spokes.
-
Hubs: (F) Formula CL-712, 12x100 mm centerlock / (R) Formula RXC-400, 12x142 mm centerlock.
-
Spokes: Stainless steel, 14g.
-
Tires: Vittoria Zaffiro Pro Slick, 700x25c.
Components
-

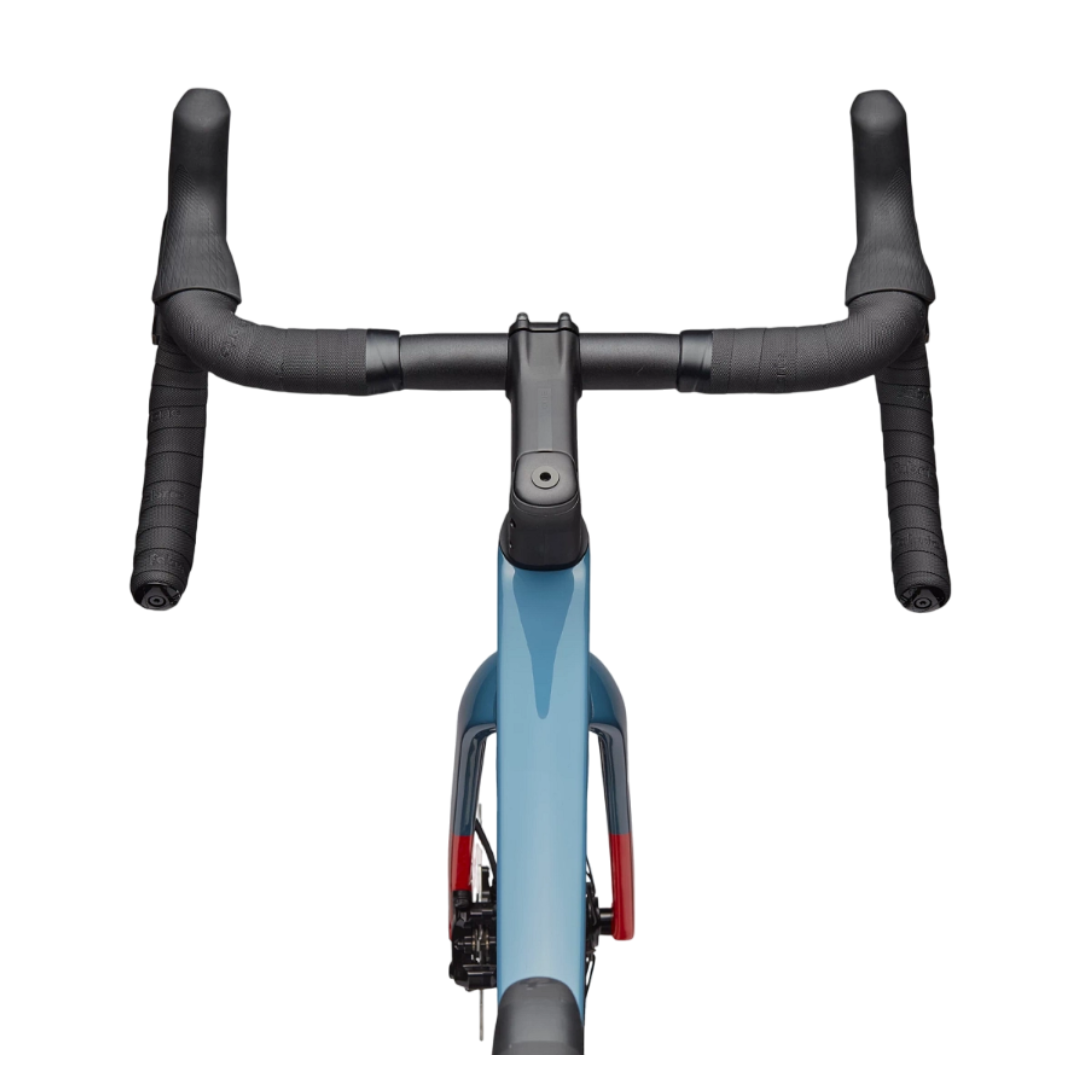

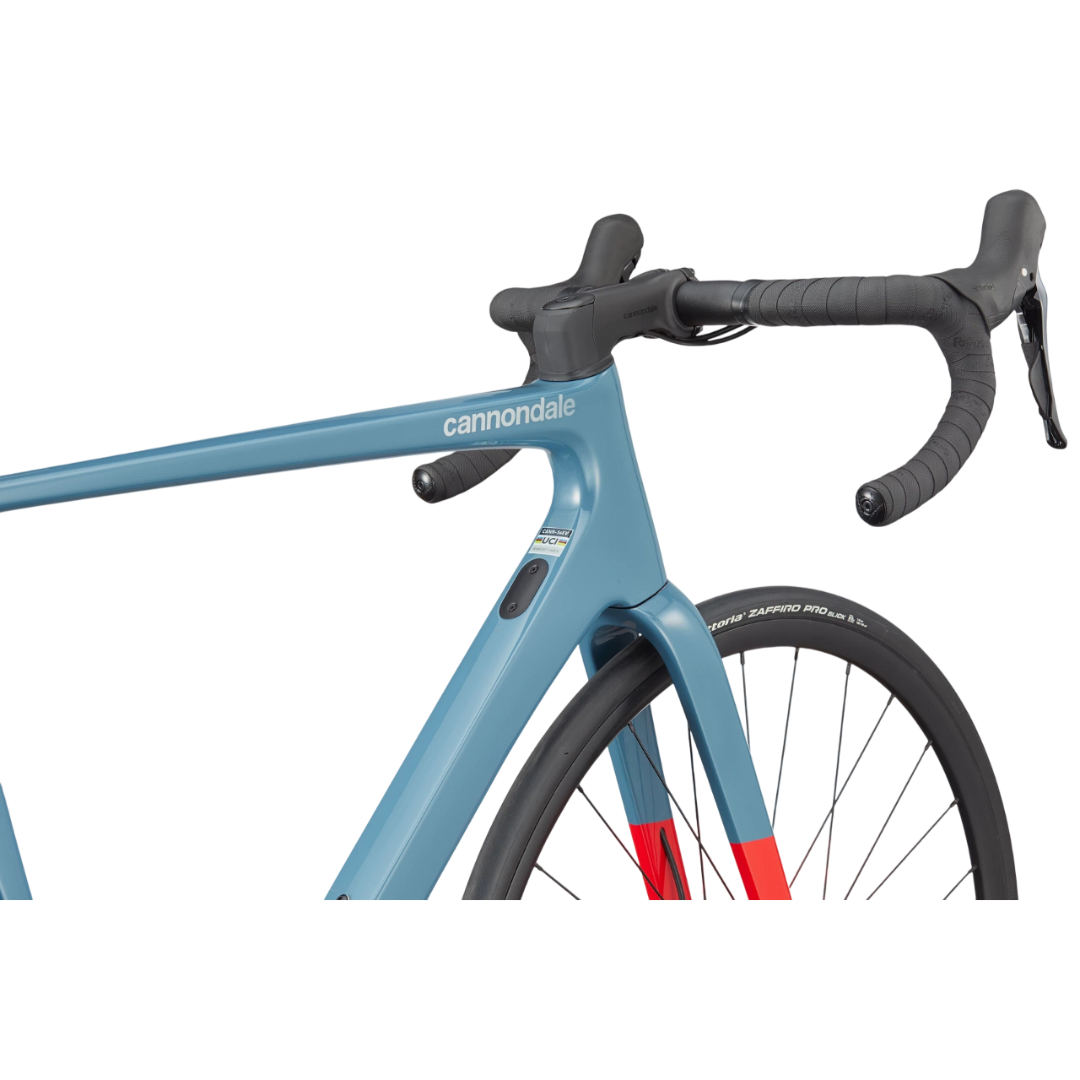

Handlebar: Vision Trimax Compact.
-
Stem: Cannondale C1 Conceal, alloy, 31.8 mm, -6°.
-
Handlebar tape: Cannondale Bar Tape, 3.5 mm.
-
Saddle: Prologo Nago RS STN, with stainless steel rails.
-
Seatpost: Cannondale C1 Aero 40 Carbon, 0 mm offset (44-48 cm), 20 mm (51-61 cm).
Connectivity
-
Cannondale Wheel Sensor – Tracks speed, distance, and performance in real time via the dedicated app.
Note Well
Technical specifications may change without notice depending on component availability.
Product images are for illustrative purposes only and may not exactly reflect the described features.
Discover the speed of the Cannondale SuperSix EVO 4! Perfect for those who want maximum performance without compromise.
Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly
A Complete Guide to Bike Sizes
Foreword: Not all bike sizes are the same
Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.
Bicycle adjustment margins
Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.
How to use size charts
We've created a simple guide to help you find the right bike size:
- Check out our size charts for each bike type.
- Learn more with specific tips to help you make the right choice.
Size Charts: Find Your Perfect Bike
Gravel and road bikes
Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.
| Cut
|
Recommended height
|
Horizontal tube length
|
| XS |
Up to 157 cm |
48-50 cm |
| S |
157-167 cm |
50-53 cm |
| M |
168-178 cm |
53-56 cm |
| THE |
178-185 cm |
56-58 cm |
| XL |
Over 185cm |
58-62 cm |
For gravel, measurements may vary slightly due to different geometries, but remain similar.
Mountain bike
MTBs are measured in inches, based on the seat tube.
| Cut
|
Recommended height
|
Size (in inches)
|
| XS |
Up to 157 cm |
14"-16" |
| S |
157-167 cm |
15"-17" |
| M |
168-178 cm |
16"-19" |
| THE |
178-185 cm |
18"-20" |
| XL |
Over 185cm |
20"-23" |
Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .
Children's bikes
The size depends on the size of the wheels, often associated with age:
| Age
|
Wheel Size
|
| 1-3 years |
12" |
| 2-4 years |
14" |
| 4-6 years |
16" |
| 5-8 years |
20" |
| 8-10 years |
24" |
| Over 10 years |
26"/27.5" |
What to do with half measures?
If you are between two sizes:
-
Comfort : Choose the larger size.
-
Performance : Go for the smaller size.
Final tips for choosing
-
Consult the manufacturer's instructions : Always check the brand's guidelines.
-
Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
-
Test the bike : If possible, test the model you intend to purchase.
