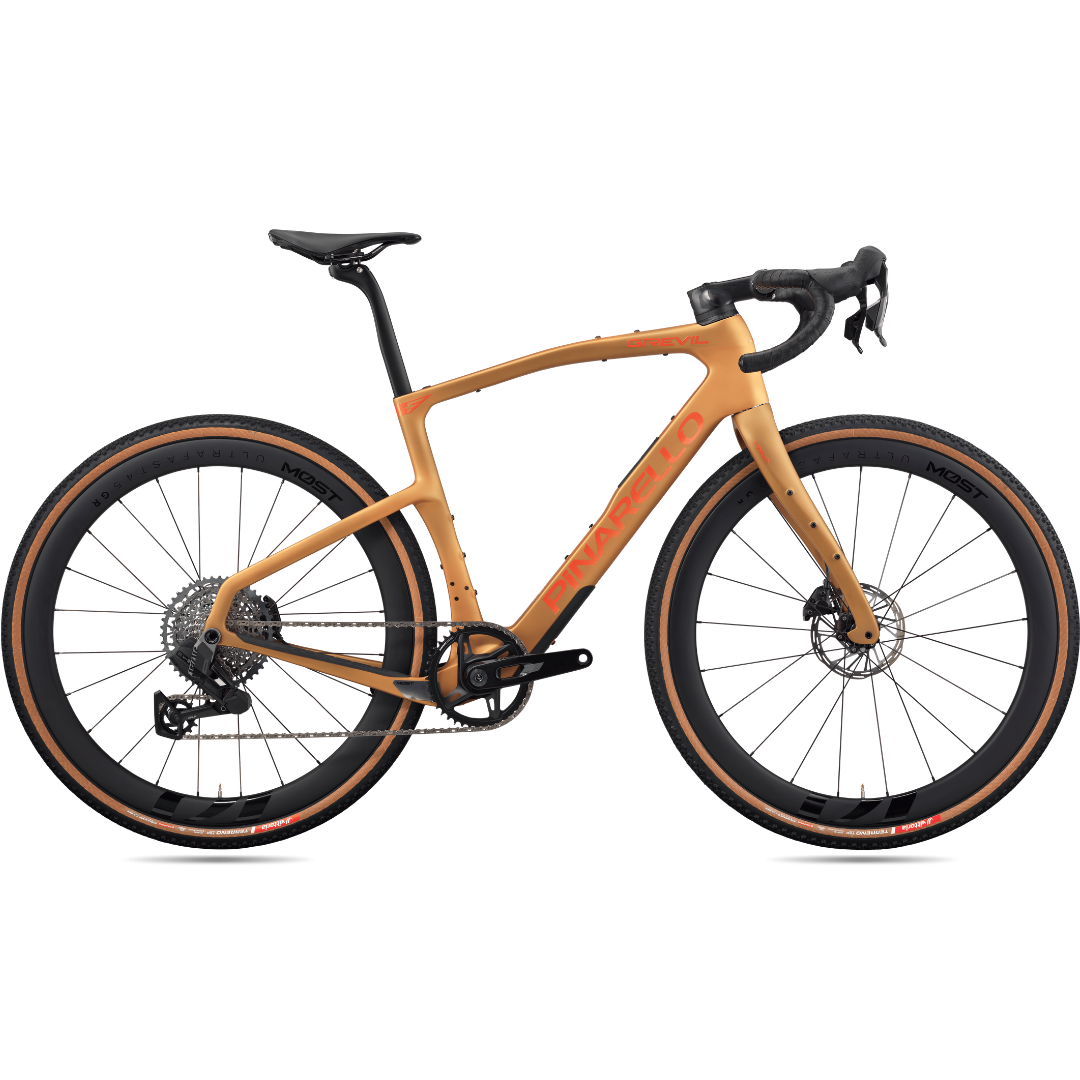

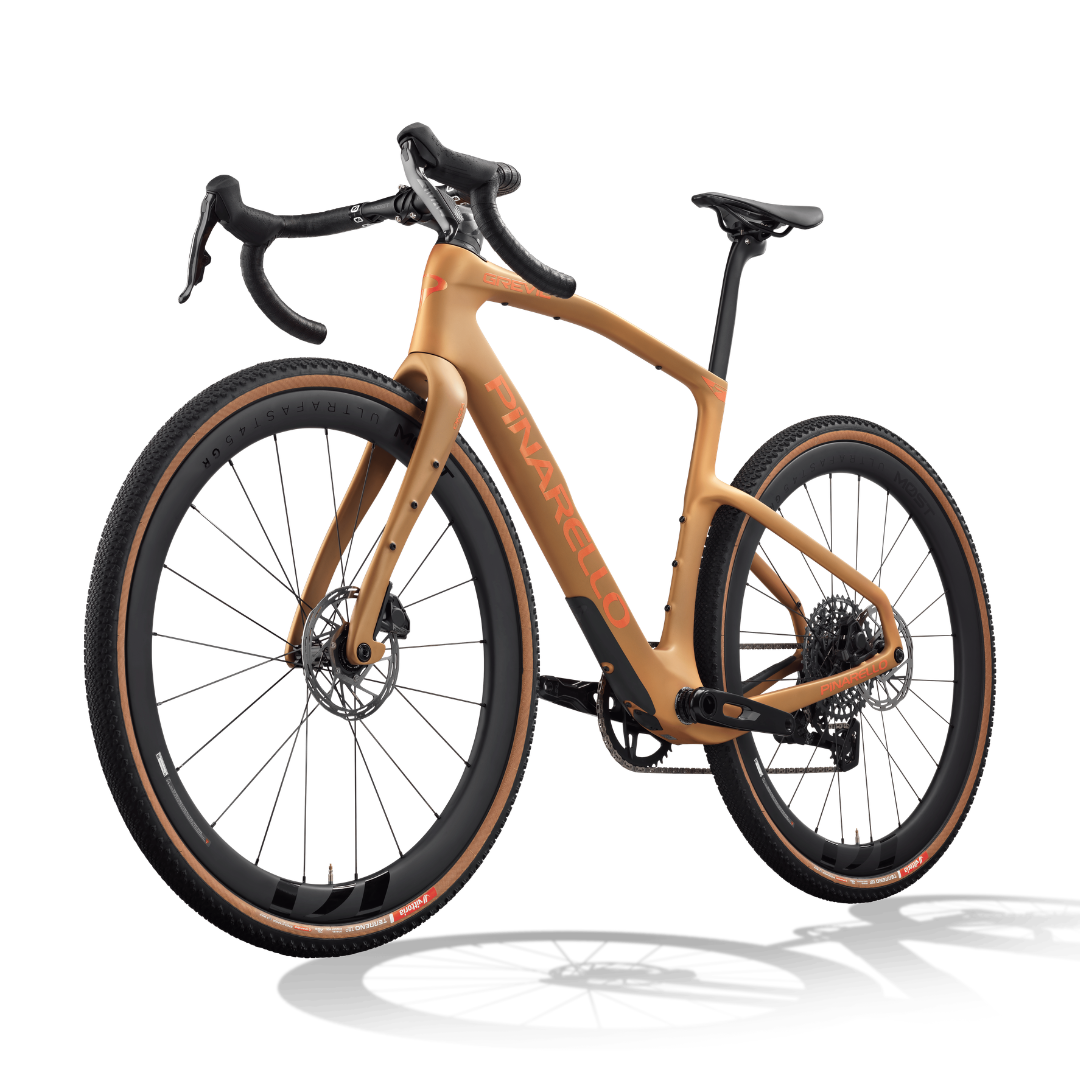

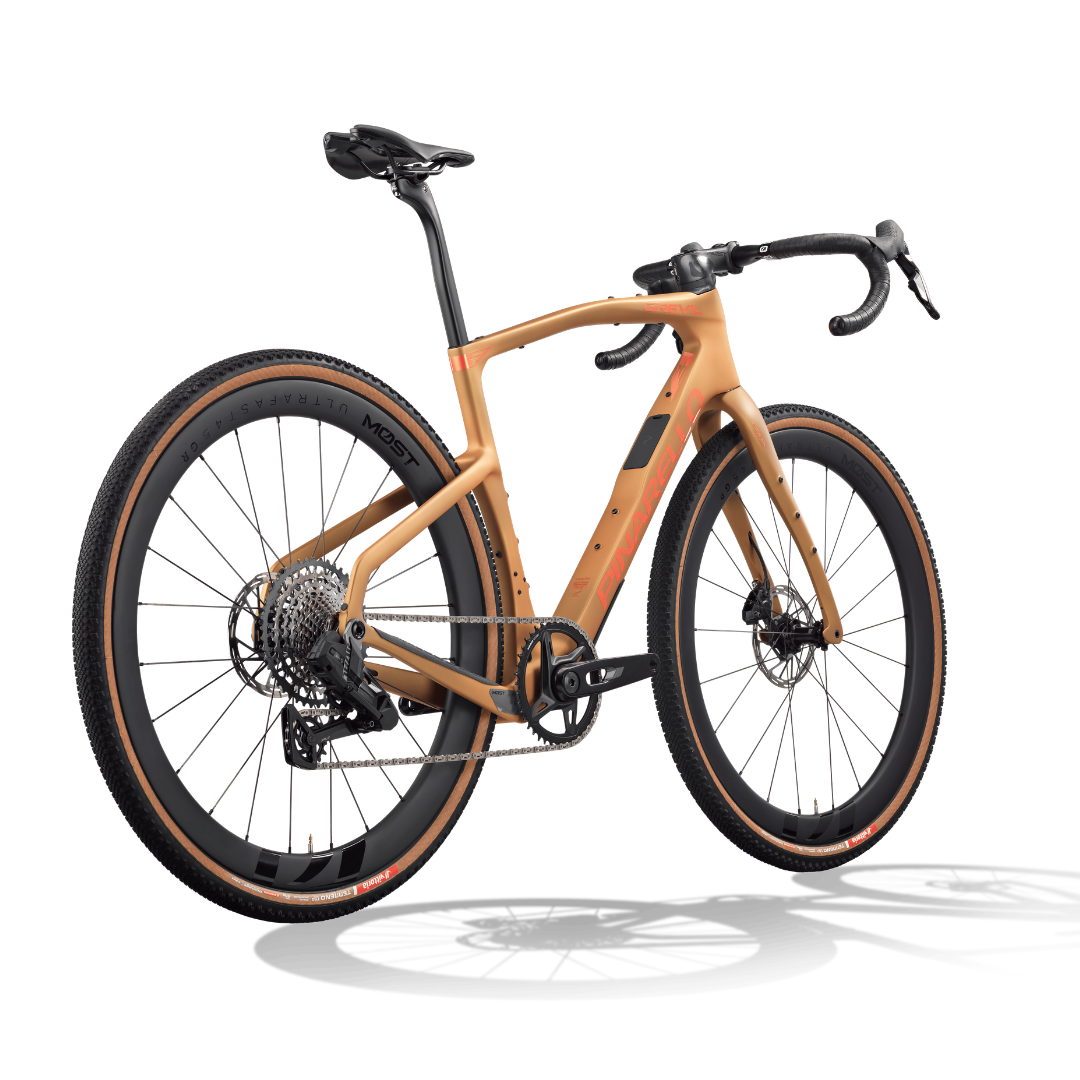

Gravel Bicycle Pinarello Grevil F5 SRAM Rival XPLR AXS
Unlimited performance, on every terrain
The Pinarello Grevil F5 SRAM Rival XPLR AXS represents the new evolution of high-performance gravel bikes: lighter, faster, and designed to tackle long distances in any condition.
Designed for endurance races and multi-day adventures, this bike combines aerodynamics, comfort, and versatility, offering the ideal solution for cyclists who want to compete and win on every type of terrain.
Advanced aerodynamics: SOLO DYNAMICS
The Solo Dynamics technology is developed to maximize efficiency in solo long-distance races. Every detail is designed to reduce drag and save precious watts.
Dedicated accessories include:
- Aerodynamic Gravel TT Bars
- Integrated frame bag
- Racing bento
- Tool bag
- Rack bag for ultra distance
Integrated frame bag with Fidlock system
The frame bag is designed to:
- maximum aerodynamics
- stable attachment via Fidlock magnetic system
- quick access during stops
A lightweight and secure solution even on the most technical terrains.
Gravel TT Bars: control and comfort
- Clamp system on rounded Jaguar handlebar
- Full reach and stack adjustment
- Integrated computer mount
- Adjustable tilt
Perfect for optimizing aerodynamic position on long distances.
Advanced comfort: adaptive seatpost and TWIN ARMS
Adaptive Seatpost
- 10 mm longitudinal flex
- Greater vibration absorption
- Reduced weight
TWIN ARMS Technology
The seat stays work in synergy with the seatpost to:
- improve comfort
- increase traction
- ensure stability on the roughest routes
Aerodynamic down tube with integrated storage
The down tube is designed to:
- improve aerodynamic efficiency with 750 ml water bottles
- integrate internal storage space
- allow access without removing the bottle cage
Includes an integrated tool bag, eliminating the need for a saddle bag and further improving performance.
Next-generation Onda fork
The Onda fork guarantees:
- better vibration absorption
- smoother and more precise handling
- reduced weight compared to the previous generation
Geometry
(Designed for gravel endurance performance and long-distance stability)
Full technical specifications
Frame set
-
Frame: Toray T700 UD
-
Fork: Onda F Fork with ForkFlap™, tapered steerer tube
Drivetrain
-
Crankset and chainrings: SRAM Rival AXS XPLR 1x13
-
Cassette: SRAM Rival
-
Chain: SRAM Rival
-
Bottom bracket: SRAM BB DUB Italian 70mm Road Wide
Brakes
-
Front brake: SRAM Rival 2-piston, 160 mm rotor
-
Rear brake: SRAM Rival 2-piston, 160 mm rotor
Cockpit
-
Handlebar: Jaguar XA GR TiCR
-
Stem: Tiger Alu Aero TiCR
-
Handlebar tape: Most UltraGrip Evo 3 mm black
-
Saddle: Most Lynx My26
-
Seatpost: D-Shape Seatpost
-
Seatpost clamp: collar clamp fastening
Wheels and tires
-
Tires: Vittoria Terreno T50 45
-
Wheels: Most Ultrafast 45 GR – 25 mm internal hooked rim
-
Axles: Most Ultra Light Custom Axle 12x100 & 12x142, tool-free removal
Note
Technical specifications such as handlebar size, gear ratios, and crank arm length can all be customized upon request based on availability.
Product images are for illustrative purposes only and may not exactly reflect the described features.
With the Pinarello Grevil F5 SRAM Rival XPLR AXS, every road becomes your race.
Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly
A Complete Guide to Bike Sizes
Foreword: Not all bike sizes are the same
Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.
Bicycle adjustment margins
Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.
How to use size charts
We've created a simple guide to help you find the right bike size:
- Check out our size charts for each bike type.
- Learn more with specific tips to help you make the right choice.
Size Charts: Find Your Perfect Bike
Gravel and road bikes
Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.
| Cut
|
Recommended height
|
Horizontal tube length
|
| XS |
Up to 157 cm |
48-50 cm |
| S |
157-167 cm |
50-53 cm |
| M |
168-178 cm |
53-56 cm |
| THE |
178-185 cm |
56-58 cm |
| XL |
Over 185cm |
58-62 cm |
For gravel, measurements may vary slightly due to different geometries, but remain similar.
Mountain bike
MTBs are measured in inches, based on the seat tube.
| Cut
|
Recommended height
|
Size (in inches)
|
| XS |
Up to 157 cm |
14"-16" |
| S |
157-167 cm |
15"-17" |
| M |
168-178 cm |
16"-19" |
| THE |
178-185 cm |
18"-20" |
| XL |
Over 185cm |
20"-23" |
Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .
Children's bikes
The size depends on the size of the wheels, often associated with age:
| Age
|
Wheel Size
|
| 1-3 years |
12" |
| 2-4 years |
14" |
| 4-6 years |
16" |
| 5-8 years |
20" |
| 8-10 years |
24" |
| Over 10 years |
26"/27.5" |
What to do with half measures?
If you are between two sizes:
-
Comfort : Choose the larger size.
-
Performance : Go for the smaller size.
Final tips for choosing
-
Consult the manufacturer's instructions : Always check the brand's guidelines.
-
Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
-
Test the bike : If possible, test the model you intend to purchase.
