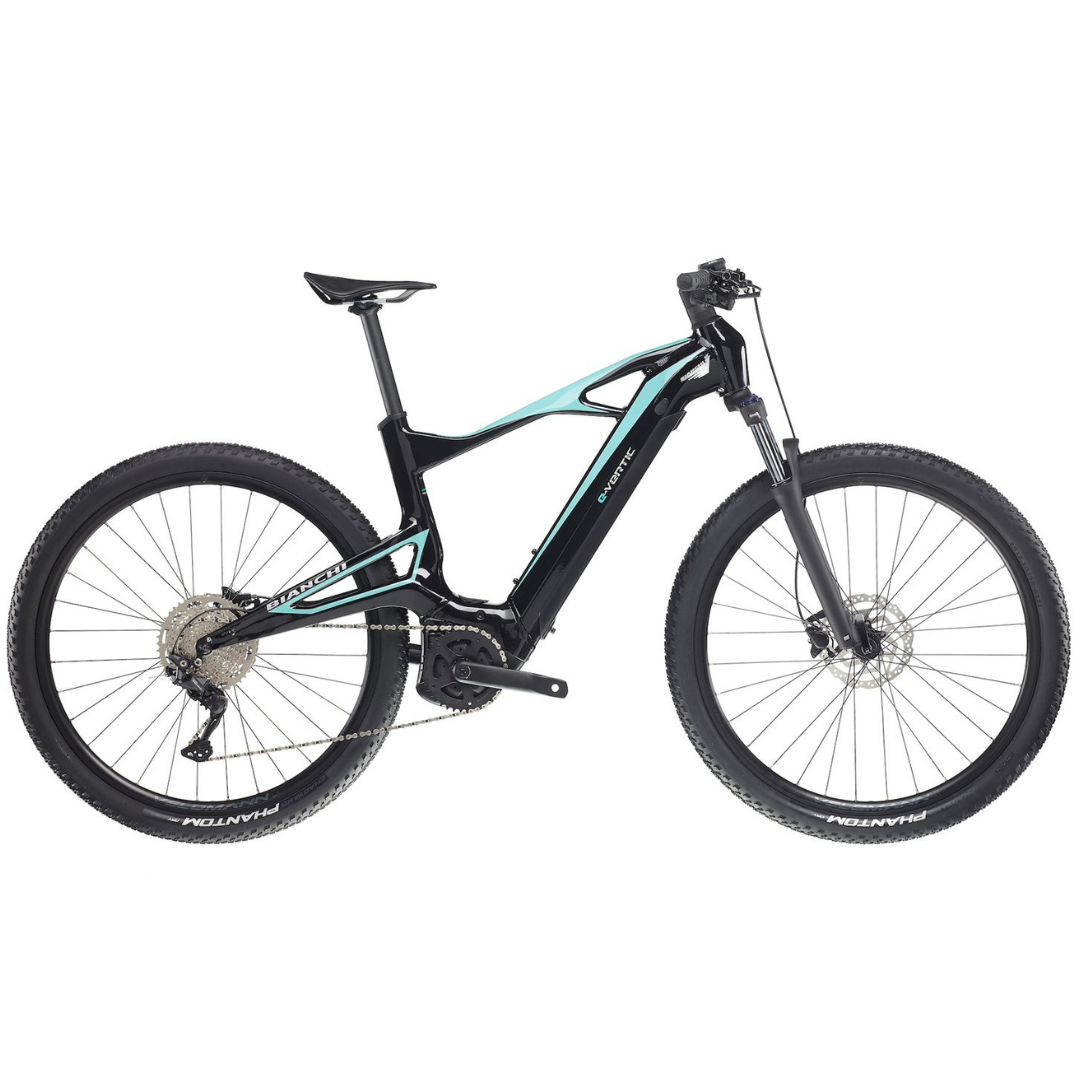

Bianchi e-Vertic X-Type Deore 10v Bicycle
The Bianchi e-Vertic X-Type Deore 10v is the perfect electric bike for off-road adventure enthusiasts. With its powerful Bosch system, lightweight aluminum frame, and high-quality components, it is designed to ensure high performance on any type of terrain. Ideal for those seeking reliability, sturdiness, and comfort, this e-MTB combines advanced technology and innovative design to provide you with maximum control and enjoyment on every ride.
Technical Specifications DEMO
New bicycles, still packaged.
Some models have slight paint defects, while others are free of imperfections.
If you have any doubts, contact us and we will send you the detailed photos, happy shopping.
Engine Unit:
-
Motor: Bosch Performance Line CX, 250W, 85Nm, with Purion display for intuitive control.
-
Battery: Bosch PowerTube of 625Wh, integrated into the frame for greater autonomy and a clean design.
Chassis:
-
Frame Kit: e-VERTIC X-Type ALU frame, quick release dropouts 9x135 mm, 180 mm post mount disc brake support, 120 mm front travel, internal cable routing for tidy management, compatible with 625Wh battery.
-
Fork: Suntour XCR34-AIR-Boost LOR DS 15QLC32-110, 29", with a travel of 120 mm, tapered HT of 1.5", thru-axle 15QLC32-110, compatible with rotors from 180 mm (minimum) to 203 mm (maximum), 34 mm stanchions, LOR air damping system.
-
Steering series: Acros AZF-575 1.8" top / 1.5", with internal cable routing.
Transmission:
-
Shift Commands: Shimano SL-M4100-R DEORE, 10 speed.
-
Change: Shimano RD-M4120 DEORE SGS, compatible with 10 and 11 speeds.
-
Crankset: FSA CK-320/IS/Gen4 E-Bike Diecast ISIS, length 165 mm, made of die-cast aluminum.
-
Central Movement: Included in the Bosch motor system.
-
Chain: KMC e10S NPBK, optimized for e-bike.
Brakes:
-
Brakes: Promax DSK-925, a hydraulic disc for powerful and precise braking.
-
Discs: Promax DSK-925, 180 mm, with center lock system.
Wheels and Tires:
-
Wheels: Velomann E-Sport Tubeless Ready 29", with dimensions 622x25 and 32 holes.
-
Rear Hub: Formula CL-1422, compatible with Shimano MTB (8/9/10/11 speed), OLD 135 mm, axle 145 mm.
-
Front Hub: Formula CL-811, center lock, 32 holes, 15x110 mm TA.
-
Tires: Chaoyang Phantom Dry 29x2.3, 60 TPI, for excellent traction and durability.
Cockpit:
-
Handlebar Clamp: Velomann Viper0, length 60 mm, diameter 31.8 mm, compatible 1"1/8.
-
Handlebar Bend: Velomann, width 740 mm, diameter 31.8 mm, rise 15 mm, backsweep 9°.
-
Grips: T-One Rock T-GP34, in TPR, length 130 mm, with aluminum clamps.
Saddle and Seat Post:
-
Seatpost: Velomann, diameter 31.6 mm, zero offset. Variable length: 300 mm for size 43, 350 mm for size 48, 400 mm for size 53.
-
Saddle: Velomann GND Full-fit Start Up, carbon steel rail, dimensions 262x145 mm.
Please note
Technical specifications may change without notice based on component availability.
The product images are purely indicative and may not exactly reflect the described features.
Discover the power, control, and comfort of the Bianchi e-Vertic X-Type Deore 10v and experience off-road like never before!
Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly
A Complete Guide to Bike Sizes
Foreword: Not all bike sizes are the same
Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.
Bicycle adjustment margins
Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.
How to use size charts
We've created a simple guide to help you find the right bike size:
- Check out our size charts for each bike type.
- Learn more with specific tips to help you make the right choice.
Size Charts: Find Your Perfect Bike
Gravel and road bikes
Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.
| Cut
|
Recommended height
|
Horizontal tube length
|
| XS |
Up to 157 cm |
48-50 cm |
| S |
157-167 cm |
50-53 cm |
| M |
168-178 cm |
53-56 cm |
| THE |
178-185 cm |
56-58 cm |
| XL |
Over 185cm |
58-62 cm |
For gravel, measurements may vary slightly due to different geometries, but remain similar.
Mountain bike
MTBs are measured in inches, based on the seat tube.
| Cut
|
Recommended height
|
Size (in inches)
|
| XS |
Up to 157 cm |
14"-16" |
| S |
157-167 cm |
15"-17" |
| M |
168-178 cm |
16"-19" |
| THE |
178-185 cm |
18"-20" |
| XL |
Over 185cm |
20"-23" |
Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .
Children's bikes
The size depends on the size of the wheels, often associated with age:
| Age
|
Wheel Size
|
| 1-3 years |
12" |
| 2-4 years |
14" |
| 4-6 years |
16" |
| 5-8 years |
20" |
| 8-10 years |
24" |
| Over 10 years |
26"/27.5" |
What to do with half measures?
If you are between two sizes:
-
Comfort : Choose the larger size.
-
Performance : Go for the smaller size.
Final tips for choosing
-
Consult the manufacturer's instructions : Always check the brand's guidelines.
-
Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
-
Test the bike : If possible, test the model you intend to purchase.
