Technical specifications
Chassis
-
Frameset : IMPULSO RC Disc brake specs: Flat mount 140/160 Standard lower brake: PressFit 86.5 X Ø41 Rear axle: Thru axle 12 OLD (lockring size): 142 mm Front derailleur: Braze-on Type Rear derailleur: SRAM UDH Hang type
- Fork: Bianchi Impulso Integrated Fork Disc Brake Spec: Flat Mount 140/160 Front Axle: Thru Axle 12 OLD (Lock Bar Size): 100mm Wheel Clearance: ETRTO 622-42mm Head Tube Diameter: 1 1/8". Material: Carbon Fiber
- Headset: Bianchi Custom Acros ICR (integrated cable routing)
Transmission
-
Shifters: Shiamno GRX, ST-RX825
-
Shifter: Shimano GRX RD-RX825
- Derailleur: Shimano GRX FD-RX825
- Crankset: Shimano GRX 820 FC-RX820 48-31T. 4iiii Precision 3, single side powermeter Crank: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
- Bottom bracket: Shimano SM-BB72-41B, press fit
- Chain: Shimano CN-M7100
- Cassette: Shimano CS-HG710-12 speed, 11-36T Driver body Interface: HG11
Brakes
- Brakes: Shimano hydraulic disc, BR-RX820
- Discs: Shimano RT-CL800 IceTech Hub Interface: Centerlock Diameter: 160mm (Front & Rear)
Wheels
- Wheels: Reparto Corse RC43 high modulus carbon rims with 3K finish sealed cartridge bearings with CERAMIC balls compatibility HG FW body / XDR FW body ASTM classification: 2 tire compatibility: Tubeless ready and clincher
- Tires: Pirelli Cinturato Gravel RC, 700 x 40c, 60TPI- TLR, folding, Tan sidewall
Handlebar
- Bend: Reparto Corse AeroFlare Flare: 16° Drop: 120mm reach: 80mm Headset diameter: 1 1/8"". Handlebar sizes: 90/400-SX(47); 100/400-SM(51); 110/420-MD(55)-LG(58); 120/440-XL(61) Material: HM-HS Carbon fiber composite
- Tape/Grips : Bianchi Arrow 2.5mm thick, black
Saddle
- Seatpost: Bianchi Custom D-Shape Offset: 20mm Seatpost Lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 380mm-LG(58) XL(61) Material: HM-HS Carbon Fiber Composite
- Saddle: Bianchi RC139 Carbon Inserts PWR gel, carbon fiber shell, carbon rail, length: 250 mm, width: 139 mm, weight: 145g
Specifications are subject to change without notice based on component availability.

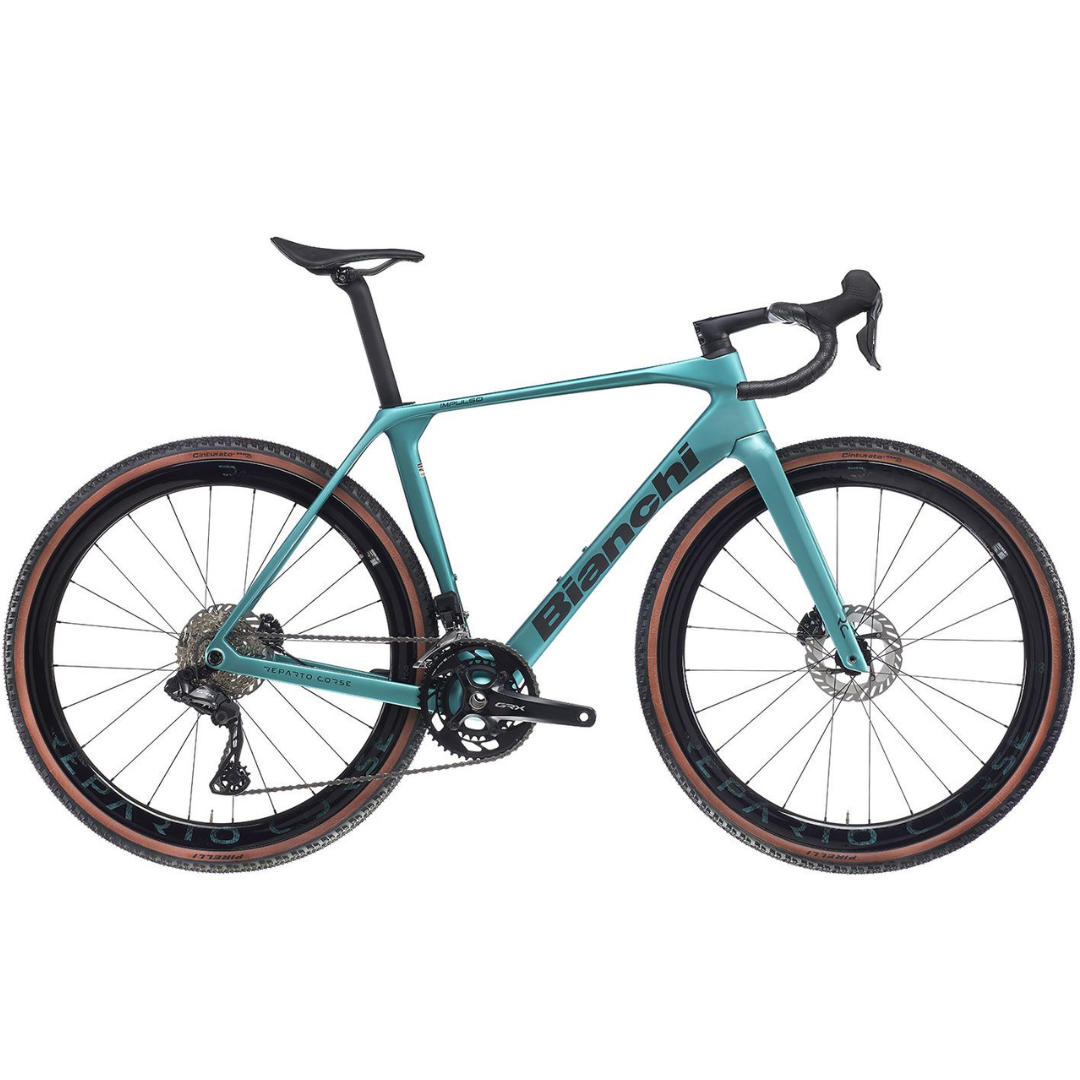

The image is purely indicative and may not fully reflect the characteristics of the product .
