Bianchi Infinito 105 12V – Comfort and performance without compromise

The perfect endurance for long distances

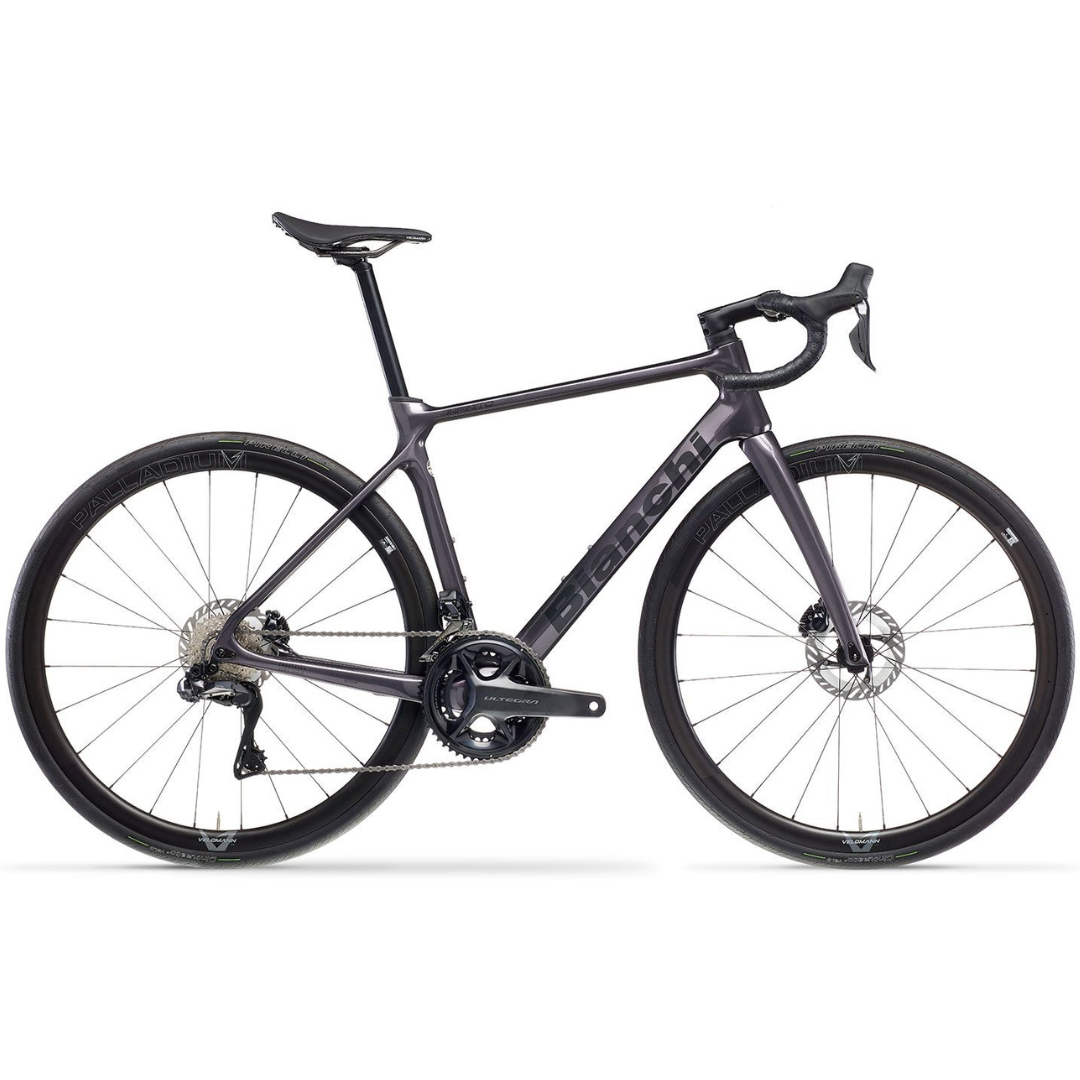

The Bianchi Infinito 105 12v is the perfect bicycle for those seeking maximum comfort without sacrificing speed. Thanks to the high-performance carbon frame, the Shimano 105 12-speed drivetrain, and the hydraulic disc brakes, it is the ideal companion for gran fondo, long rides, and outings on any type of road.

Where it excels:

• Endurance paths and long distances
• Comfort and stability on any terrain
• Reliable performance on climbs and descents

Why choose it:

• Bianchi Infinito Carbon Frame – Lightweight, aerodynamic, and comfortable carbon structure, compatible with tires up to 32 mm.
• Shimano 105 12-speed transmission – Smooth and precise shifts to tackle any route.
• Shimano BR-R7170 hydraulic disc brakes – Excellent control and safety even in difficult conditions.
• Velomann alloy wheels with a 30 mm profile – Optimal smoothness and stability on long rides.
• Pirelli P7 Sport Tires 32 mm – Exceptional grip and comfort on the road.

Technical specifications

Frame Kit

• Frame: Infinito Carbon ICR, steering 1.5" - 1.5", disc brake, compatible with mechanical and electronic transmission, clearance up to 32 mm, PressFit 86.5x41 mm bottom bracket, dropout 12x142 mm with thru axle.
• Fork: Full Carbon ICR, 1.5" steerer, 12x100 mm thru-axle.
• Steering series: Acros/FSA with integrated cable routing type ICR.

Transmission

• Light shift: Shimano 105 ST-R7120, 12 speeds, hydraulic disc brake.
• Rear derailleur: Shimano 105 RD-R7100, 12 speeds, max 36T.
• Front derailleur: Shimano 105 FD-R7100, 12 speeds.
• Crankset: Shimano 105 FC-R7100, Hollowtech II, 12 speeds, 50/34T. Crank arms: 170 mm (sizes 47-53 cm), 172.5 mm (55-59 cm), 175 mm (61 cm).
• Central movement: Shimano KSMBB7241B PressFit.
• Chain: Shimano CN-M6100, 12 speed.
• Cassette: Shimano 105 CS-R7100, 12 speeds, 11-34T. Gears: 11-12-13-14-15-17-19-21-24-27-30-34T.

Brakes

• Hydraulic disc brakes: Shimano BR-R7170.
• Discs: Shimano SM-RT70, 160 mm front and rear.

Wheels

• Wheels: Velomann alloy, 30 mm profile, compatible with disc brakes.
• Hubs:
  • Front: HH12, through axle.
  • Rear: HH12/142, through pin.
• Raggi: J-Bend, 2 mm round, black.
• Tires: Pirelli P7 Sport 32 mm (622-32), TechBelt, 60 TPI.

Components

• Handlebar attack: Velomann Viper in aluminum 6061, angle -7°, oversize diameter 1 1/8".
  • Lengths: 90 mm (47 cm), 100 mm (50-53 cm), 110 mm (55-57 cm), 120 mm (59-61 cm).
• Handlebar: Velomann Compact Flat Top in 6061 aluminum, diameter 31.8 mm, reach 80 mm, drop 130 mm.
  • Measurements: 400 mm (47-53 cm), 420 mm (55-57 cm), 440 mm (59-61 cm).
• Handlebar tape: Bianchi Hexagon Tape, 2.5 mm, black color.

Saddle & Seatpost

• Seatpost: Velomann aluminum 2014, custom D-Shape design, 6061 aluminum clamp, setback 25 mm.
  • Length: 350 mm (47-57 cm), 380 mm (59-61 cm).
• Saddle: Velomann Mitora139, 139x250 mm, steel AISI rails.

Please note

Technical specifications may change without notice based on component availability.
The product images are purely indicative and may not exactly reflect the described features.

With the Bianchi DNA endurance, this bicycle offers comfort, reliability, and superior performance. Ideal for cyclists who want to ride longer, with maximum control and without getting tired.
