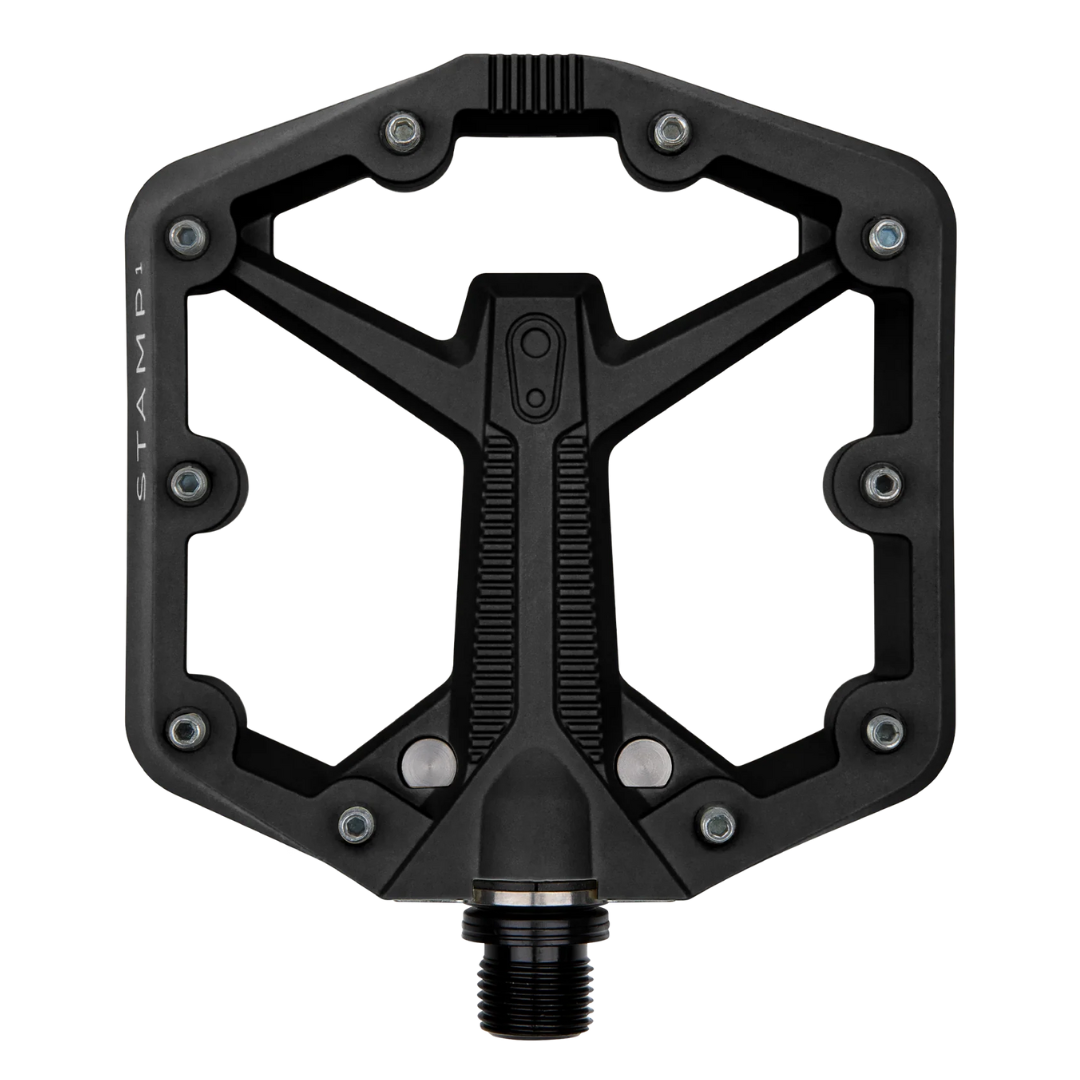

The Crankbrothers Stamp 1 Small Gen 2 pedals are designed to deliver exceptional performance, with a concave design that enhances control and safety during your rides. These pedals are ideal for those seeking a balance between durability, grip, and comfort, whether for beginners or experienced cyclists. Built to last, the Stamp 1 Gen 2 pedals provide a great trail experience thanks to their new design and high-quality materials.
I Crankbrothers Stamp 1 Small Gen 2 pedals are designed to provide a secure and comfortable grip on any terrain, thanks to their concave design that offers optimal foot support. With a robust composite material body, these pedals are lightweight yet durable, and offer long-lasting performance thanks to the IGUS LL-glide bearings, which ensure impeccable smoothness and minimal maintenance.
The new replaceable pin design ensures an optimal grip during pedaling, with 10 pins per pedal, easily replaceable for a personalized and lasting experience. The length of the pins (23 mm internal and 25 mm external) is designed to maximize grip, providing stability even on the roughest terrain.
The pedal is extremely stable thanks to the thin and concave profile that reduces the risk of slipping, while the support surface of 100 mm x 100 mm offers the right balance between comfort and performance. The Stamp Small pedal is recommended for those with a shoe size US 3-10 (M) / EU 37-43.5, while the Stamp Large model is ideal for sizes US 10-15 (M) / EU 43.5-49.
Technical Features:
Optimal surface size: Designed to fit perfectly to the shoe size
Thin concave profile: Pedal body height from 13.5 mm to 15.5 mm
New design of replaceable pins: 10 pins per pedal for optimal grip and easy replacement
Updated IGUS bearings and sealing system: Fully maintainable bearings for a longer lifespan
Stamp Small: Recommended for shoe sizes US 3-10 (M) // EU 37-43.5
Stamp Large: Recommended for shoe sizes US 10-15 (M) // EU 43.5-49
Specifications:
Surface: 100 mm x 100 mm
Shoe size: US 3-10 // EU 35-43.5
Warranty: 5 years
Weight: 321 g per pair
Type of internal bearing: IGUS LL-glide bearings
Type of external bearing: IGUS LL-glide bearings
Body Material: Composite
Tension pin: 10 replaceable pins for pedal
Length of the pins: 23 mm internal, 25 mm external
Axis Material: SCM 435 Forged Chromoly Steel
