Cannondale Trail 5 Bicycle - Graphite

CHF 545.00 CHF 701.00

by Cannondale

Type: bike-mountain-bike

SKU: C26551M10SM

- Returned within 14 days
- Secure payments
- Price valid only for online purchase

Description
Assembly
Find the Size

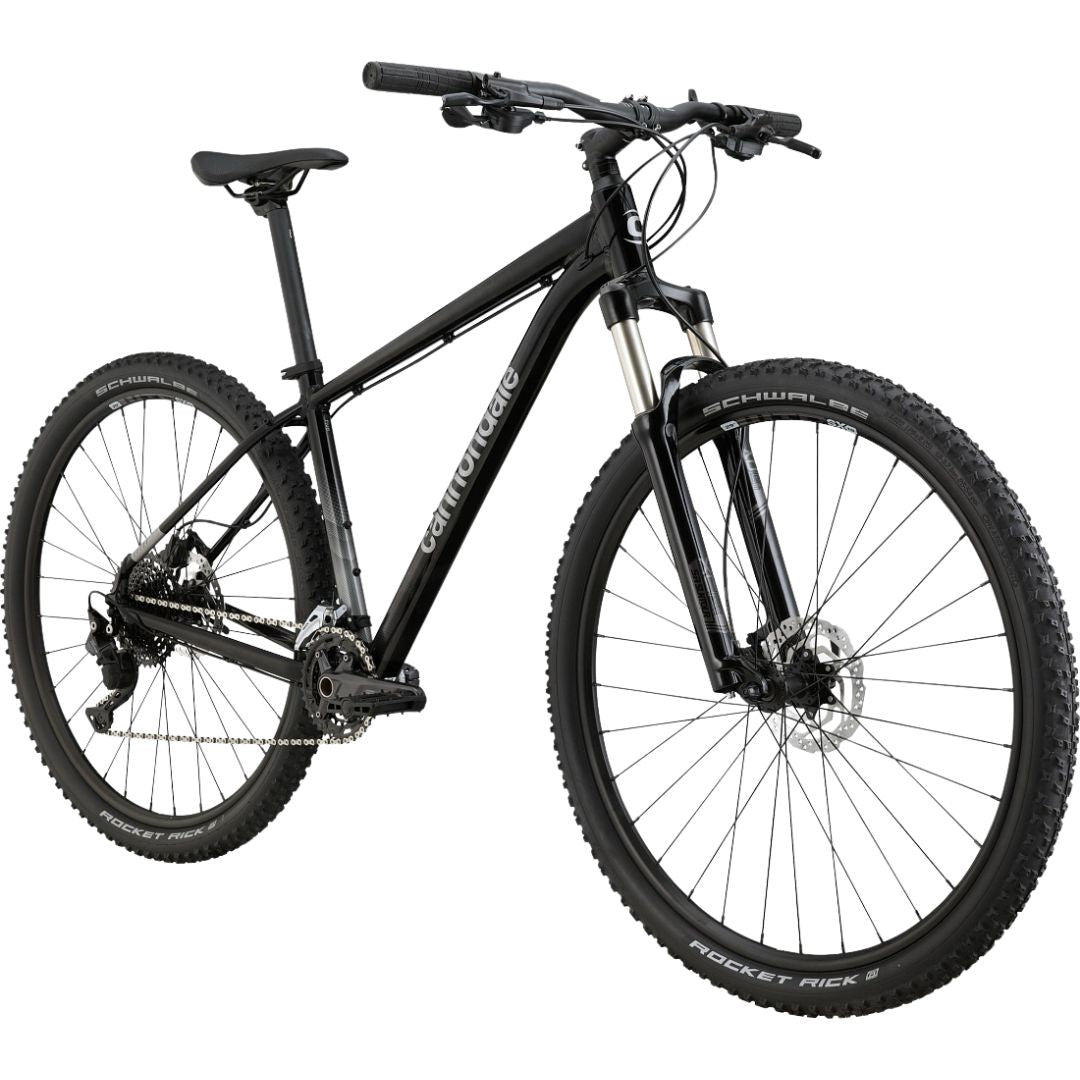

Cannondale Trail 5 – Conquer the trails with style and power!

The perfect balance between performance and fun

The Cannondale Trail 5 is a versatile and high-performance mountain bike, ideal for those who want to confidently tackle dirt trails, gravel roads, and off-road paths. Thanks to its SmartForm C3 aluminum frame, 100 mm SR Suntour XCR32 RL suspension fork with remote lockout, and 10-speed Shimano Deore drivetrain, it offers a perfect mix of comfort, precision, and control.

Where it excels:

Light trails and dirt roads
White roads and off-road paths
Adventurous outings on two wheels

Why choose it:

SmartForm C3 Alloy Frame – Durable and lightweight, designed to ensure agility and responsiveness.
SR Suntour XCR32 RL Fork, 100 mm with remote lockout – Maximum shock absorption capacity for superior comfort.

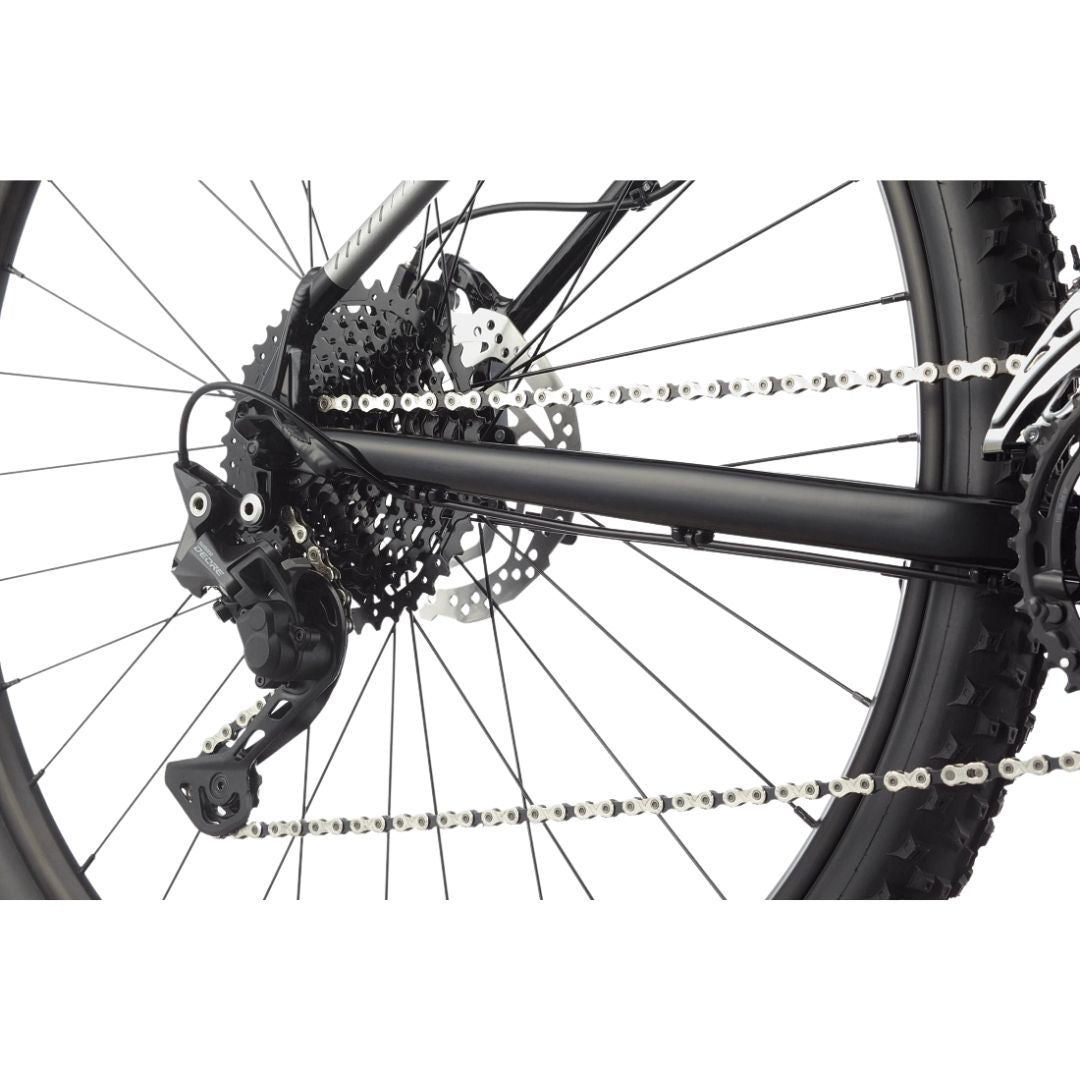

Shimano Deore 10-speed transmission – Reliable performance with precise and smooth shifting.
Tektro M275 hydraulic disc brakes – Consistent braking power in every condition.
29" wheels with Schwalbe Rocket Rick tires – Exceptional grip to confidently tackle any type of terrain.

Technical specifications

Frame Kit

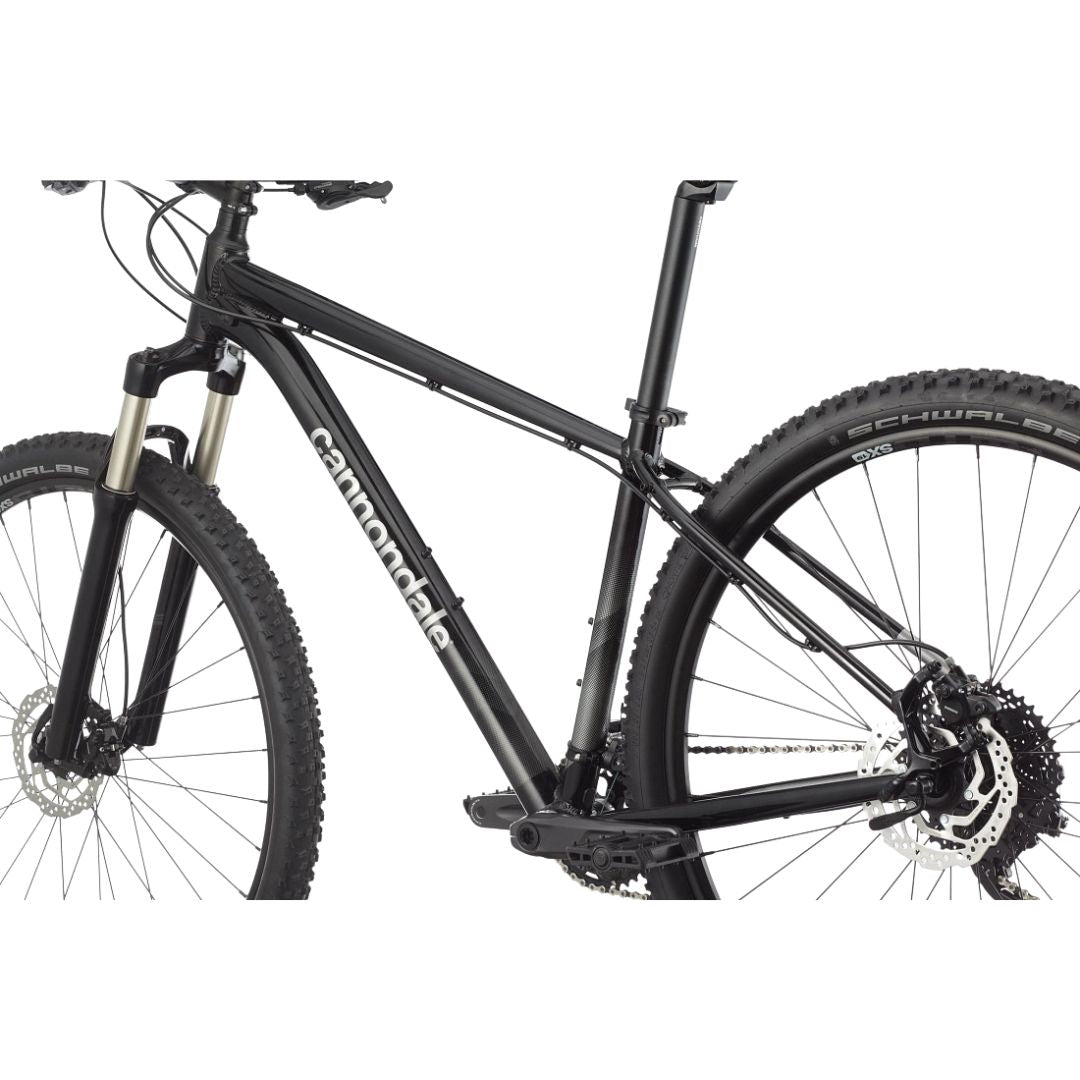

Frame: SmartForm C3 Alloy, SAVE technology, 1-1/8" steering, internal cable routing StraightShot, provision for dropper seatpost, BSA-73 bottom bracket.
Fork: SR Suntour XCR32 RL, travel 100 mm, remote lockout, offset 42 mm (27.5") and 46 mm (29").
Steering series: Semi-integrated, 1-1/8".

Transmission

Shift lever: Shimano Deore M4100, 10 speed.
Rear derailleur: Shimano Deore M4100, 10 speed.
Front derailleur: Shimano Deore M4100, clamp-on 34.9 mm.
Crankset: Shimano M4100, double chainring 36/26.
Central movement: Sealed bearings, square axle.
Chain: KMC X10, 10 speed.
Cassette: Sunrace, 10 speed, 11-42T.

Brakes

Hydraulic disc brakes: Tektro M275.
Discs: 160 mm front and rear.

Wheels

Wheels: WTB SX19, 32 holes.
Front hub: Shimano HB-TX505.
Rear hub: Shimano FH-TX505.
Raggi: Stainless steel 14g.
Tires: Schwalbe Rocket Rick, 29x2.25" (or 27.5x2.25" for sizes XS and SM), K-Guard technology.

Components

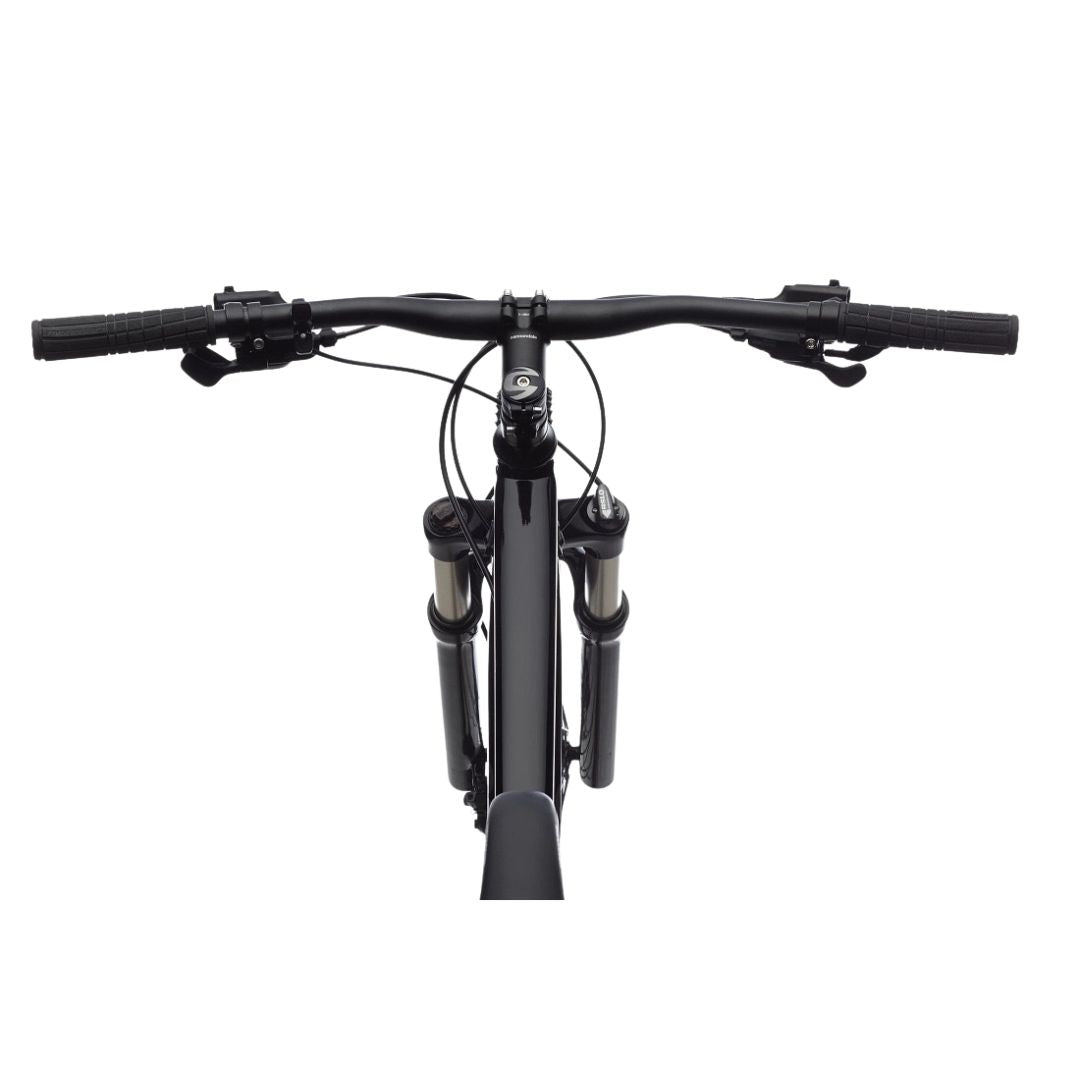

Handlebar: Cannondale Riser, 6061 Alloy, Ø 31.8 mm, rise 25 mm, width 720 mm.
Handlebar attack: Aluminum 6061, Ø 31.8 mm, inclination 7°.
Grips: Cannondale Dual-Density, for an ergonomic and comfortable hold.
Saddle: Cannondale Stage 3, designed for maximum comfort.
Seatpost: Cannondale 3, made of 6061 aluminum, Ø 31.6 mm, length 350 mm (XS-SM), 400 mm (MD-XL).

Please note

Technical specifications may change without notice based on component availability.
The product images are purely indicative and may not exactly reflect the described features.

"With a geometry designed for maximum control and high-quality components, the Cannondale Trail 5 is the ideal choice for those who want to explore the world of MTB with grit and reliability."

Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly

A Complete Guide to Bike Sizes

Foreword: Not all bike sizes are the same

Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.

Bicycle adjustment margins

Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.

How to use size charts

We've created a simple guide to help you find the right bike size:

Check out our size charts for each bike type.
Learn more with specific tips to help you make the right choice.

Size Charts: Find Your Perfect Bike

Gravel and road bikes

Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.

Cut	Recommended height	Horizontal tube length
XS	Up to 157 cm	48-50 cm
S	157-167 cm	50-53 cm
M	168-178 cm	53-56 cm
THE	178-185 cm	56-58 cm
XL	Over 185cm	58-62 cm

For gravel, measurements may vary slightly due to different geometries, but remain similar.

Mountain bike

MTBs are measured in inches, based on the seat tube.

Cut	Recommended height	Size (in inches)
XS	Up to 157 cm	14"-16"
S	157-167 cm	15"-17"
M	168-178 cm	16"-19"
THE	178-185 cm	18"-20"
XL	Over 185cm	20"-23"

Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .

Children's bikes

The size depends on the size of the wheels, often associated with age:

Age	Wheel Size
1-3 years	12"
2-4 years	14"
4-6 years	16"
5-8 years	20"
8-10 years	24"
Over 10 years	26"/27.5"

What to do with half measures?

If you are between two sizes:

Comfort : Choose the larger size.
Performance : Go for the smaller size.

Final tips for choosing

Consult the manufacturer's instructions : Always check the brand's guidelines.
Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
Test the bike : If possible, test the model you intend to purchase.
