Specialized Turbo Vado 3 EVO 4.0

Specialized Turbo Vado 3 EVO 4.0: power, comfort, and range for every journey

The Specialized Turbo Vado 3 EVO 4.0 is a full-power all-terrain e-bike designed for those who want to go further, tackle every day with greater confidence, and turn daily commutes into new opportunities for exploration.

From urban paths to rougher roads, and even impromptu detours, the Turbo Vado 3 EVO 4.0 offers smooth, natural assistance that follows every movement. The system inherits the Levo 4's SuperNatural DNA, with intuitive response and surprising range across different types of terrain.

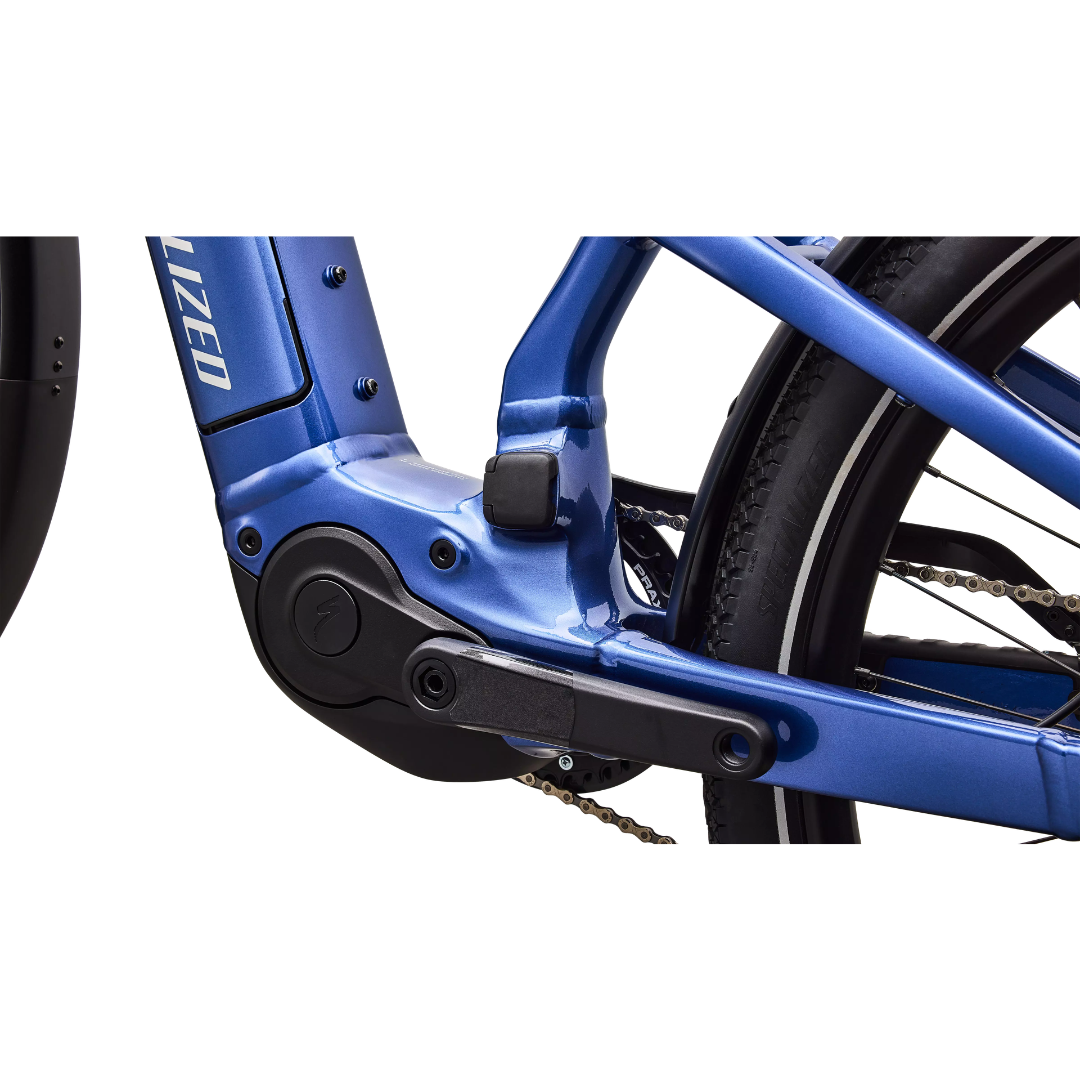

The heart of the bike is the Specialized 3.1 motor with 810 W and 105 Nm of torque, paired with an integrated Specialized Turbo 840 Wh battery, offering a range of up to 150 km.

The all-terrain equipment includes Specialized Hemisphere 2.6" tires, an SR Suntour suspension fork, and a suspension seat post, ensuring comfort, stability, and control even when the terrain becomes more challenging.

On the technology front, we find a customizable color touchscreen display, the Turbo System Lock, battery lock with integrated Apple Find My, and a practical USB-C port integrated into the stem for charging smartphones.

The standard equipment is particularly comprehensive and also includes fenders, front and rear lights, a rear rack, kickstand, bell, lock, SWAT system, and anti-slip pedals.

Main Features

• Usage: full-power all-terrain e-bike
• Motor: Specialized 3.1, 810 W, 105 Nm
• Battery: Integrated Specialized Turbo 840 Wh
• Range: up to 150 km
• Tires: Specialized Hemisphere all-terrain 27.5 x 2.6"
• Display: Customizable color touchscreen display
• Anti-theft: Turbo System Lock and battery lock
• Location: Integrated Apple Find My
• Smartphone charging: USB-C port integrated into the side of the touchscreen
• Gears: Shimano CUES 9-speed
• Brakes: Shimano BR-MT200, 180 mm hydraulic disc
• Fork: SR Suntour suspension with up to 120 mm travel
• Seatpost: Suspension, 40 mm travel
• Rear Rack: Rack A1.1 aluminum
• Weight: 28.7 kg

Technical Specifications

Electronics

Motor

• Specialized 3.1
• Max Torque: 105 Nm
• Power: 810 W

Charger

• Specialized 4 A charger

Battery

• Integrated Specialized Turbo 840 Wh battery

Control and Interface

• Ergonomic Turbo remote control

Frame

Seat Clamp

• Aluminum alloy
• Diameter: 38.6 mm

Fork

• SR Suntour suspension fork
• Travel: 120 mm
• Travel for size S: 100 mm
• Stanchion diameter: 34 mm
• Thru-axle: 15 mm
• Wheel: 27.5"

Frame

• Vado 3 frame
• Comfort-optimized geometry
• Side-entry battery

Brakes

Front Brake

• Shimano BR-MT200
• Hydraulic disc brake
• 180 mm disc

Rear Brake

• Shimano BR-MT200
• Hydraulic disc brake
• 180 mm disc

Drivetrain

Crankset

• Length: 170 mm
• Chainline: 55 mm
• BCD: 110 mm
• Chainring: NW 40 teeth
• With chainguard

Chainring

• 40 teeth
• Chain retention technology

Chain Guard

• Chain guard kit
• Road model
• PA FIT HT H1.2

Chain

• KMC eGlide for Shimano CUES 11-speed

Rear Derailleur

• Shimano CUES 9-speed

Shift Levers

• Shimano CUES 9-speed
• Optical gear display

Cassette

• Shimano CUES 9-speed
• Ratios: 11-41 teeth

Wheels

Rims

• Front wheel: 29"
• Rear wheel: 27.5"
• Inner width: 30 mm
• 32 holes

Spokes

• DT Swiss Elemental

Inner Tubes

• Reinforced anti-puncture
• Size: 27.5 x 2.5/2.7
• Schrader valve
• Valve length: 60 mm

Rear Hub

• Shimano Freehub
• Center Lock disc

Front Hub

• Shimano
• Center Lock disc

Front Tire

• Specialized Hemisphere
• Anti-puncture protection
• All-terrain
• Reflect
• Size: 27.5 x 2.6"

Rear Tire

• Specialized Hemisphere
• Anti-puncture protection
• All-terrain
• Reflect
• Size: 27.5 x 2.6"

Handlebar and Components

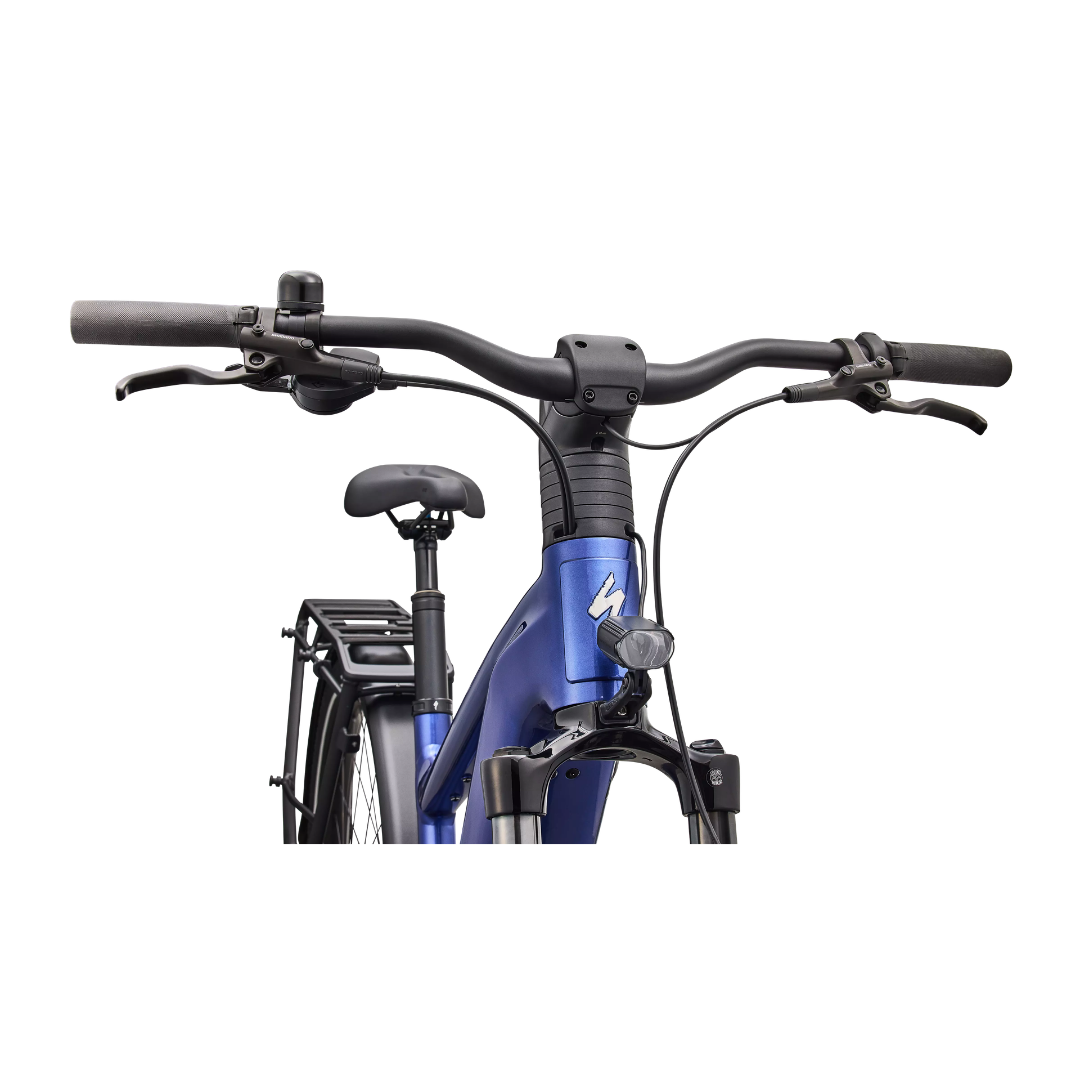

Handlebar

• Aluminum alloy
• Rise: 34.4 mm
• Diameter: 31.8 mm
• Backsweep: 13°
• Upsweep: 7.8°
• Handlebar end diameter: 22.2 mm
• Width: 690-730 mm

Saddle

• Body Geometry
• Rivo 2 Gel
• Width: 168 mm

Stem

• Stem with integrated color display
• USB-C port for smartphone charging
• Diameter: 31.8 mm

Grips

• Specialized Body Geometry

Seat and Seatpost

Saddle

• Bridge Sport
• Steel rails
• Width: 155 mm

Seatpost

• Suspension
• Travel: 40 mm
• Diameter: 34.9 mm

Accessories

Bell

• Bell

Fenders

• Sunny Wheel fender set
• Code: 0000215310
• B140-40 alloy profile
• For SR Suntour Mobie 34, XCR 34, and SRAM Reba forks
• Sandblasted black finish
• Tero 2

Headlight

• Lezyne
• Model: EBIKE POWER STVZO E500+
• Code: 1-E001-PRST-17C8MR-S
• Suntour Mobie mount
• Black components
• 4 x 1500 mm cable with Faston 110 Series male connectors (#A110015BS2)
• With reflector
• Matte black finish with glossy black logo

Kickstand

• Massload SPL-120
• ADC10 aluminum alloy
• PA6 nylon base
• Adjustable for 26" to 29" wheels

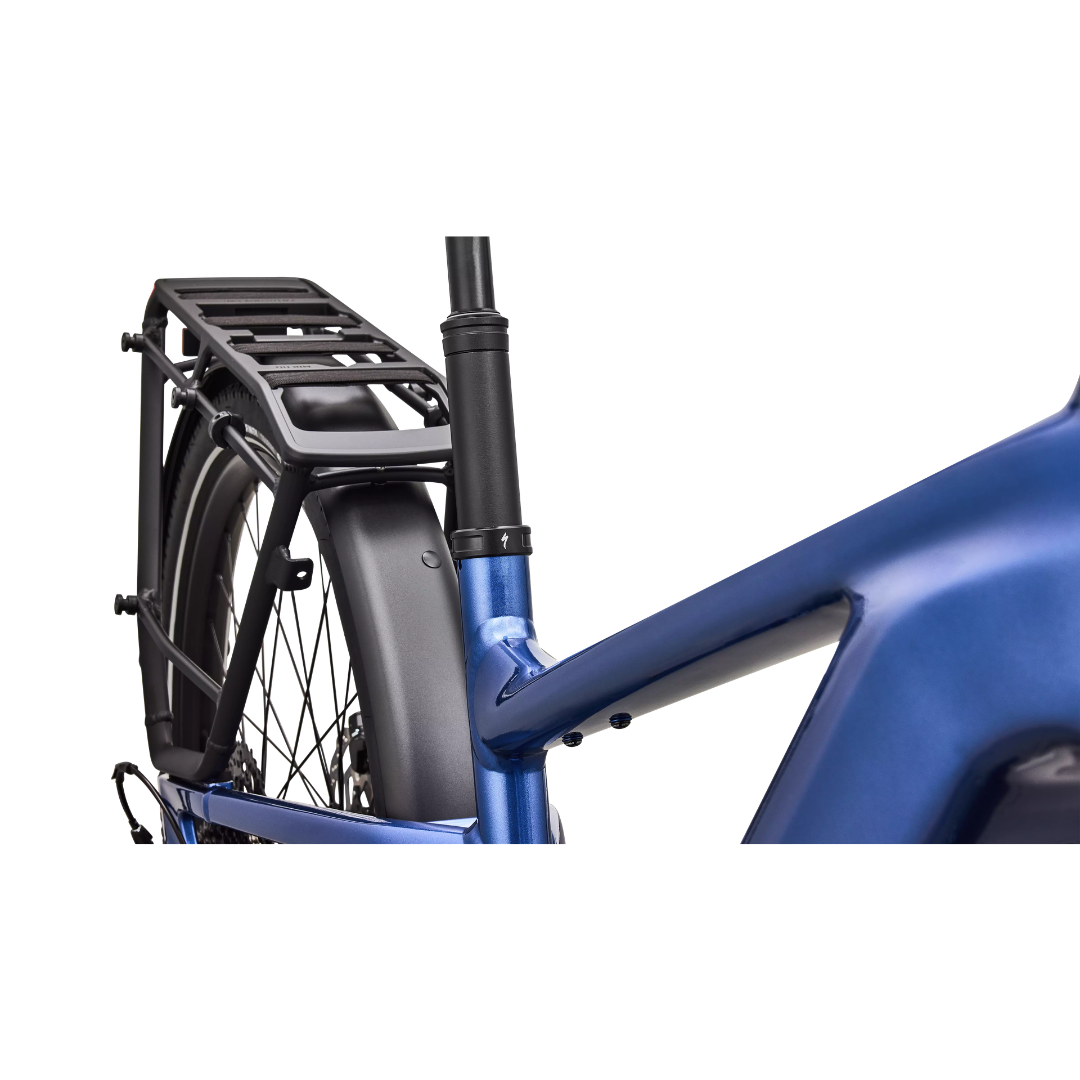

Rear Rack

• Rear rack kit
• Rack A1.1
• Aluminum

Taillight

• Spanninga SPGL XER Blade

Lock

• Pluto battery lock
• Mechanical
• BLO SPE IT4 XP OE;FS

SWAT

• MIK HD rear rack
• Capacity: 27.5 kg
• Integrated elastic straps
• Compatible with 10 kg MIK front rack
• Front rack not included

Pedals

• Turbo Pedals
• Anti-slip surface

Product Details

Identifier

• 279841

Certificate of Conformity

• As applicable, certified to UL 2849 (e-bike system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
• For information on standards and regulations related to lithium-ion batteries in New York City, please visit www.nyc.gov/fdny/batteries.

Weight

• Weight: 28.7 kg (63 lb, 4.4 oz)
• Size used for weighing: MD

Please Note

Technical specifications such as handlebar dimensions, gear ratios, and crank dimensions are all subject to change upon request based on availability.
Product images are for illustrative purposes only and may not exactly reflect the described features.

Why Choose the Specialized Turbo Vado 3 EVO 4.0

The Specialized Turbo Vado 3 EVO 4.0 is an e-bike designed to offer maximum versatility. The combination of the Specialized 3.1 motor with 810 W and 105 Nm, an 840 Wh battery, and a range of up to 150 km allows you to confidently tackle both daily commutes and longer journeys.

The suspension, 2.6" all-terrain tires, hydraulic disc brakes, and comfort-optimized geometry ensure a stable and comfortable ride even on uneven surfaces.

The technology complements the features with a customizable color display, USB-C port, Turbo System Lock, and integrated Apple Find My, while the included accessories make the bike ready to use from day one.

Specialized Turbo Vado 3 EVO 4.0: more power, more range, and more freedom to tackle any route.

Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly

A Complete Guide to Bike Sizes

Foreword: Not all bike sizes are the same

Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.

Bicycle adjustment margins

Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.

How to use size charts

We've created a simple guide to help you find the right bike size:

1. Check out our size charts for each bike type.
2. Learn more with specific tips to help you make the right choice.

Size Charts: Find Your Perfect Bike

Gravel and road bikes

Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.

For gravel, measurements may vary slightly due to different geometries, but remain similar.

Mountain bike

MTBs are measured in inches, based on the seat tube.

Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .

Children's bikes

The size depends on the size of the wheels, often associated with age:

What to do with half measures?

If you are between two sizes:

• Comfort : Choose the larger size.
• Performance : Go for the smaller size.

Final tips for choosing

1. Consult the manufacturer's instructions : Always check the brand's guidelines.
2. Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
3. Test the bike : If possible, test the model you intend to purchase.
