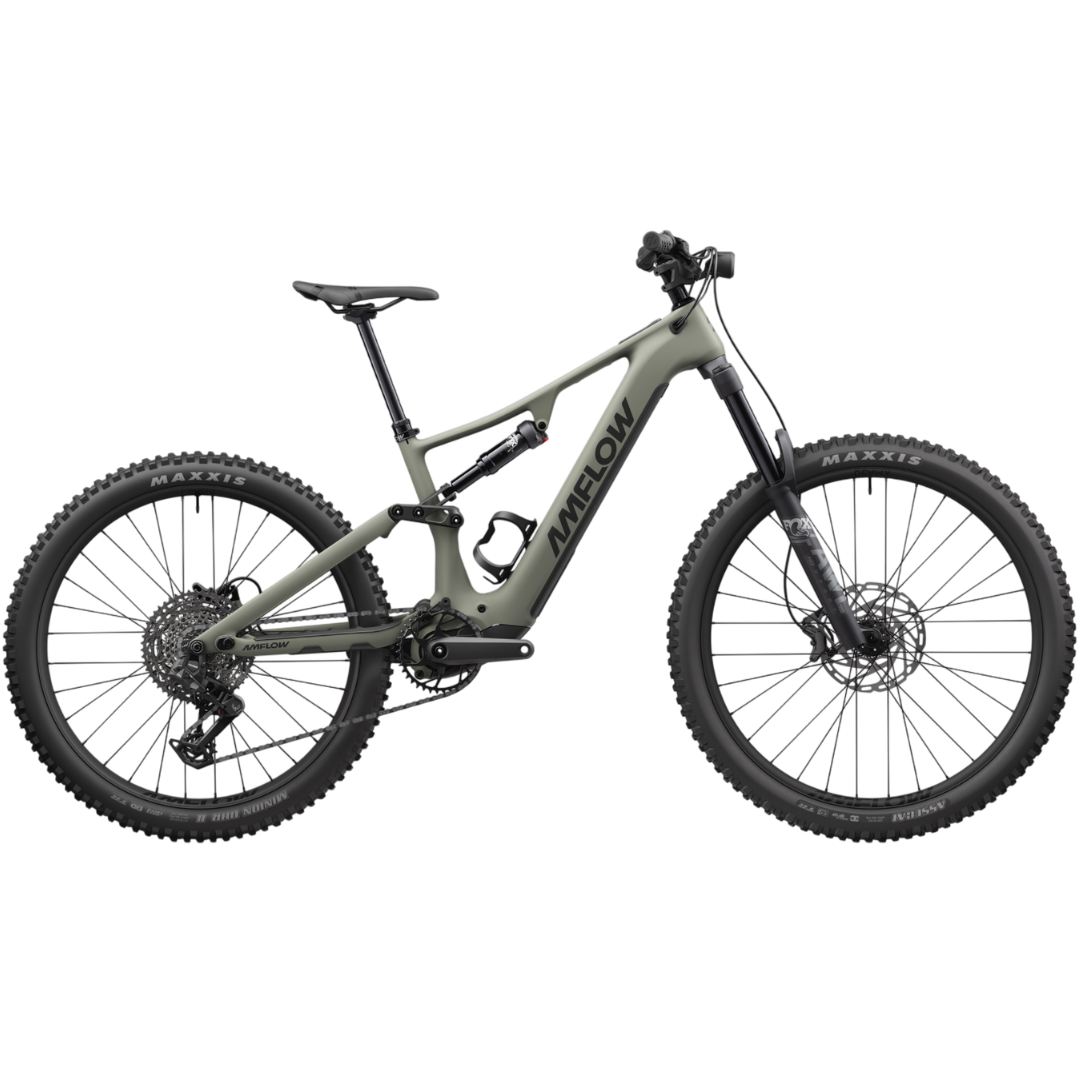

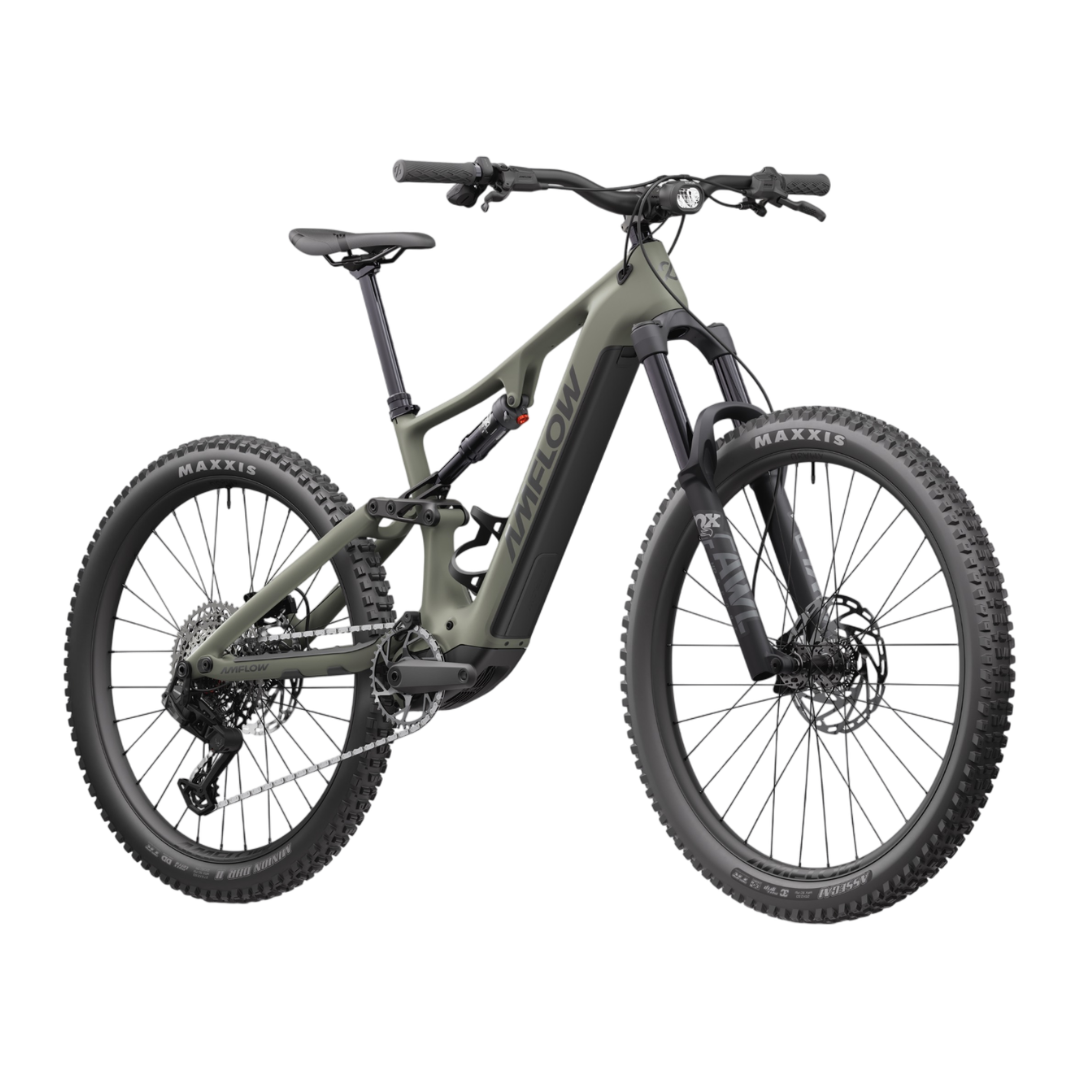

Amflow PR Carbon Electric Bicycle

The Amflow PR Carbon is a high-performance full-suspension e-MTB designed for riders seeking the ultimate in power, lightness, and customization. With its ultralight carbon fiber frame, powerful Avinox system, and SRAM Eagle Transmission electronic drivetrain, it offers an advanced riding experience on the most demanding enduro, all-mountain, and trail routes.

Featuring a removable 800 Wh battery, fully adjustable geometry, and premium FOX and SRAM components, the Amflow PR Carbon is ready to tackle long days in the mountains with high performance and maximum reliability.

Avinox Power: Uncompromising Performance

At the heart of the bike is the new Avinox M2 e-bike system, capable of delivering a nominal torque of 110 Nm and a maximum torque of 125 Nm, ensuring immediate acceleration and powerful assistance even on the most technical climbs.

The motor is paired with a 2-inch Avinox OLED display and wireless left and right controls for intuitive and modern management of all bike functions.

Removable 800 Wh Battery

The 800 Wh Avinox battery offers extended range for long excursions and mountain rides without worry. The quick-release system allows for convenient charging and quick battery replacement when needed.

The 168 W (4A) Avinox charger ensures efficient and reliable charging.

Carbon Frame with 40 Geometry Configurations

Made from carbon fiber, the Amflow PR Carbon frame combines lightness, stiffness, and strength to offer precise handling and absolute control.

The geometry is fully customizable thanks to:

• 5 head angle settings
• 2 bottom bracket height settings
• 4 chainstay length settings

These adjustments allow for up to 40 geometric configurations, adapting the bike to different riding styles and terrain types.

FOX Suspension for Maximum Control

The Amflow PR Carbon is equipped with FOX suspension developed to ensure sensitivity, support, and control even on the most challenging trails.

Fork

• FOX AWL HD Sport
• 160 mm travel
• RAIL 2.0 damper
• Sweep and LSR adjustment
• 15x110 mm thru-axle
• 44 mm offset

Rear Shock

• FOX Float Rhythm
• Amflow custom tune
• LSR adjustment
• 210x55 mm dimensions
• Air technology

SRAM Eagle Transmission Electronic Drivetrain

The SRAM Eagle Transmission groupset offers precision, robustness, and reliability at the highest levels.

Thanks to integration with the motor system, the SmoothShift function is available, allowing gear changes even without pedaling.

Drivetrain Components

• SRAM S1000 Eagle Transmission derailleur
• SRAM AXS Pod controller
• SRAM XS-1270 Eagle Transmission 10-52T cassette
• SRAM Eagle 70 Transmission Flattop chain
• SRAM Eagle Transmission 38T chainring for Avinox
• Avinox SL crankarms
  • M/L: 155 mm
  • XL/XXL: 160 mm

Powerful and Modulable Braking

The braking system consists of custom Amflow Tektro hydraulic brakes with four-piston calipers and 203 mm rotors.

Brakes

• Tektro TKD173 hydraulic brakes
• 4-piston calipers
• Tektro rotors with magnet
• 203 mm disc diameter
• 2.3 mm disc thickness

Mullet Configuration for Maximum Agility

The mullet configuration combines the stability of a 29" front wheel with the agility of a 27.5" rear wheel.

Amflow XMA-30 Wheels

Front

• 29" alloy rim
• 30 mm internal width
• 32 holes
• Tubeless Ready

Rear

• 27.5" alloy rim
• 30 mm internal width
• 32 holes
• Tubeless Ready

Hubs

Front

• Two sealed bearings
• 15x110 mm thru-axle
• 6-bolt disc mount

Rear

• Four sealed bearings
• 12x148 mm thru-axle
• 6-bolt disc mount
• 4-pawl 36T system
• HG freehub

Spokes

• SAPIM E-Light

High-Performance Maxxis Tires

Front

• Maxxis Assegai
• 29 x 2.50
• 3C MaxxGrip
• EXO+
• Tubeless Ready

Rear

• Maxxis Minion DHR II
• 27.5 x 2.50
• MaxxTerra
• Double Down (DD)
• Tubeless Ready

Cockpit Components

Handlebar

• Amflow Enduro alloy
• 800 mm width
• 40 mm rise
• 35 mm diameter
• 5° upsweep
• 9° backsweep

Stem

• Amflow MTB
• 35 mm length
• 35 mm clamp diameter

Grips

• Amflow Enduro Grip lock-on

Saddle

• Amflow Mountain

Dropper Post

Adjustable travel with dedicated spacers:

• Frame M: 190 mm
• Frame L / XL: 210 mm
• Frame XXL: 230 mm

Apple Find My Tracking

The Amflow PR Carbon integrates support for the Apple Find My network, allowing you to monitor the bicycle's location and battery level directly from the Apple app.

Package Contents

• Amflow PR Carbon bicycle
• Avinox RS800 800 Wh battery
• Avinox 168 W charger
• AC power cable
• Complete road safety kit
• Front and rear lights
• Bell
• Reflectors
• Mirror mount
• Pedals
• Suspension pump
• Torque wrench
• USB-C cable
• Frame protective films
• Geometry adjustment kit
• Rear dropout flip-chip kit
• Battery key set and Key Card
• Dropper post spacers
• Amflow bottle cage
• Quick Guide

Technical Specifications

• Frame: Amflow PR Carbon
• Color: Moss Green
• Battery: Avinox 800 Wh removable
• Motor: Avinox M2
• Nominal Torque: 110 Nm
• Maximum Torque: 125 Nm
• Display: Avinox 2" OLED
• Fork Travel: 160 mm
• Drivetrain: SRAM Eagle Transmission 12-speed
• Wheels: Mullet 29"/27.5"
• Brakes: Tektro TKD173 4-piston
• Rear Wheel Compatibility: 27.5" and 29"

Please Note

Technical specifications may vary without notice based on component availability.
Product images are for illustrative purposes only and may not exactly reflect the described features.

The Amflow PR Carbon represents a new generation of high-performance e-MTBs, combining power, lightness, and advanced technology to offer maximum fun and control on every trail.

Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly

A Complete Guide to Bike Sizes

Foreword: Not all bike sizes are the same

Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.

Bicycle adjustment margins

Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.

How to use size charts

We've created a simple guide to help you find the right bike size:

1. Check out our size charts for each bike type.
2. Learn more with specific tips to help you make the right choice.

Size Charts: Find Your Perfect Bike

Gravel and road bikes

Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.

For gravel, measurements may vary slightly due to different geometries, but remain similar.

Mountain bike

MTBs are measured in inches, based on the seat tube.

Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .

Children's bikes

The size depends on the size of the wheels, often associated with age:

What to do with half measures?

If you are between two sizes:

• Comfort : Choose the larger size.
• Performance : Go for the smaller size.

Final tips for choosing

1. Consult the manufacturer's instructions : Always check the brand's guidelines.
2. Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
3. Test the bike : If possible, test the model you intend to purchase.
