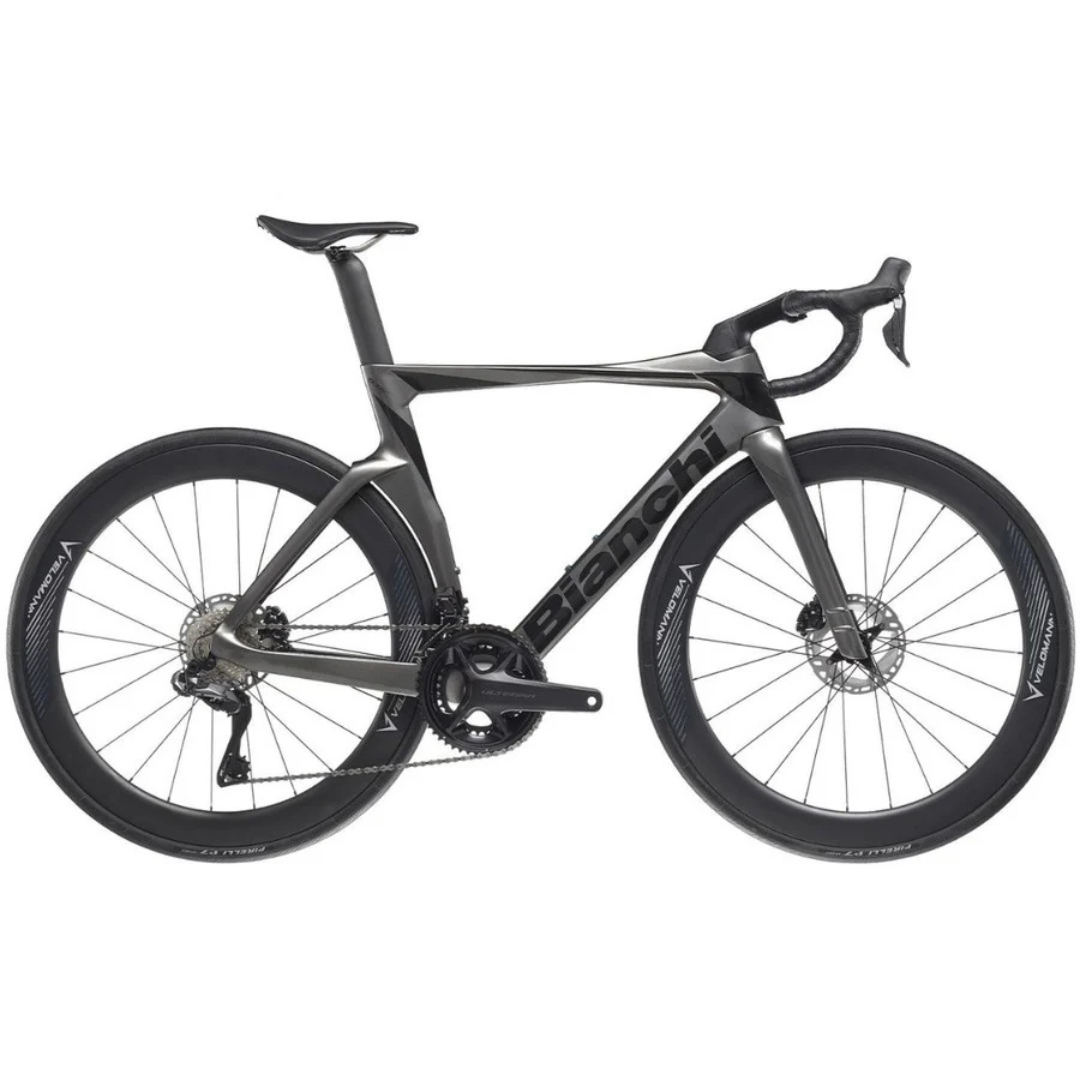

Bianchi Oltre Comp Ultegra Di2 12v Bicycle
The Bianchi Oltre Comp Ultegra Di2 12v represents the perfect entry into Bianchi's new aero range, designed to meet the needs of a wide audience of cyclists seeking high performance and the pure thrill of speed. Thanks to the heritage of the superior Pro and RC models, this bike offers an extraordinary mix of aerodynamics, lightness, and precision.
Technical Specifications DEMO
New bicycles, still packaged.
Some models have slight paint defects, while others are free of imperfections.
If you have any doubts, contact us and we will send you the detailed photos, happy shopping.
Chassis
Frame Kit: Oltre Comp in carbon, compatible exclusively with electronic transmission, headset series 1.5"-1.5", BB-PressFit 86.5x41mm, flat mount brake caliper support, thru axle 12x142mm. Available in sizes: 47-50-53-55-57-59cm.
Fork: Full Carbon aero, for disc brakes, with integrated 1.5" head, flat mount caliper support, thru axle 12x100mm.
Steering series: FSA TH-073E ACB 1.5, dimensions 51.8x40x8.
Transmission
Commands: Shimano Ultegra Di2, hydraulic disc brake, ST-R8170, BR-R8170, compatible with 160mm rotors.
Change: Shimano Ultegra Di2 12 speed, RD-R8150.
Front Derailleur: Shimano Ultegra Di2 12 speed, FD-R8150.
-
Crankset: Shimano Ultegra 12 speed, FC-R8100, 52x36T.
Central Movement: Shimano SM-BB72-41B, Press Fit, with sealed bearings.
Chain: Shimano Ultegra 12 speed, CN-M8100.
Freewheel: Shimano Ultegra CS-R8100, gears: 11-12-13-14-15-16-17-19-21-24-27-30T.
Brakes
Type: Shimano BR-R8170, hydraulic disc brake included in the controls.
Discs: Shimano Centerlock with Ice Tech technology, diameter 160mm front and rear.
Wheels
Wheels: Velomann Plutonium, aerodynamic profile of 50mm, 700x21c, 24 holes, HG body.
Tires: Vittoria Rubino 28-622 Full Black G2.0, with graphene + silica compound, 100 TPI.
Handlebar
-
Handlebar attack: Velomann Aero in aluminum, Oversize, 1.1/8".
-
Drop: Velomann Aero Compact in aluminum, diameter 31.8mm, reach 74mm, drop 116mm, with internal cable routing.
Handlebar tape/grips: Bianchi Arrow Premium, thickness 2.5mm, color black.
Seatpost
-
Seatpost: Beyond Full Carbon Aero, special size, offset 20mm.
-
Saddle: Velomann Mitora139, open flow design, rail in AISI steel 7x7mm, shell in carbon-reinforced nylon.
Please note
Technical specifications may change without notice based on component availability.
The product images are purely indicative and may not exactly reflect the described features.
The Bianchi Oltre Comp Ultegra Di2 12v is the ideal choice for those seeking an uncompromising aerodynamic riding experience, with high-level components and cutting-edge design. Perfect for speed enthusiasts who do not want to give up comfort and precision.
Do you want to receive your bike ready for use? Don't forget to add the bike assembly service at the time of purchase! Discover all the details here: Francesconi bike assembly
A Complete Guide to Bike Sizes
Foreword: Not all bike sizes are the same
Each type of bike has a specific frame and often uses a different size scale. For example, a road bike with a 54cm frame might be considered a medium size by one brand, but a large by another.
Bicycle adjustment margins
Some types of bikes, like gravel bikes, offer a wide range of adjustments, adapting to different body types. Other models, however, have limitations in this regard. This is an important aspect to consider.
How to use size charts
We've created a simple guide to help you find the right bike size:
- Check out our size charts for each bike type.
- Learn more with specific tips to help you make the right choice.
Size Charts: Find Your Perfect Bike
Gravel and road bikes
Sizes are based on the length of the top tube (in cm), which determines the reach of the bike.
| Cut
|
Recommended height
|
Horizontal tube length
|
| XS |
Up to 157 cm |
48-50 cm |
| S |
157-167 cm |
50-53 cm |
| M |
168-178 cm |
53-56 cm |
| THE |
178-185 cm |
56-58 cm |
| XL |
Over 185cm |
58-62 cm |
For gravel, measurements may vary slightly due to different geometries, but remain similar.
Mountain bike
MTBs are measured in inches, based on the seat tube.
| Cut
|
Recommended height
|
Size (in inches)
|
| XS |
Up to 157 cm |
14"-16" |
| S |
157-167 cm |
15"-17" |
| M |
168-178 cm |
16"-19" |
| THE |
178-185 cm |
18"-20" |
| XL |
Over 185cm |
20"-23" |
Sizes also vary depending on the type of MTB: full-suspension , hardtail or fat bike .
Children's bikes
The size depends on the size of the wheels, often associated with age:
| Age
|
Wheel Size
|
| 1-3 years |
12" |
| 2-4 years |
14" |
| 4-6 years |
16" |
| 5-8 years |
20" |
| 8-10 years |
24" |
| Over 10 years |
26"/27.5" |
What to do with half measures?
If you are between two sizes:
-
Comfort : Choose the larger size.
-
Performance : Go for the smaller size.
Final tips for choosing
-
Consult the manufacturer's instructions : Always check the brand's guidelines.
-
Ask an expert : a specialized workshop can help you choose based on your height, ideal reach and goals.
-
Test the bike : If possible, test the model you intend to purchase.
